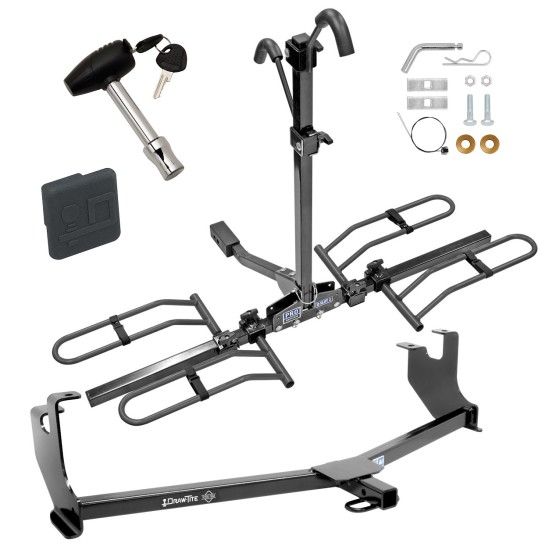

Trailer Tow Hitch For 14‑21 Volkswagen Beetle Except R‑Line GSR Platform Style 2 Bike Rack w/ Hitch Lock and Cover
Model: 24922 63134 580407 2211Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2021 Volkswagen, Beetle, Except R-Line & GSR
Trailer Hitch Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 91 20 21 2014 2015 2016 2017 2018 2019 2020 2021
$410 09 $657.25 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$657.25 $410 09
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $102.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24922 63134 580407 2211
- Includes: Class 1 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | No |
Gross Towing Weight | 2,000 lbs. |
Hitch Class | I |
Material | Steel |
Maximum Tongue Weight | 200 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2021 Volkswagen, Beetle, Except R-Line & GSR
Trailer Hitch Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 91 20 21 2014 2015 2016 2017 2018 2019 2020 2021
Get Expert Help
Trailer Tow Hitch For 14-21 Volkswagen Beetle Except R-Line GSR Platform Style 2 Bike Rack w/ Hitch Lock and Cover Install Notes
Installation Instructions for Volkswagen Beetle & Beetle Convertible
(Excludes R-Line and GSR Models)
Part Numbers:
- 24922
- 60354
- 77309
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 18mm, 11/16"
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Existing Bolts:
- Remove the existing M12 bolts from the driver and passenger-side frame rails. Retain these bolts for use in Step 4.
-
Install Carriage Bolts and Spacers:
- Use the reverse pullwire method to insert the 7/16" carriage bolts and spacers into the frame rails as shown in Figure 2. Leave the pullwires attached.
-
Position Hitch:
- Raise the hitch into position, feeding the pullwires through the rearward holes on the hitch.
-
Reinstall Existing Bolts:
- Use the M12 bolts removed in Step 1 to attach the hitch through the forward holes.
-
Secure Fasteners:
- Remove the pullwires and attach the 7/16" conical washers and hex nuts to the carriage bolts.
-
Tighten All Fasteners:
- Torque all M12 CL10.9 fasteners to 92 Lb.-Ft. (120 N*M).
- Torque all 7/16"-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M).
Hardware List:
- (2) Carriage Bolts: 7/16"-14 x 2.00" GR5
- (2) Spacers: 0.25" x 1.00" x 3.00"
- (2) Conical Washers: 7/16"
- (2) Hex Nuts: 7/16"-14
- (2) Pullwires: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
