Trailer Tow Hitch For 15-18 Volkswagen Jetta 4 Dr. Sedan Except Hybrid TDI Platform Style 2 Bike Rack w/ Hitch Lock and Cover

Trailer Tow Hitch For 15‑18 Volkswagen Jetta 4 Dr. Sedan Except Hybrid TDI Platform Style 2 Bike Rack w/ Hitch Lock and Cover

Model: 24926 63134 580407 2211

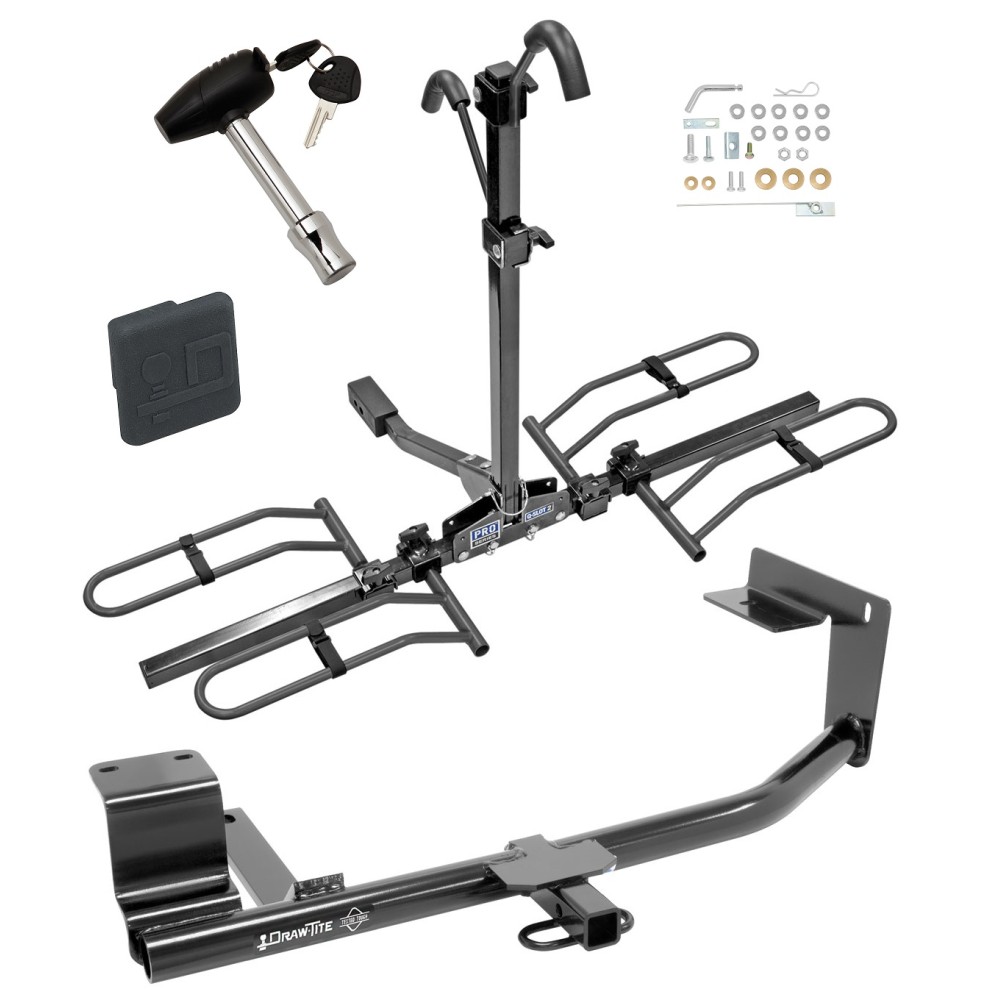

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2015 - 2018 Volkswagen, Jetta, 4 Dr. Sedan, Except Hybrid & TDI

Trailer Hitch Specs:

Part Number	24926
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Rubber Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	35 lbs.
Warranty	1 Year Warranty
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 15 16 17 18 2015 2016 2017 2018

See Full Description

$430 ⁵⁸ $689.31 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
Pre-Order

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$689.31 $430 ⁵⁸

Pay in 4 interest-free installments of $107.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $107.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 24926 63134 580407 2211
Includes: Class 1 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover

Compatibility Chart

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	No
Drilling Required	No
Gross Towing Weight	2,000 lbs.
Hitch Class	I
Material	Steel
Maximum Tongue Weight	200 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Round Tube

Be the first to ask a question.

Description

Part Number	24926
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Rubber Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	35 lbs.
Warranty	1 Year Warranty
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Tags: 24926 , 63134 , 580407 , 2211 , Draw-Tite , Trailer , Tow , Hitch , 15-18 , Volkswagen , Jetta , 4 , Dr. , Sedan , Except , Hybrid , TDI , Platform , Style , 2 , Bike , Rack , Hitch , Lock , and , Cover , 15 , 16 , 17 , 18 , 2015 , 2016 , 2017 , 2018

Get Expert Help

Trailer Tow Hitch For 15-18 Volkswagen Jetta 4 Dr. Sedan Except Hybrid TDI Platform Style 2 Bike Rack w/ Hitch Lock and Cover Install Notes

Installation Instructions for Volkswagen Jetta

Part Numbers:

24926
60364
77312

Wiring Access Location:

PC3, PC4

Tools Required:

Pull Wire: 7/16" (provided)
Sealant
Wrenches: Torx® 25, 10mm, 13mm, 17mm, 19mm, 11/16", 3/4"

Specifications:

Max Gross Trailer Weight: 2,000 lb. (908 kg)
Max Tongue Weight: 200 lb. (90.8 kg)
Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

Remove Spare Tire:
- Remove the spare tire from the trunk's spare tire carrier.
- Detach the forward rubber isolator from the trunk pan and install the fasteners (Item 10 & 11) through the trunk pan. Return the plug to the vehicle owner.
Remove Plastic Fascia Covering:
- Detach the plastic fascia underneath the passenger side by removing three (3) Torx 25 screws and two (2) plastic hex nuts. Return the fascia to the vehicle owner.
Lower Exhaust:
- Remove the two (2) bolts from the exhaust hanger bracket and detach the forward rubber isolator. Support the exhaust as needed. Return the bolts to the owner.
Lower Fuel Vapor Canister:
- Lower the fuel vapor canister on the passenger side, if present.
Install Passenger-Side Fasteners:
- Use the pull wire to feed a 7/16" carriage bolt and spacer through the access slot in the passenger-side frame rail. Leave the pull wire attached. Bend the handle nut and insert it into the frame rail over the center hole location.
Position Hitch:
- Raise the hitch into position, pushing the 7/16" carriage bolt into the frame rail. Attach the spacer (Item 14) to the wire and pull it through the passenger-side bracket. Secure with fasteners. Loosely install the M12 bolt into the handle nut.
Driver-Side Installation:
- Rotate the exhaust hanger bracket forward to make space, then raise the hitch into place on the driver’s side. Reposition the exhaust bracket and attach using an M8 bolt and 3/8” conical washer through the hanger bracket slots.
Seal Trunk Pan:
- Install the 1/2"-13 hex nut and spacer onto Items 10 & 11 in the trunk pan. Use sealant to prevent exhaust fumes and water intrusion. Seal any existing drain holes in the trunk pan.
Tighten All Fasteners:
- Torque all fasteners to the specifications below:
  - M8 CL8.8 fasteners: 20 Lb.-Ft. (27 N*M)
  - M12 CL8.8 fasteners: 70 Lb.-Ft. (95 N*M)
  - 7/16”-14 GR5 fasteners: 50 Lb.-Ft. (68 N*M)
  - 1/2”-13 GR5 fasteners: 75 Lb.-Ft. (102 N*M)
Reinstall Components:
- Reattach the fuel vapor canister, using 5/16” flat washers for spacing if needed, and reuse original M6 bolts.
- Reinstall the exhaust to the forward isolator.
- Replace the spare tire.

Hardware List:

(1) Hex Bolt: M12 x 1.25 x 30mm CL8.8
(1) Conical Washer: 1/2”
(1) Handle Nut: M12
(1) Carriage Bolt: 7/16"-14 x 2.00” GR5
(1) Spacer: 0.250” x 1.00” x 3.00”
(1) Conical Washer: 7/16”
(1) Hex Nut: 7/16"-14
(2) Hex Bolts: M8 x 1.25 x 30mm CL8.8
(2) Conical Washers: 3/8”
(1) Carriage Bolt: 1/2"-13 x 2.00” GR5
(1) Spacer: Egg-Shaped (not in kit)
(1) Hex Nut: 1/2” (not in kit)
(9) Flat Washers: 5/16”

Safety Notes:

Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
Plug all unused holes in the trunk pan to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions and wear eye protection while working under the vehicle.
Do not use a torch to cut access or attachment holes.

Drawbar:

Drawbar Kit: 3593
Important: The drawbar must be used in the rise position only.

Compliance:

This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety requirements of the State of New York.

Additional Notes:

Regularly check the hitch to ensure all fasteners remain tight.
