Trailer Tow Hitch For 15-22 Chevy Colorado GMC Canyon Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Trailer Tow Hitch For 15‑22 Chevy Colorado GMC Canyon Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Model: 75948 63134 63100

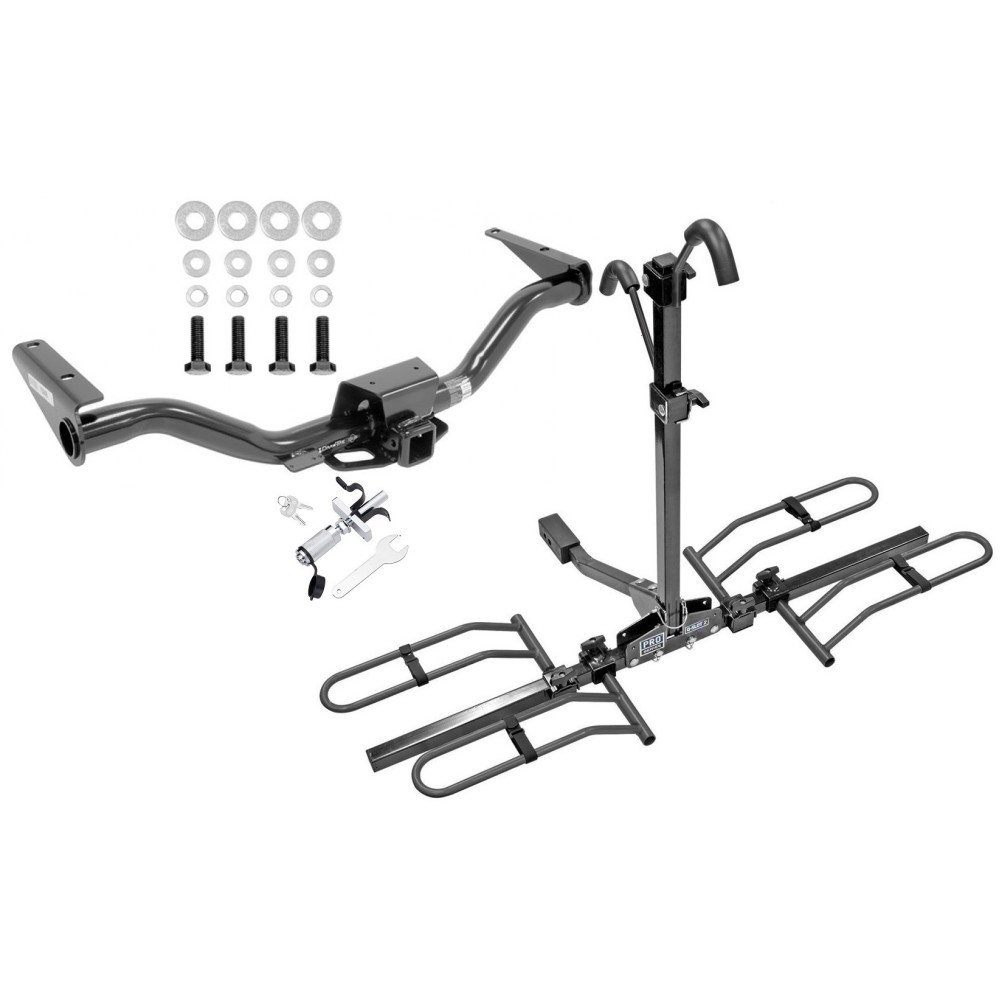

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2015 - 2022 Chevrolet, Colorado, All Styles
2015 - 2022 GMC, Canyon, All Styles

Trailer Hitch Specs:

Part Number	75948
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	8,000 lbs
Max Tongue Weight	800/800 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 15 16 17 18 19 20 21 22 2015 2016 2017 2018 2019 2020 2021 2022

See Full Description

$430 ³⁷ $691.25 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
Pre-Order

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$691.25 $430 ³⁷

Pay in 4 interest-free installments of $107.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $107.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75948 63134 63100
Includes: Class 4 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	8,000 lbs.
Hitch Class	IV
Material	Steel
Maximum Tongue Weight	800 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	800 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Be the first to ask a question.

Description

Part Number	75948
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	8,000 lbs
Max Tongue Weight	800/800 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: Trailer Tow Hitch For 15-22 Chevy Colorado GMC Canyon Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock , 75948 63134 63100 , Colorado

Get Expert Help

Trailer Tow Hitch For 15-22 Chevy Colorado GMC Canyon Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes

Installation Instructions for Chevrolet Colorado and GMC Canyon

Part Numbers:

75948
87675
44757

Wiring Access Location:

Tools Required:

Tape
Wrenches: 10mm, 13mm, 21mm, 22mm
Drill Bits: None

Step-by-Step Instructions:

Remove Impact Structure and Bumper:
- Remove the vehicle's impact structure and bumper by loosening and removing eight (8) bolts.
- Remove two (2) bolts securing the spare tire cradle. Keep these bolts for reinstallation.
- Disconnect electrical plugs and set aside the impact structure to return to the owner.
Prepare Frame Rails:
- Tape flat washers (item 4) to the frame rails on both sides.
Install Hitch:
- Raise the hitch into position and secure it using the provided fasteners as shown in Figure 2.
Reinstall Spare Tire Cradle:
- Reattach the spare tire cradle using the original fasteners.
Reinstall Bumper:
- Reattach the bumper using the original side fasteners.
Torque All Fasteners:
- Tighten all M14 CL10.9 fasteners to 100 lb-ft (136 N*m) using a torque wrench.
Reinstall Spare Tire:
- Raise the spare tire back into position if required.
Return Impact Structure:
- Return the removed impact structure to the vehicle owner.

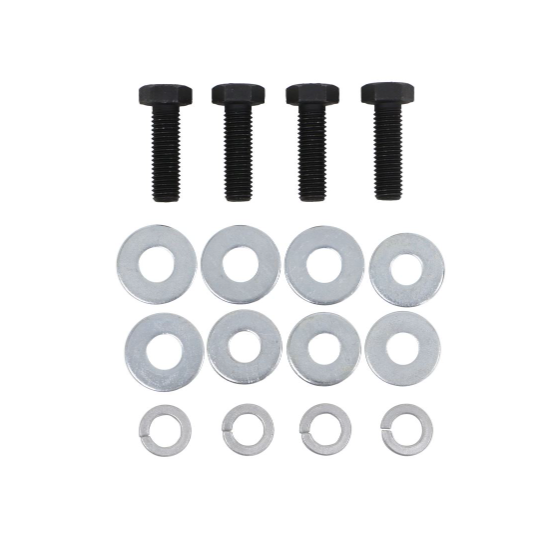

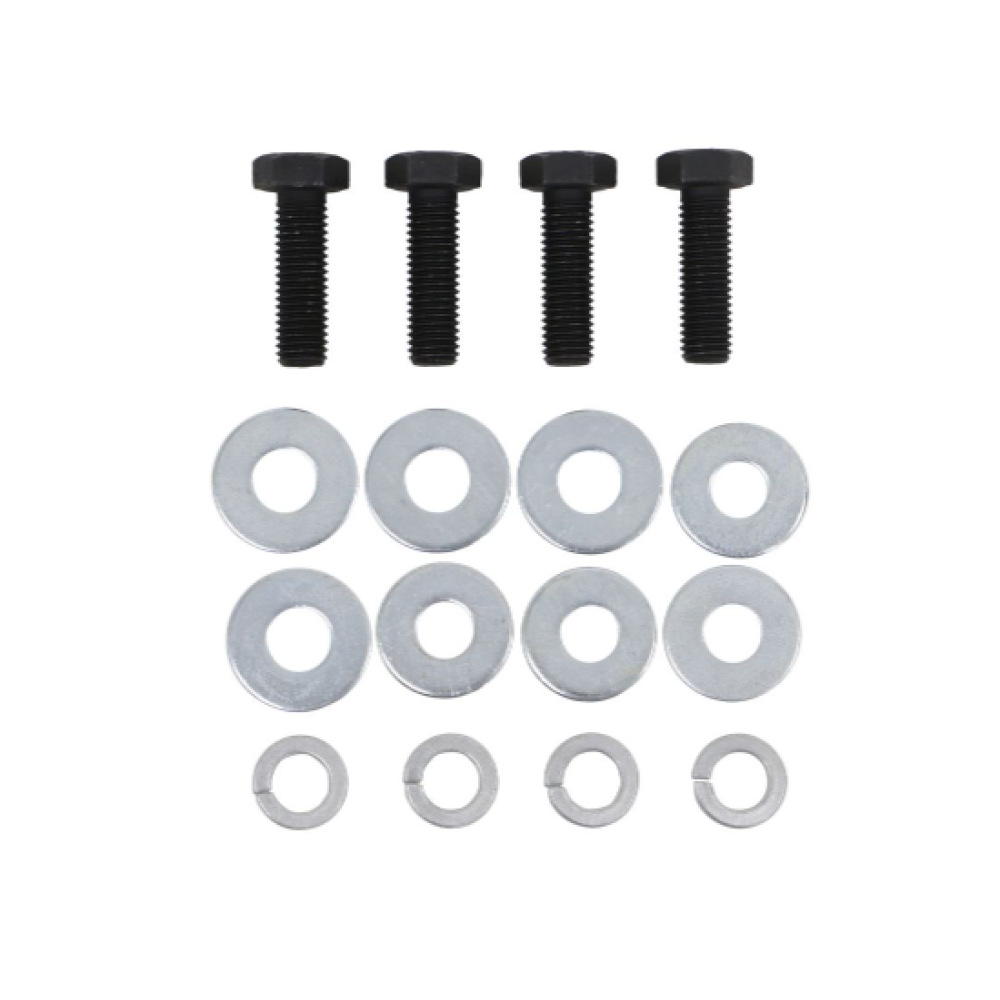

Hardware List:

Qty (4): Bolt – M14 x 2.00 x 45mm CL10.9
Qty (4): Lock Washer – 9/16"
Qty (4): Flat Washer – 9/16"
Qty (4): Flat Washer – 1/2"

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath the vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 8,000 lbs (3,632 kg)
- Max Tongue Weight: 800 lbs (363 kg)
Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 6,000 lbs (2,723 kg)
- Max Tongue Weight: 800 lbs (363 kg)

Manufacturer Notes:

This hitch cannot be used with the step bumper after installation.
Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
