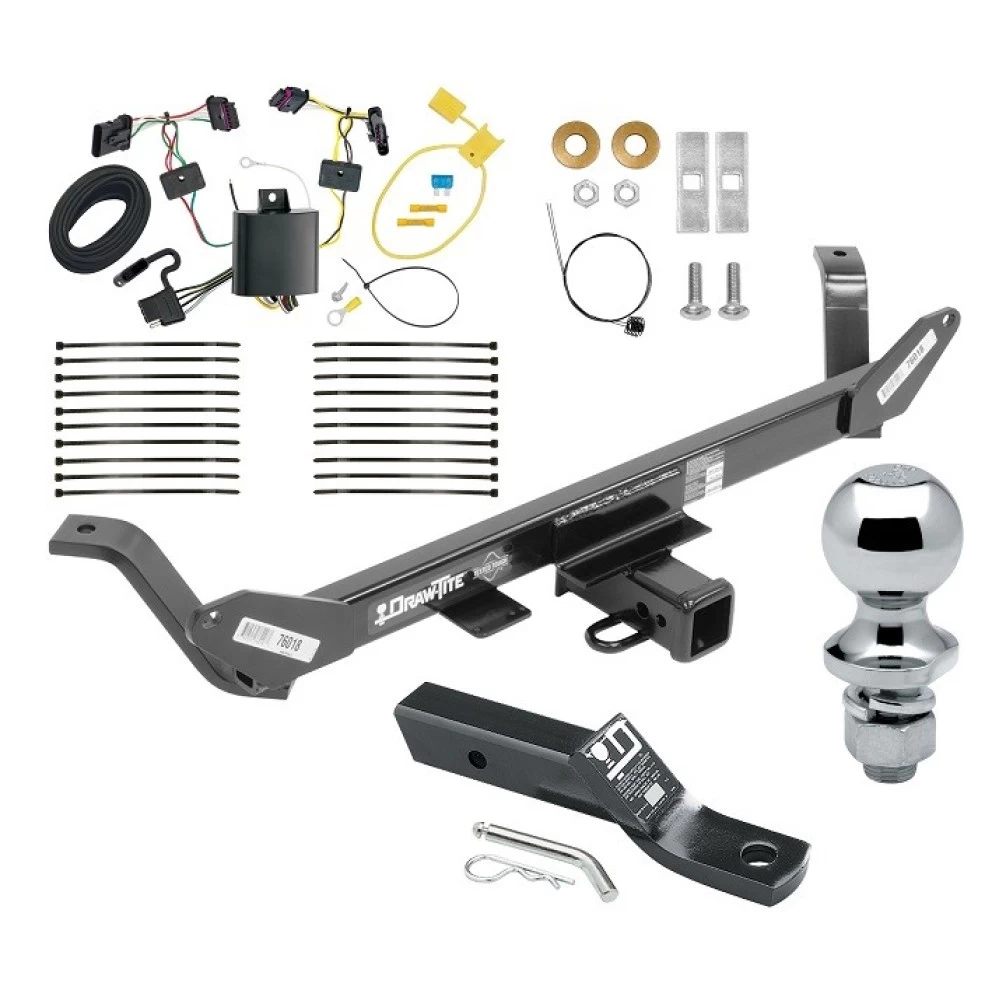

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 16-17 BMW X1 Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for BMW X1 (2016-Current)
Part Numbers:
- 76018
- 84018
- CQT76018
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 8mm, 10mm, 18mm, 3/4”
- Flat Head Screwdriver
- Tin Snips
- Tape Measure
- Marker
- Drill with 1” Holesaw
- Exhaust Removal Pliers
- 6” Socket Extension
Wiring Access Location:
- Not Applicable
Step-by-Step Instructions:
-
Remove Lower Fascia:
- Use an 8mm socket to remove (8) screws and (4) plastic expanding fasteners.
- Gently unclip and pull the fascia off, then set it aside for reinstallation later.
-
Lower Exhaust:
- Use a 10mm socket to remove the nuts from both rear exhaust hangers.
- Pry off one rubber exhaust hanger near the transaxle using exhaust removal pliers. Spray with soapy water for ease.
-
Remove Heat Shield:
- Use a 10mm socket to remove the (4) nuts securing the heat shield on the upper portion.
-
Trim Heat Shield:
- Measure and draw two lines on the heat shield:
- From the lower portion, measure 1/2” inward from the outermost screw holes.
- From the upper portion, draw a line 1/2” from the top.
- Use tin snips to cut along the lines.
- Measure and draw two lines on the heat shield:
-
Remove Nuts from Lower Bumper Studs:
- Use an 18mm socket to remove one nut from the lower bumper stud on each side.
-
Loosen Sensor Bar:
- Use a 10mm socket to loosen (2) nuts holding the sensor bar to the vehicle. Do not fully remove the sensor bar; loosening it will ease hitch installation.
-
Drill Holes:
- Raise the hitch into position and onto the lower bumper studs.
- Tighten the nuts to hold the hitch in place, then mark the locations of forward attachment holes using the hitch as a template.
- Lower the hitch and drill a 1” hole for each forward attachment point using a holesaw.
-
Fishwire Bolts:
- Using the reverse fishwire method, insert the carriage bolts and spacer blocks into the drilled holes.
- Leave the pull wires attached.
-
Install Hitch:
- Raise the hitch into position over the lower bumper studs.
- Guide the pull wire ends through the forward attachment holes.
- Install (2) nuts onto the lower bumper studs and remove the pull wires.
- Secure the carriage bolts with conical washers (teeth side toward hitch) and 1/2” hex nuts.
-
Tighten Fasteners:
- Torque all hitch fasteners to 75 lb-ft (102 N·m).
-
Reinstall Components:
- Reinstall all exhaust hangers, tighten the sensor bar, reinstall the trimmed heat shield, and reattach the lower fascia.
Hardware List:
- (2) 1/2”-13 x 1.75” Grade 5 Carriage Bolts
- (2) 1/2” Conical Washers
- (2) 1/4” x 1” x 3” Spacer Blocks
- (2) 1/2”-13 Grade 5 Hex Nuts
- (2) 1/2” Pull Wires
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 40 minutes for a professional installer.
- Contact a professional installer if you are uncomfortable performing the installation on your own.
Installation Instructions for T-One® T-Connector for BMW X1
Part Numbers:
- 118717
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Remove Taillights:
- Open the rear tailgate to access the bolts holding the taillights in place.
- On both the driver and passenger sides, remove two 10mm nuts from the taillight pocket.
- Carefully pull the taillights away from the vehicle, avoiding damage to alignment pins.
-
Disconnect the Wiring Harness:
- Disconnect the vehicle wiring harness from both taillight sockets.
- Ensure all connector surfaces are clean and free of dirt.
-
Mount the Black Box Module:
- Determine a suitable mounting point behind the rear bumper fascia on the driver’s side.
- Use the provided double-sided tape to mount the black box.
- Ensure the trailer’s wire harness has adequate length to reach this point.
Warning: Mount the module with the epoxy side facing down to prevent water buildup.
-
Connect the Driver-Side T-Connector:
- Fish the T-Connector end with yellow wires up between the bumper and the vehicle body into the taillight pocket.
- Plug the T-Connector with yellow wire between the mating plugs on the driver’s side taillight socket and wiring harness.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire and the 4-flat connector underneath the bumper.
- Guide the T-Connector end with the green wire up through the opening on the passenger side.
- Plug it into the taillight socket, repeating the process from Step 4.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify the area behind any surface before drilling to prevent damage or injury.
-
Connect the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box.
- Attach the provided black 12-gauge wire and route it along the exterior frame or follow the existing wiring to the engine compartment.
- Avoid areas that may pinch or damage the wire.
-
Connect to the Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Attach the ring terminal from the fuse holder to the Positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder and test the installation with a test light or trailer.
-
Reassemble the Vehicle:
- Reinstall the taillight assemblies and any other removed components, ensuring wires are not pinched or damaged.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the T-Connector harness.
- Avoid areas that may pinch, cut, or melt the wire.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in a suitable location when not in use.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
