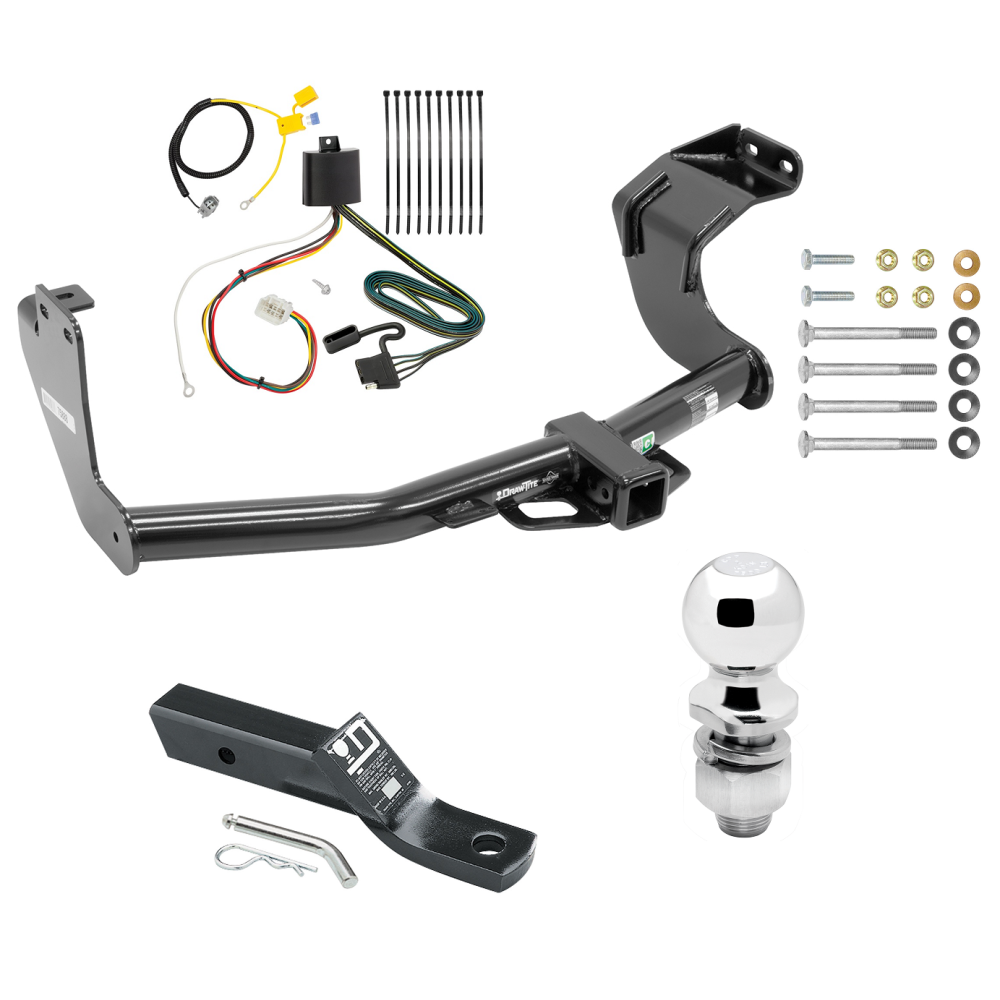

Installation Instructions for Mitsubishi Outlander (Except Sport)

Part Numbers:

• 75888
• 87656
• 44707

Wiring Access Location:

• SUV3, SUV4

Tools Required:

• Wrenches: 14mm, 17mm, 3/4"
• Drill Bits: None

Step-by-Step Instructions:

1. Lower Exhaust:

   • Disconnect three (3) rubber exhaust hangers from the muffler to lower the exhaust system.

2. Remove Tow Hook:

   • Detach the tow hook from the driver-side vehicle frame. Return the tow hook and fasteners to the vehicle owner.

3. Install Hitch:

   • Raise the hitch into position and align it with the existing weld nuts on the frame. Install all fasteners as shown in the instructions.

4. Raise Exhaust:

   • Reconnect the rubber exhaust hangers to return the exhaust system to its original position. Reattach the muffler to the exhaust pipe if removed earlier.

5. Torque All Fasteners:

   • Tighten all M10 x 1.25 CL8.8 fasteners to 42 lb-ft (57 Nm) and all 1/2"-13 GR5 fasteners to 75 lb-ft (102 Nm) using a torque wrench.

Hardware List:

• Qty (2): Hex Bolt – M10 x 1.25 x 40mm CL8.8
• Qty (2): Conical Toothed Washer – 3/8”
• Qty (4): Carriage Bolt – 1/2"-13 x 4.5" GR5
• Qty (4): Flanged Lock Nut – 1/2"-13
• Qty (4): Hardened Flat Washer – 1/2"

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Distributing
  • Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
  • Max Tongue Weight: 600 lbs (272 kg)
• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
  • Max Tongue Weight: 600 lbs (272 kg)

Manufacturer Notes:

• Tighten all fasteners to the specified torque values.
• Removal of the spare tire may make the installation process easier.
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Tow Harness for Mitsubishi Outlander

Part Numbers:

• 118277

Tools Required:

• Trim Panel Remover
• 12mm Socket & Ratchet
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Philips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Disconnect the Battery:

   • Disconnect and isolate the vehicle’s Negative (-) battery terminal.

2. Remove Interior Panels:

   • Open the vehicle’s rear tailgate.
   • On the driver’s side, remove access panels, threshold, trunk floor panels, and trays. Set all items aside carefully to avoid damage.

3. Locate Factory Tow Harness Connector:

   • On the driver’s side, locate the factory tow harness connector taped to the vehicle body harness.

4. Connect the Tow Harness:

   • Insert the tow harness into the factory connector and lock it in place.
   • Ensure all connectors are fully inserted with locking tabs secured.

5. Mount the Black Box:

   • Locate a flat surface in an out-of-the-way place to mount the tow harness black box-module. This prevents damage or rattling.

6. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side near the connectors.
   • Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
   • Caution: Verify what is behind the surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

7. Reinstall Interior Panels:

   • Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
   • Ensure wires are not pinched or cut.

8. Connect to Fuse Block:

   • Locate the black plug under the fuse block behind the driver’s side headlight.
   • Remove the black plug and connect the grey connector into the factory harness.
   • Connect the ring terminal to the positive side of the battery terminal.

9. Store the 4-Flat Connector:

   • Store the 4-flat connector in the rear cargo area when not in use.

10. Test the Installation:

    • Ensure all connections are complete for proper tow harness functionality.
    • Reset the vehicle’s electrical system by temporarily removing the ignition key.
    • Test the installation with a test light or trailer.

    Warning: Overloading circuits can cause fires. Do not exceed stated product ratings. Refer to the vehicle owner’s manual and instruction sheet for additional details.

Safety Notes:

• Always wear safety glasses and take precautions during installation.
• Avoid routing wires near hot pipes, heat shields, or areas where they may be pinched or damaged.
• Follow all vehicle warnings and installation instructions.

Manufacturer Notes:

• Store these instructions for future reference.
• Refer to the vehicle owner’s manual for additional details.
