Reese Trailer Tow Hitch For 16-20 KIA Sorento w/ I4 Engine Complete Package w/ Wiring Kit and 1-7/8" Chrome Ball

Reese Trailer Tow Hitch For 16-20 KIA Sorento w/ I4 Engine Complete Package w/ Wiring Kit and 1-7/8" Chrome Ball
Reese Trailer Tow Hitch For 16-20 KIA Sorento w/ I4 Engine Complete Package w/ Wiring Kit and 1-7/8" Chrome Ball
Reese Trailer Tow Hitch For 16-20 KIA Sorento w/ I4 Engine Complete Package w/ Wiring Kit and 1-7/8" Chrome Ball
Reese Trailer Tow Hitch For 16-20 KIA Sorento w/ I4 Engine Complete Package w/ Wiring Kit and 1-7/8" Chrome Ball
Reese Trailer Tow Hitch For 16-20 KIA Sorento w/ I4 Engine Complete Package w/ Wiring Kit and 1-7/8" Chrome Ball
Reese Trailer Tow Hitch For 16-20 KIA Sorento w/ I4 Engine Complete Package w/ Wiring Kit and 1-7/8" Chrome Ball
Reese Trailer Tow Hitch For 16-20 KIA Sorento w/ I4 Engine Complete Package w/ Wiring Kit and 1-7/8" Chrome Ball
Reese Trailer Tow Hitch For 16-20 KIA Sorento w/ I4 Engine Complete Package w/ Wiring Kit and 1-7/8" Chrome Ball
Reese Trailer Tow Hitch For 16-20 KIA Sorento w/ I4 Engine Complete Package w/ Wiring Kit and 1-7/8" Chrome Ball
Reese Trailer Tow Hitch For 16-20 KIA Sorento w/ I4 Engine Complete Package w/ Wiring Kit and 1-7/8" Chrome Ball
Reese Trailer Tow Hitch For 16-20 KIA Sorento w/ I4 Engine Complete Package w/ Wiring Kit and 1-7/8" Chrome Ball
Reese Trailer Tow Hitch For 16-20 KIA Sorento w/ I4 Engine Complete Package w/ Wiring Kit and 1-7/8" Chrome Ball
Reese Trailer Tow Hitch For 16-20 KIA Sorento w/ I4 Engine Complete Package w/ Wiring Kit and 1-7/8" Chrome Ball
$315.42
  • Stock: In Stock
  • Brand: Reese
  • Model: 06196 36071 118583 63810

Applies to this product only

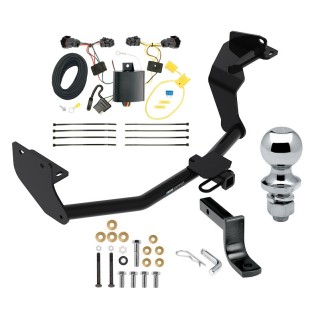

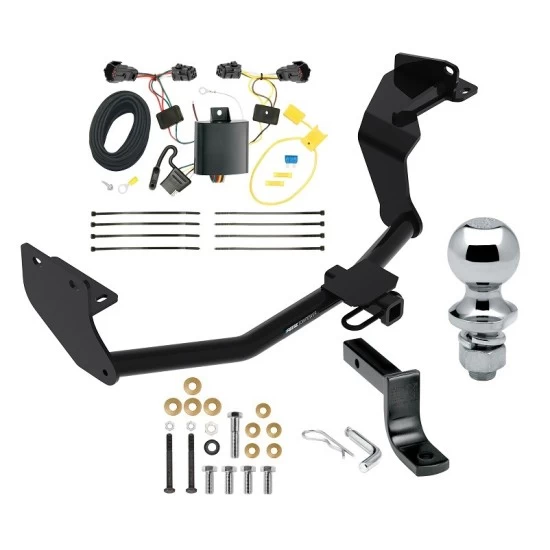

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" Chrome Ball

Installation Hardware
Installation Instructions

Fits The Following Vehicles


2016 – 2020 KIA, Sorento, w/ I4 Engine

Trailer Hitch Specs:
Part Number 06196
Brand Reese
Finish Black Powdercoat
Class 2
Receiver size opening 1-1/4"
Max gross trailer weight 3,500 lbs
Max GTW w/ weight distribution  N/A
Max Tongue Weight 350 lbs
Warranty Lifetime

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)


Specifications:

Fits 1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 7-3/16" From Center of Pin Hole to Center of Ball Hole
Rise 2-5/8"  From inside top of hitch opening
Towing Capacity in Rise Position 3,500 lb Gross Towing Weight
300 lb Tongue Weight
Drop 3-1/4" From inside top of hitch opening
Towing Capacity in Drop Position 3,500 lb Gross Towing Weight
300 lb Tongue Weight
Ball Hole Diameter 3/4"
Pin hole diameter 1/2"
Warranty Limited Lifetime


Wiring Kit Specs:
Part Number 118583
Brand Tekonsha
Warranty 1 Year

Hitch Ball Specs:
Part Number 63810
Brand Draw-Tite
Size 1-7/8" x 3/4" x 1-1/2"
Towing Capacity 2,000 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 160 ft. lbs
Ball Hole Diameter 3/4"
Warranty Lifetime

Questions or Comments? Call 702-374-8999


REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.

Partial list of fitment years: 16 17 18 19 20 2016 2017 2018 2019 2020
