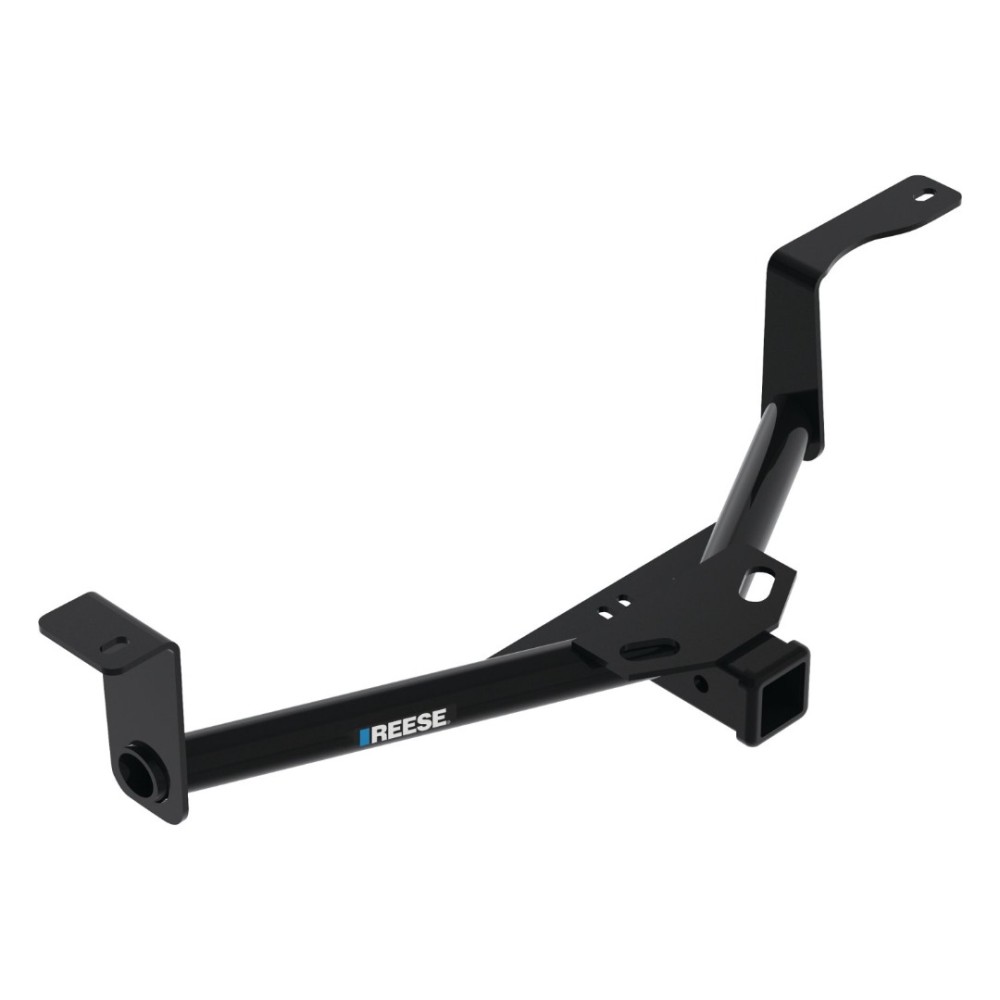

Reese Trailer Tow Hitch For 16‑22 Honda HR‑V Class 3 2" Receiver
Model: 84601This Hitch Fits The Following Vehicles:
2016 - 2022 Honda, HR-V, All Styles
Trailer Hitch Specs:
2016 - 2022 Honda, HR-V, All Styles
Trailer Hitch Specs:
| Part Number | 84601 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | III |
| Receiver size opening | 2" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 16 17 18 19 20 21 22 2016 2017 2018 2019 2020 2021 2022
Partial list of fitment years: 16 17 18 19 20 21 22 2016 2017 2018 2019 2020 2021 2022
$207 21 $300.14 31% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
Best Price on Web Guarantee
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$300.14 $207 21
Pay in 4 interest-free installments of
$51.75
with
Learn more
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 84601
- UPC: 016118164251
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Fits The Following Vehicles:
2016 - 2022 Honda, HR-V, All Styles
Trailer Hitch Specs:
2016 - 2022 Honda, HR-V, All Styles
Trailer Hitch Specs:
| Part Number | 84601 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | III |
| Receiver size opening | 2" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 16 17 18 19 20 21 22 2016 2017 2018 2019 2020 2021 2022
Partial list of fitment years: 16 17 18 19 20 21 22 2016 2017 2018 2019 2020 2021 2022
Get Expert Help
Reese Trailer Tow Hitch For 16-22 Honda HR-V Class 3 2" Receiver Install Notes
Installation Instructions for 2015-Current Honda HR-V
Part Numbers:
- 76601
- 84601
- 76601
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 11/16", 3/4"
- 6-inch Socket Extension
- Exhaust Removal Pliers
- Flat Head Screwdriver
- Pliers
- Marker
- Tape Measure
- Utility Knife
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach the exhaust from the two rubber isolators using exhaust removal pliers.
- Spray lubricant on the isolators to ease removal.
-
Install Driver-Side Hardware:
- Insert the 7/16" carriage bolt and spacer into the driver-side frame rail using the pull wire procedure.
- Leave the pull wire attached at this time.
-
Raise Hitch:
- Position the hitch under the vehicle, feeding the pull wire through the attachment slot on the driver-side of the hitch.
-
Secure Hitch with U-Bolt:
- Hang the U-bolt around the tow hook and through the chain plate holes behind the receiver.
- Install the 3/8" flat washers, lock washers, and hex nuts. Center the hitch on the vehicle.
-
Secure Driver-Side Bolt:
- Feed the 7/16" conical washer over the pull wire to hold the bolt in place.
- Remove the pull wire and attach the 7/16" hex nut.
-
Install Passenger-Side Handle Nut:
- Bend approximately 1/2" of the handle nut downward using pliers for easier installation.
- Insert the handle nut through the access hole in the passenger-side frame rail.
- Align it with the attachment slot in the passenger-side hitch bracket.
- Install the 1/2" hex bolt and conical washer (teeth side against the hitch) through the side bracket, frame rail, and into the handle nut.
-
Tighten Fasteners:
- Tighten the fasteners to the following torque specifications:
- 7/16"-14 fasteners: 50 ft-lbs (68 N*m)
- 1/2"-13 fasteners: 50 ft-lbs (68 N*m)
- 3/8"-16 fasteners: 30 ft-lbs (41 N*m)
- Tighten the fasteners to the following torque specifications:
-
Adjust Exhaust Clearance:
- Bend the exhaust hanger spears downward by 1/2" to provide additional muffler clearance.
- Reattach the exhaust by reconnecting the rubber isolators.

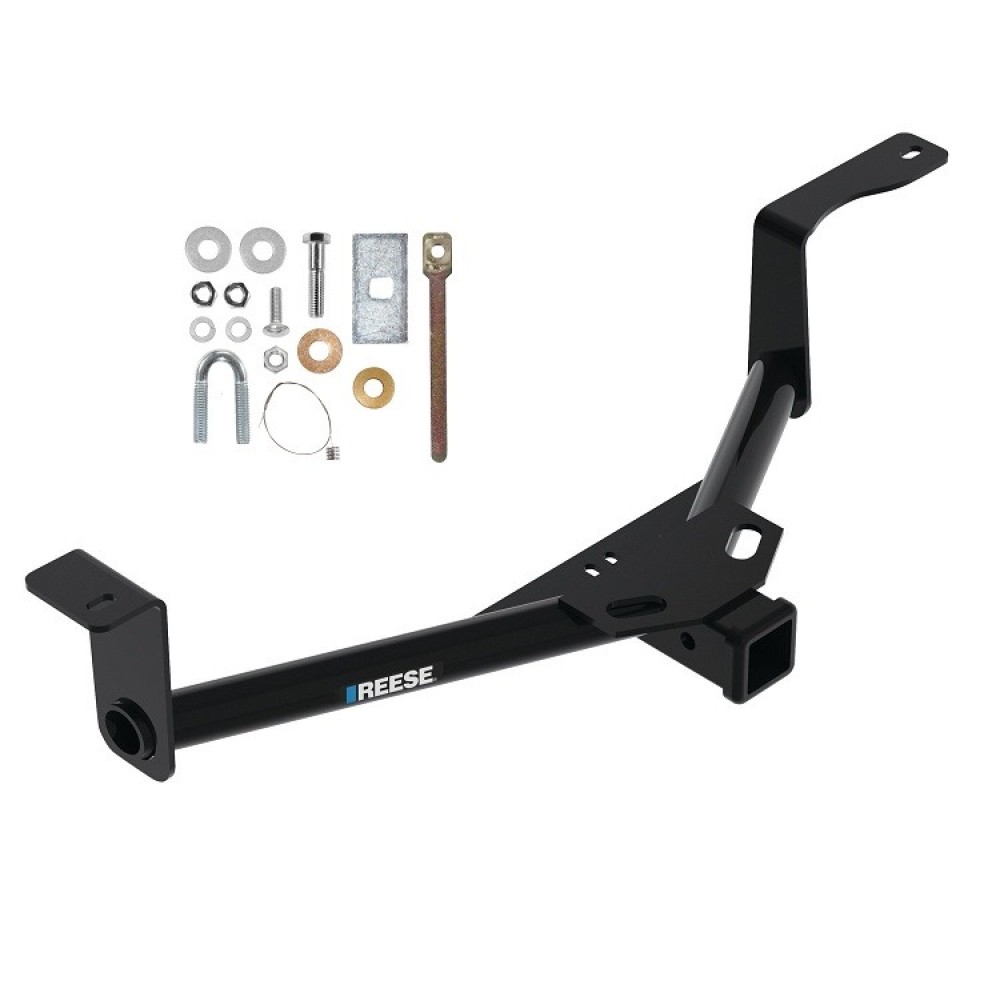

Hardware List:
- (1) Carriage Bolt 7/16"-14 x 1.50" GR5
- (1) Spacer 1/4" x 7/8" x 3"
- (1) Conical Washer 7/16"
- (1) Hex Nut 7/16"-14
- (1) Pull Wire 7/16"
- (1) Hex Bolt 1/2"-13 x 1.50" GR5
- (1) Handle Nut 1/2"-13
- (1) Conical Washer 1/2"
- (1) U-Bolt 3/8"-16
- (2) Flat Washers 3/8"
- (2) Lock Washers 3/8"
- (2) Hex Nuts 3/8"-16
Safety Notes:
- Always wear safety glasses during installation.
- Periodically check that all fasteners and the hitch ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Observe all safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 2,000 lbs (908 kg) trailer weight, 300 lbs (136 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 35 minutes.
- For detailed photo instructions, scan the QR code provided in the manual or visit the website.
