Trailer Tow Hitch For 16-22 Lexus RX350 16-21 RX450h Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Trailer Tow Hitch For 16‑22 Lexus RX350 16‑21 RX450h Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Model: 75540 63134 63100

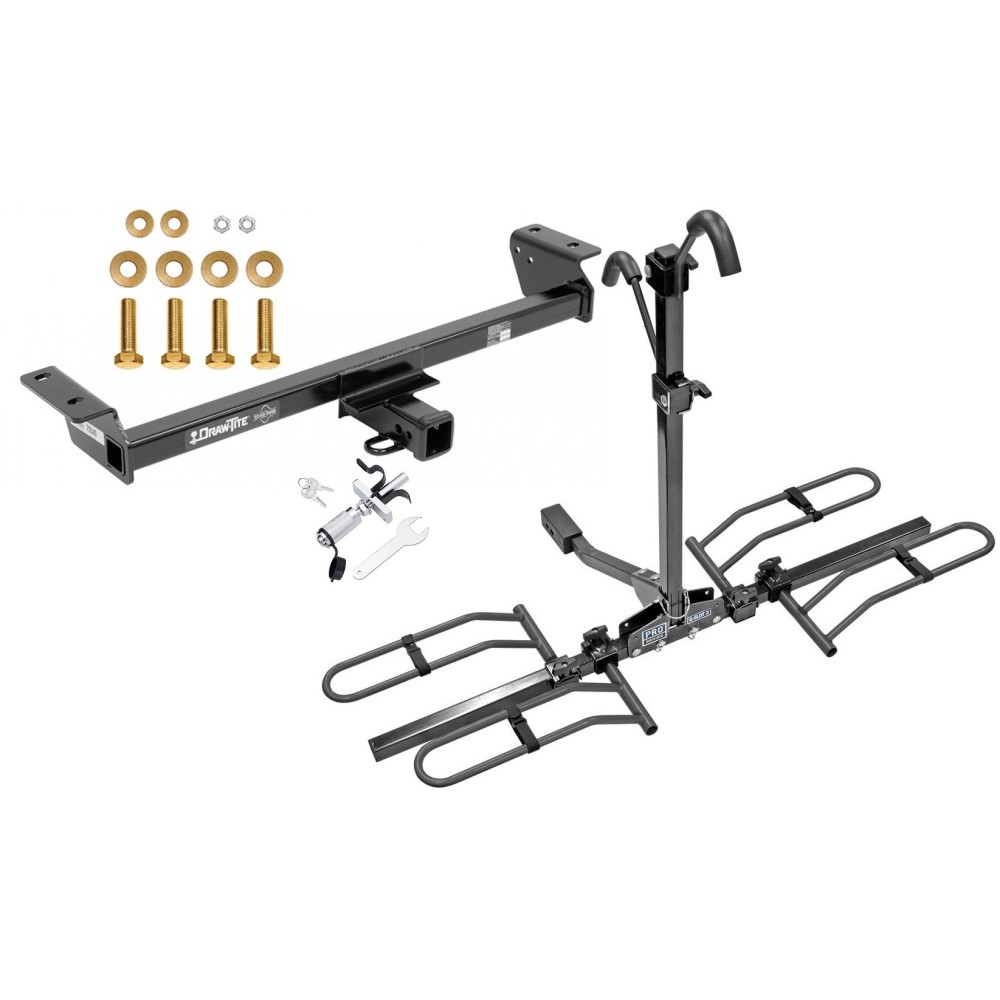

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2016 - 2022 Lexus, RX350, Except F Sport
2016 - 2021 Lexus, RX450h, All Styles

Trailer Hitch Specs:

Part Number	75540
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4,500 lbs
Max GTW w/ weight distribution	4,500 lbs
Max Tongue Weight	675/675 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 16 17 18 19 20 21 22 2016 2017 2018 2019 2020 2021 2022

See Full Description

$417 ¹⁸ $670.66 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$670.66 $417 ¹⁸

Pay in 4 interest-free installments of $104.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $104.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75540 63134 63100
Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	4,500 lbs.
Gross Towing Weight w/ Weight Distribution Kit	4,500 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	675 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	675 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	75540
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4,500 lbs
Max GTW w/ weight distribution	4,500 lbs
Max Tongue Weight	675/675 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Tags: 75540 , 63134 , 63100 , Draw-Tite , Trailer , Tow , Hitch , 16-22 , Lexus , RX350 , 16-21 , RX450h , Platform , Style , 2 , Bike , Rack , Anti , Rattle , Hitch , Lock , 16 , 17 , 18 , 19 , 20 , 21 , 22 , 2016 , 2017 , 2018 , 2019 , 2020 , 2021 , 2022

Get Expert Help

Trailer Tow Hitch For 16-22 Lexus RX350 16-21 RX450h Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes

Installation Instructions for Lexus RX350 and RX450h

Part Numbers:

75540
84540
CQT75540

Tools Required:

Wrenches: 10mm, 12mm, 17mm, 19mm
Ratchet
Torque Wrench
Flat Head Screwdriver
Hacksaw
Tape
Marker
Socket Extension

Wiring Access Location:

Not specified in this document.

Step-by-Step Instructions:

For RX350 Models:

Remove Tie-Down Bracket:
- Use a 17mm socket to remove the two bolts securing the tie-down bracket on the passenger side.
- Return the tie-down bracket to the vehicle owner.
Remove Weldnut Covers:
- Using a flat head screwdriver, remove the two plastic caps from the rearmost existing weldnuts on the driver side.
- Remove the rearmost rubber plug from the hole between the two weldnuts.
Trim Lower Fascia (for models after 2021):
- Remove two tabs from the sensor bracket behind the lower fascia, if present.
- Mark a 3"x3" trimming area using tape and a marker, centered from the edge of the bottom tab.
- Use a hacksaw to trim the marked area.
Install Hitch:
- Raise the hitch into position over the existing weldnuts.
- Install two M12 bolts and conical washers on both sides.
- Bend the exhaust heat shield if necessary to prevent it from touching the hitch.
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 76 lb-ft (103 N·m).

For RX450h Models:

Remove Underbody Panel:
- Use a 10mm socket to remove 13 fasteners securing the underbody panel. One plunger-style fastener is located behind the wheel well trim on the driver side.
- Retain the underbody panel for reinstallation after trimming.
Remove Hole Plugs:
- Remove three rearmost hole plugs from the driver side frame rail using a flat head screwdriver.
Remove Tow Loop:
- Use a 17mm socket to remove the two M12 bolts securing the tow loop on the passenger side. Return the tow loop and fasteners to the vehicle owner.
Lower Exhaust:
- Use a 12mm socket to remove two M8 bolts holding the exhaust hanger on the passenger side. Retain the bolts for reinstallation.
Install Hitch:
- Raise the hitch into position over the exhaust.
- Install two M12 bolts and conical washers on both sides.
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 76 lb-ft (103 N·m) and M8 fasteners to 27 lb-ft (37 N·m).
Reinstall Exhaust:
- Use a 12mm socket to reinstall the M8 bolts, conical washers, and hex nuts.
Trim Underbody Panel:
- Use a hacksaw to trim the appearance panel in two places. Obtain vehicle owner approval before trimming.
Reinstall Underbody Panel:
- Use the 13 retained fasteners to reinstall the appearance panel.

Hardware List:

RX350:
- (4) M12 x 1.25 x 40mm CL10.9 Hex Bolts
- (4) 1/2” Conical Washers
RX450h:
- (4) M12 x 1.25 x 40mm CL10.9 Hex Bolts
- (4) 1/2” Conical Washers
- (2) 3/8” Conical Washers
- (2) M8 Hex Nuts

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
