Reese Trailer Tow Hitch For 16-24 Subaru Crosstrek Except Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball

Reese Trailer Tow Hitch For 16-24 Subaru Crosstrek Except Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 16-24 Subaru Crosstrek Except Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 16-24 Subaru Crosstrek Except Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 16-24 Subaru Crosstrek Except Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 16-24 Subaru Crosstrek Except Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 16-24 Subaru Crosstrek Except Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 16-24 Subaru Crosstrek Except Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 16-24 Subaru Crosstrek Except Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 16-24 Subaru Crosstrek Except Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 16-24 Subaru Crosstrek Except Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 16-24 Subaru Crosstrek Except Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 16-24 Subaru Crosstrek Except Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 16-24 Subaru Crosstrek Except Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball
$301.04
  • Stock: In Stock
  • Brand: Reese
  • Model: 06813 36051 118467 63820

Applies to this product only

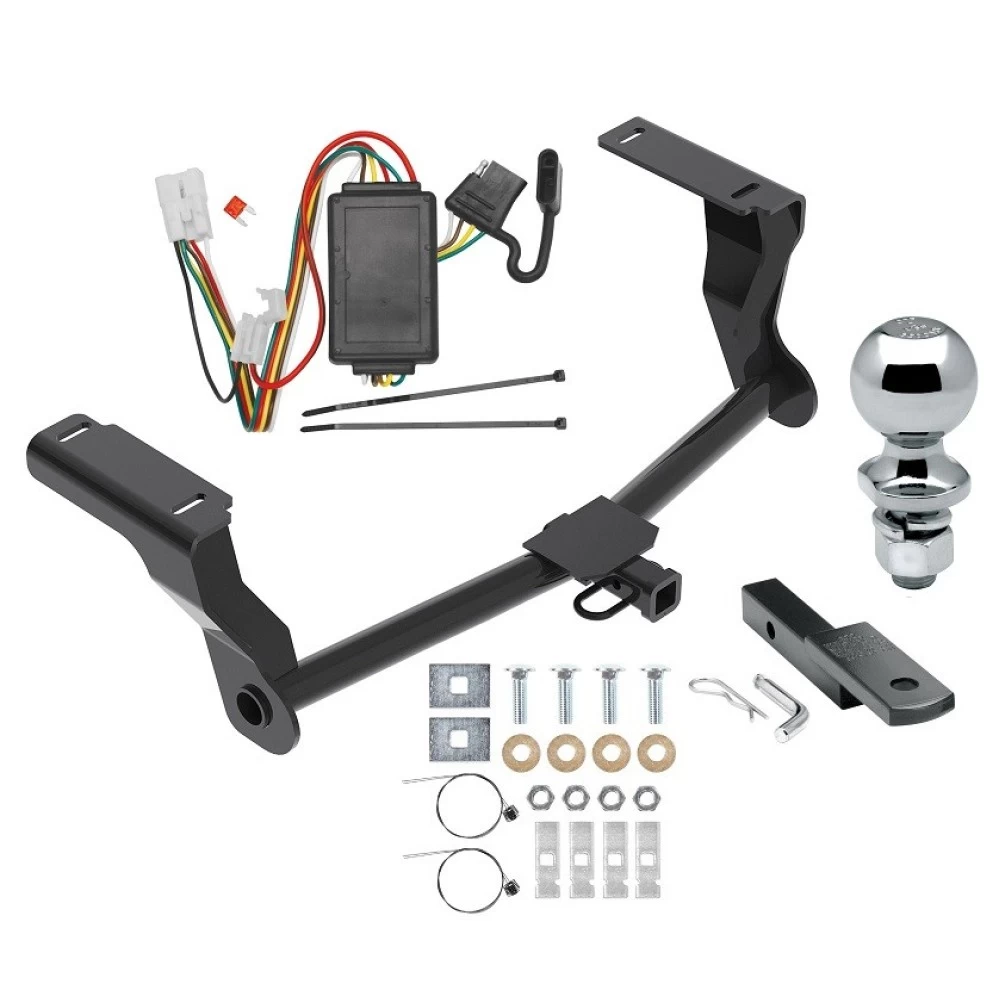

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
2" Chrome Ball

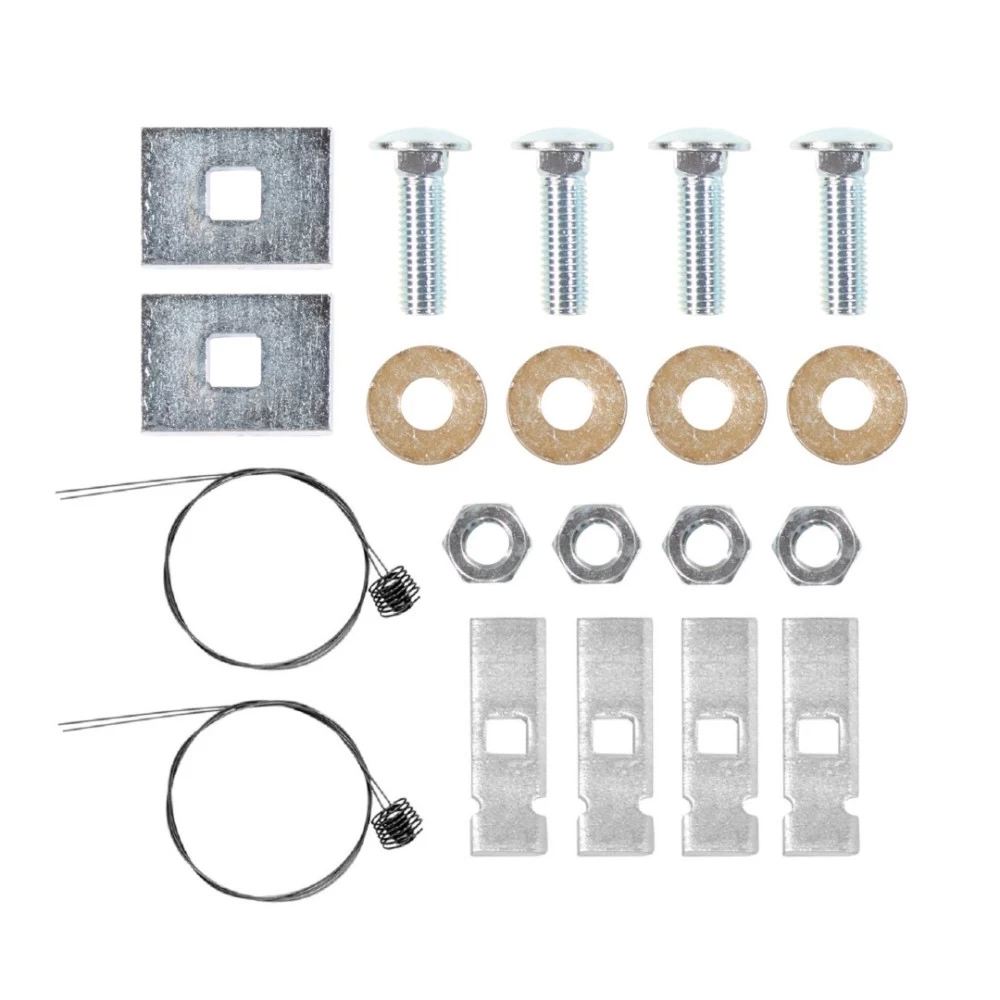

Installation Hardware
Installation Instructions

Fits The Following Vehicles

2016 - 2024   Subaru, Crosstrek, Except Hybrid

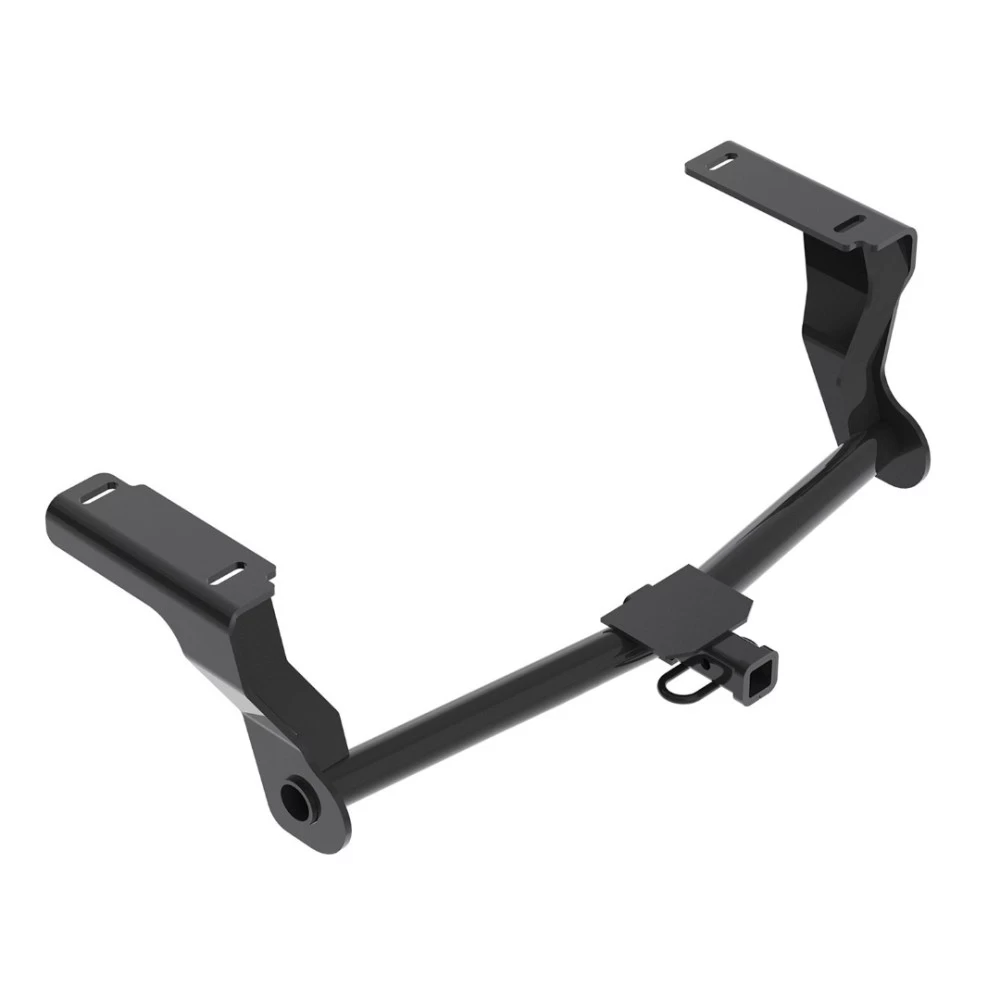

Trailer Hitch Specs:

Part Number 06813
Brand Reese
Finish Black Powdercoat
Class 2
Receiver size opening 1-1/4"
Max gross trailer weight 3,500 lbs
Max Tongue Weight 350 lbs
Warranty Lifetime
Installation Instructions

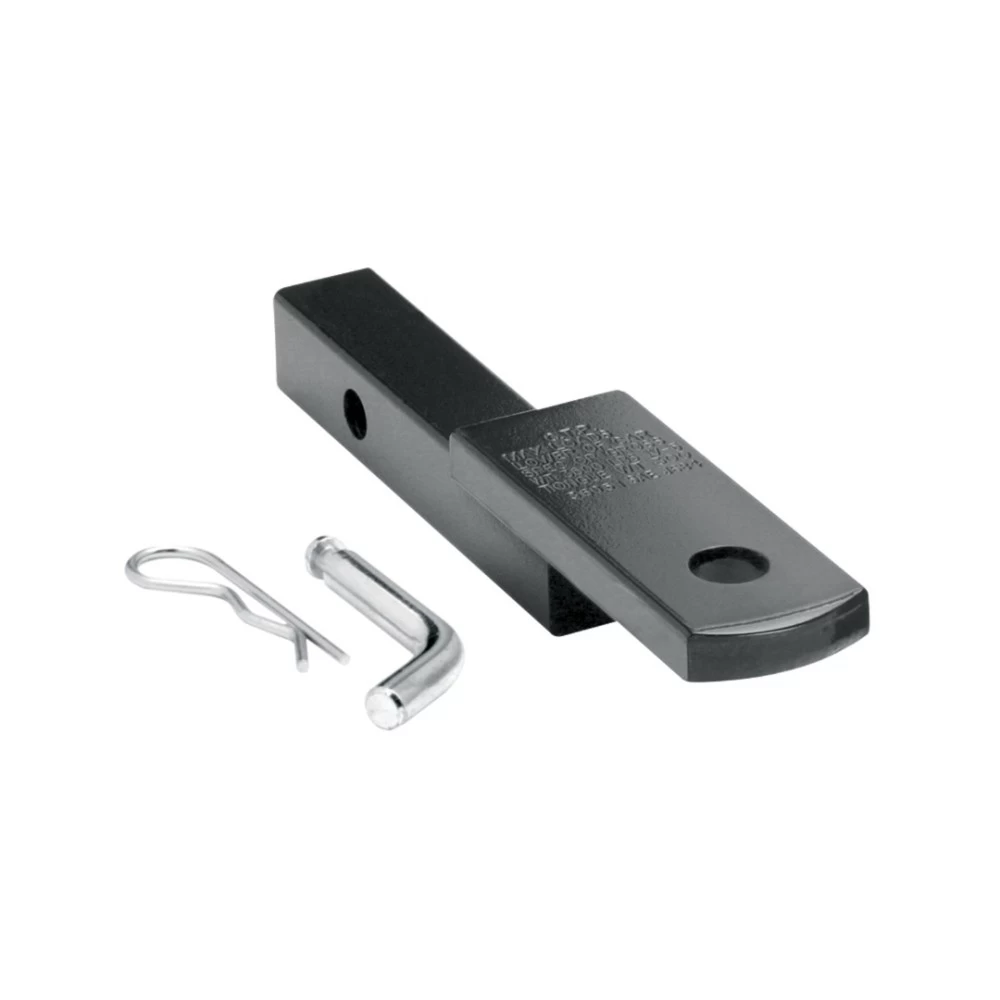

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)


Specifications:

Fits 1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 7" From Center of Pin Hole to Center of Ball Hole
Rise 5/8" From inside top of hitch opening
Towing Capacity in Rise Position 3,500 lb Gross Towing Weight
350 lb Tongue Weight
Drop 1-1/4" From inside top of hitch opening
Towing Capacity in Drop Position 3,500 lb Gross Towing Weight
350 lb Tongue Weight
Ball Hole Diameter 3/4"
Pin hole diameter 1/2"
Warranty Limited Lifetime

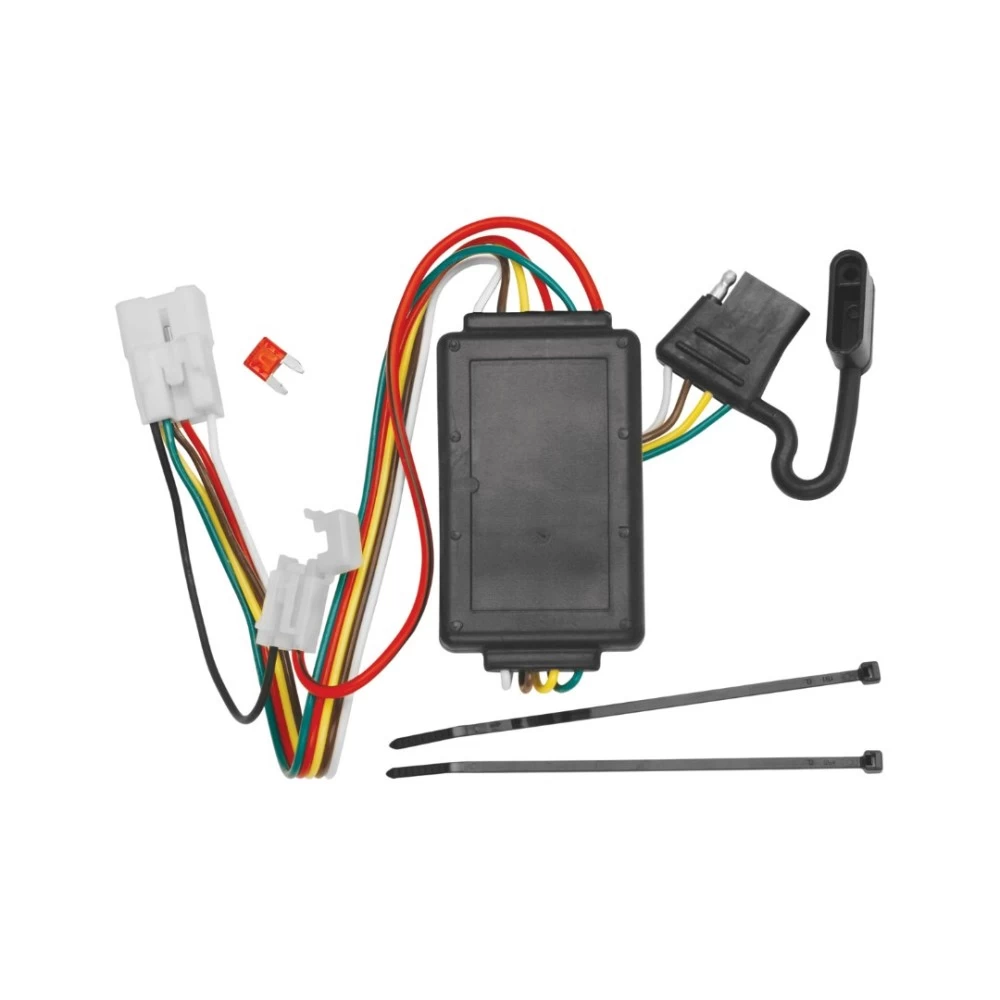

Wiring Kit Specs:

Part Number 118467
Brand Tekonsha
Warranty 1 Year
Installation Instructions



Hitch Ball Specs:

Part Number 63820
Brand Draw-Tite
Size 2" x 3/4" x 1-1/2"
Towing Capacity 3,500 lbs. GTW
Material Chrome
Torque Torque to 160 ft. lbs
Shank Diameter 3/4"
Warranty Lifetime


Questions or Comments? Call 702-374-8999

REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.

Partial list of fitment years: 16 17 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024

Specification
Attachment Location Rear
Color Black
Drawbar Included Yes
Drilling Required No
Gross Towing Weight 3,500 lbs.
Hitch Class II
Material Steel
Maximum Tongue Weight 300 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 1.25 in.
Receiver Type Round Tube
