Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock

Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
Trailer Tow Hitch For 16-24 Volvo XC90 Deluxe Package Wiring 2" Ball and Lock
$355.12
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 76194 118683 23 63845 580407 7010

Applies to this product only

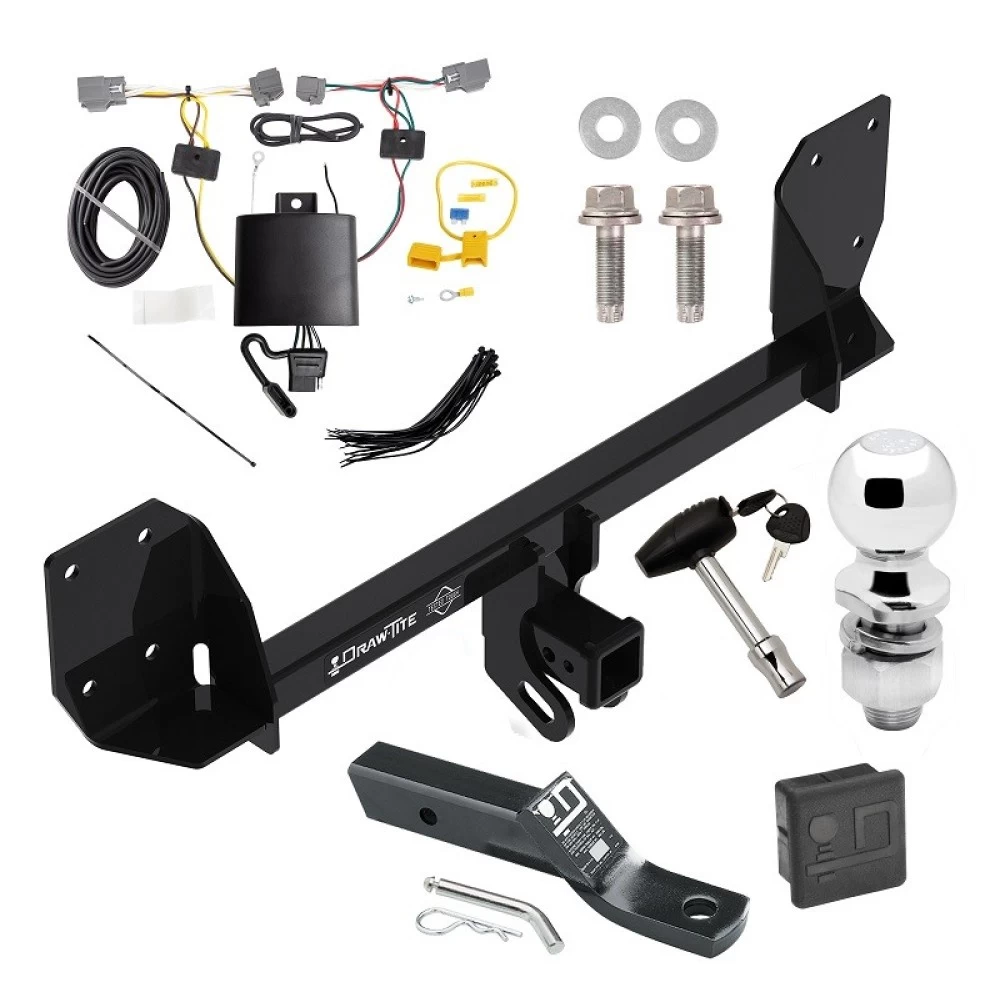

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball

Security Lock Pin
Rubber Hitch Plug Cover

Installation Hardware
Installation Instructions


Fits The Following Vehicles
2016 - 2024 Volvo, XC90, All Styles

Trailer Hitch Specs:
Part Number 76194
Brand Draw-Tite
Finish Black Powdercoat
Class 3
Receiver size opening 2
Max gross trailer weight 6,000 lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 900 lbs
Warranty Lifetime
Installation Instructions




Wiring Kit Specs:
Part Number 118683
Brand Tekonsha
Warranty 1 Year
Installation Instructions

Ball Mount Specs:
Fits 2" x 2" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity 7,500 lb Gross Towing Weight
750 lb Tongue Weight
Drop 2" From inside top of hitch opening
Rise 3/4" from top of inside of hitch opening
Warranty Lifetime


Hitch Ball Specs:
Part Number 63845
Brand Draw-Tite
Size 2" x 1" x 2-1/8"
Towing Capacity 7,500 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque Torgue to 250 ft. lbs
Ball Hole Diameter 1"
Warranty Lifetime

Security Lock Pin
Specs:
Part Number 580407
Fits 2" and 1-7/8" Tow Receivers
Brand Draw-Tite
Prevents Theft
Use in place of standard pin and clip
Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees
Includes Dust Cap
Warranty Lifetime


Rubber Hitch Plug
Specs:
Part Number 7010
Fits 2" Receiver
Brand Draw-Tite
Attaches to any 2" receiver
Rubber construction tightly seals tube opening
Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening
Prevents any buildup of dirt and debris
Raised "D" Logo to distinguish the Draw-Tite brand
Warranty 1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.

For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years: 16 17 18 19 20 21 22 23 24 2016 2017 2018 2019 2020 2021 2022 2023 2024

Specification
Attachment Location Rear
Ball Mount Included Yes
Color Black
Drilling Required No
Gross Towing Weight 6,000 lbs.
Hitch Class IV
Material Steel
Maximum Tongue Weight 900 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Square Tube
