Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball

Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 16-24 Volvo XC90 Hidden Removable 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
$582.48
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 76920 118683 23 63816

Applies to this product only

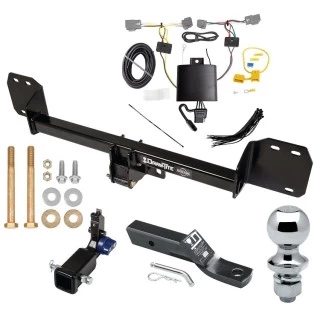

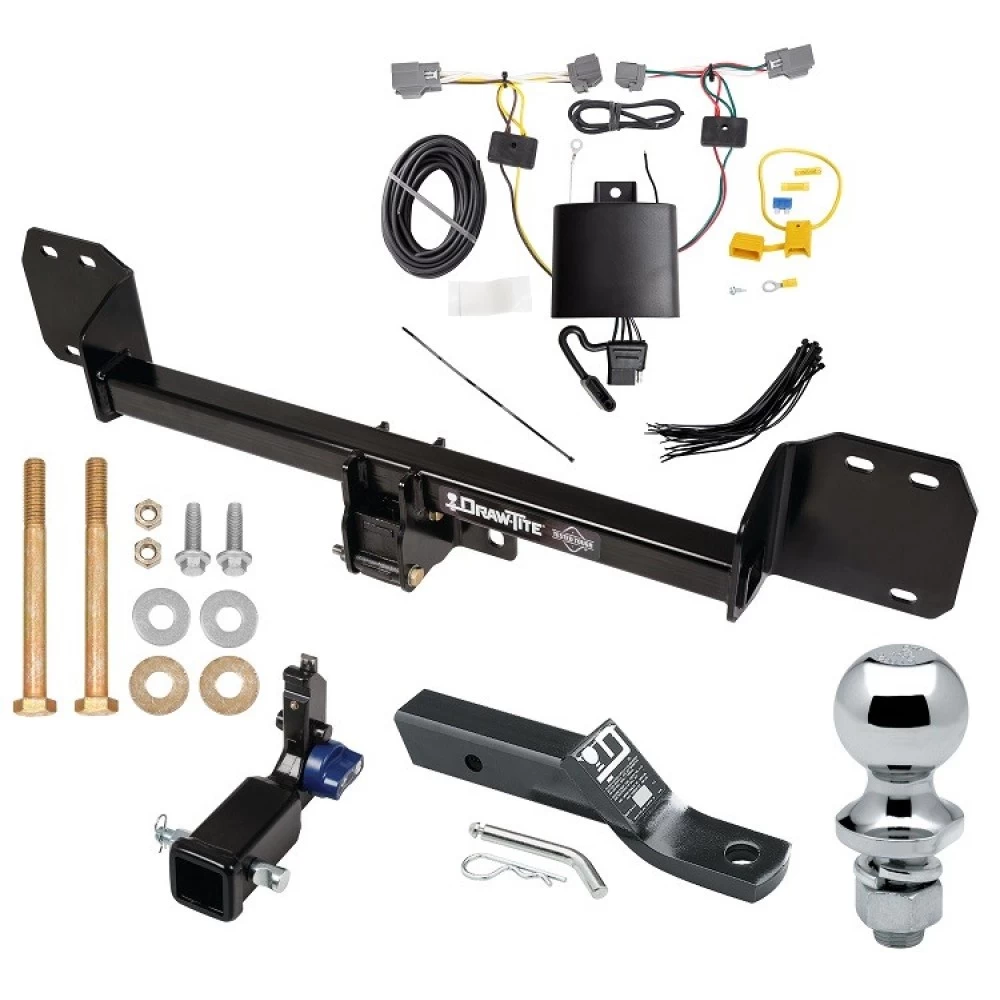

Includes Everything Pictured:
Custom Fit Trailer Hitch
Removable 2” Receiver
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions



Fits The Following Vehicles:

2016 - 2024    Volvo, XC90, All Styles



Trailer Hitch Specs:

Part Number 76920
Brand Draw-Tite
Finish Black Powdercoat
Class III
Receiver size opening 2"
Max gross trailer weight 3,500 lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 350 lbs
Warranty Lifetime
Installation Instructions


A Hitch only when you need it!
Now you can keep that fresh off the factory floor look and only see the receiver when you need to. The new Hidden Hitch® by Draw-Tite® Hitch is designed to be quickly and easily removed when not in use. Our patented design allows for mounting of cargo carriers, bike racks and even light duty towing! (up to 3,500 lbs. gross trailer weight)

Includes anti-rattle hitch pin to tightly secure accessories in receiver box

  Wiring Kit Specs:

Part Number 118683
Brand Tekonsha
Warranty 1 Year
Installation Instructions


Ball Mount Specs:

Fits 2" x 2" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity 7,500 lb Gross Towing Weight
750 lb Tongue Weight
Drop 2" From inside top of hitch opening
Rise 3/4" from top of inside of hitch opening
Warranty Lifetime


Hitch Ball Specs:

Part Number 63816
Brand Draw-Tite
Size 1-7/8" x 1" x 2-1/8",  torgue to 160 ft. lbs
Towing Capacity 2,000 lbs. GTW
Material Chrome
Torque torgue to 160 ft. lbs
Ball Hole Diameter 1"
Warranty Lifetime

Questions or Comments? Call 702-374-8999

Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive.

Partial list of fitment years: 16 17 18 19 20 21 22 23 24 2016 2017 2018 2019 2020 2021 2022 2023 2024
Specification
Attachment Location Rear
Ball Mount Included Yes
Color Black
Drilling Required No
Gross Towing Weight 3,500 lbs.
Hitch Class III
Material Steel
Maximum Tongue Weight 350 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
