Trailer Tow Hitch For 17-19 Honda CR-V 20-24 Except Hybrid Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Trailer Tow Hitch For 17‑19 Honda CR‑V 20‑24 Except Hybrid Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Model: 76128 63134 63100

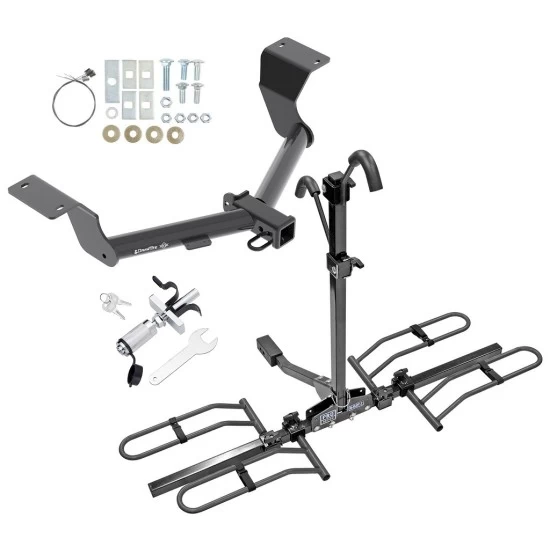

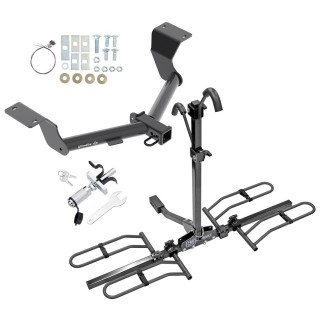

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2017 - 2019 Honda, CR-V, All Styles
2020 - 2024 Honda, CR-V, Except Hybrid

Trailer Hitch Specs:

Part Number	76128
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	675 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024

See Full Description

$385 ⁷⁰ $621.46 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$621.46 $385 ⁷⁰

Pay in 4 interest-free installments of $96.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $96.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 76128 63134 63100
Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock

Compatibility Chart

Description

Part Number	76128
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	675 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Questions or Comments? Call 702-374-8999

Specifications

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	4,500 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	675 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Questions & Answers

Be the first to ask a question.

Reviews

Tags: Trailer Tow Hitch For 17-19 Honda CR-V 20-24 Except Hybrid Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock , 76128 63134 63100 , CR-V

Get Expert Help

Trailer Tow Hitch For 17-19 Honda CR-V 20-24 Except Hybrid Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes

Installation Instructions for Trailer Hitch

Part Numbers:

76128
84128
CQT76128

Applications:

Years: 2017-Current
- Make and Models: Honda CR-V

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Tools Required:

Ratchet
Torque Wrench
Safety Glasses
Sockets: 10 mm, 11/16", 3/4"
6" Socket Extension
Flat Head Screwdriver
Exhaust Removal Pliers (Optional)
Lubricant or Soapy Water

Step-by-Step Instructions:

1. Lower the Exhaust:

Remove the rubber isolators from the exhaust at the rear of the vehicle on both sides.
It may be necessary to remove the isolator forward of the rear axle.
Spray lubricant or soapy water on the metal hanger rod and rubber isolator to ease removal.

2. Remove Center Splash Guard (For 2023 or Newer Models):

Using a 10 mm socket, remove nuts from the splash guard.
Remove rivets using a flat head screwdriver.
Return the splash guard to the vehicle owner.

3. Install Hardware:

Use the fish wire to install the carriage bolts and spacers into the large access hole at the end of the vehicle frame as shown in Figure 1.
Repeat for both sides.
Keep the fish wire attached to the hardware to prevent it from falling back into the frame.

4. Install the Hitch:

Gently raise the hitch into position, guiding it over the mufflers.
Feed the end of the fish wires through the attachment holes in the hitch.
Install the conical washers (teeth side against the hitch) and hex nuts to hold the hitch in place.
For the hitch receiver, insert the bolt through the bracket and towhook, then attach the spacers, lock washer, and hex nut as shown in Figure 1.

5. Tighten Fasteners:

Torque all 7/16"-14 GR5 fasteners to 50 lb-ft (68 N·m).
Torque all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).

6. Reinstall Exhaust:

Raise the exhaust back into position and reattach all isolators removed in Step 1.

Hardware List:

4 × Carriage Bolts (7/16"-14 × 1-1/4", GR5)
4 × Spacer Blocks (.25" × 1.00" × 2.00")
4 × Conical Washers (7/16")
4 × Hex Nuts (7/16"-14, GR2)
1 × Carriage Bolt (1/2"-13 × 2.00", GR5)
1 × Spacer Block (.25" × 1.00" × 3.00")
1 × Lock Washer (1/2")
1 × Hex Nut (1/2"-13, GR5)
4 × Fish Wires (7/16")

Safety Notes:

Always wear safety glasses during installation.
Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball before use.
Do not cut access or attachment holes with a torch.

Specifications:

Max Gross Trailer Weight (Weight Carrying): 4,500 lbs (2,043 kg)
Max Tongue Weight (Weight Carrying): 675 lbs (306 kg)
Weight Distribution: Not applicable
Installation Time: Approximately 30 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
