- Stock: In Stock
- Brand: Draw-Tite
- Model: 76177 118757 23 63845 580407 7010

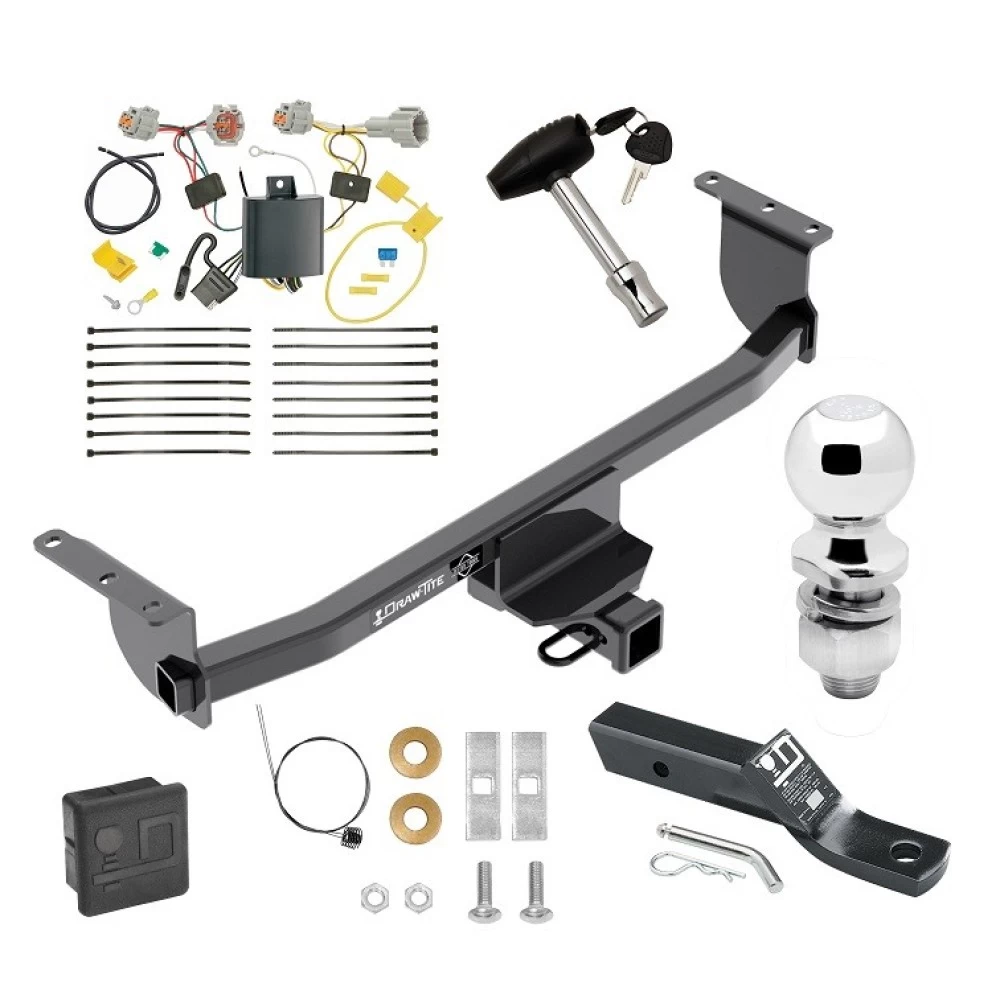

Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
Trailer Hitch Specs:
| Part Number | 76177 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Part Number | 118757 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | Torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 2017 2018 2019
