- Stock: In Stock
- Brand: Draw-Tite
- Model: 76046 76046SK 118712 21536 580407 7010

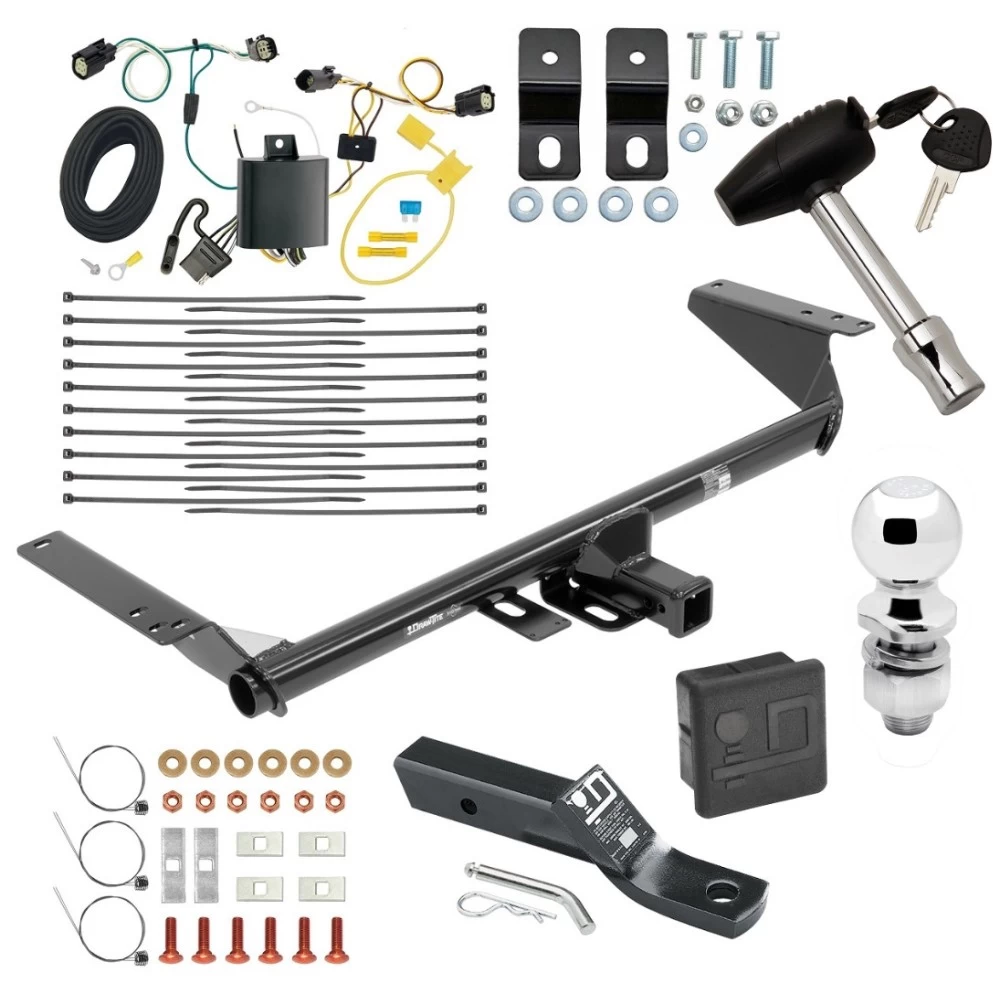

Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles

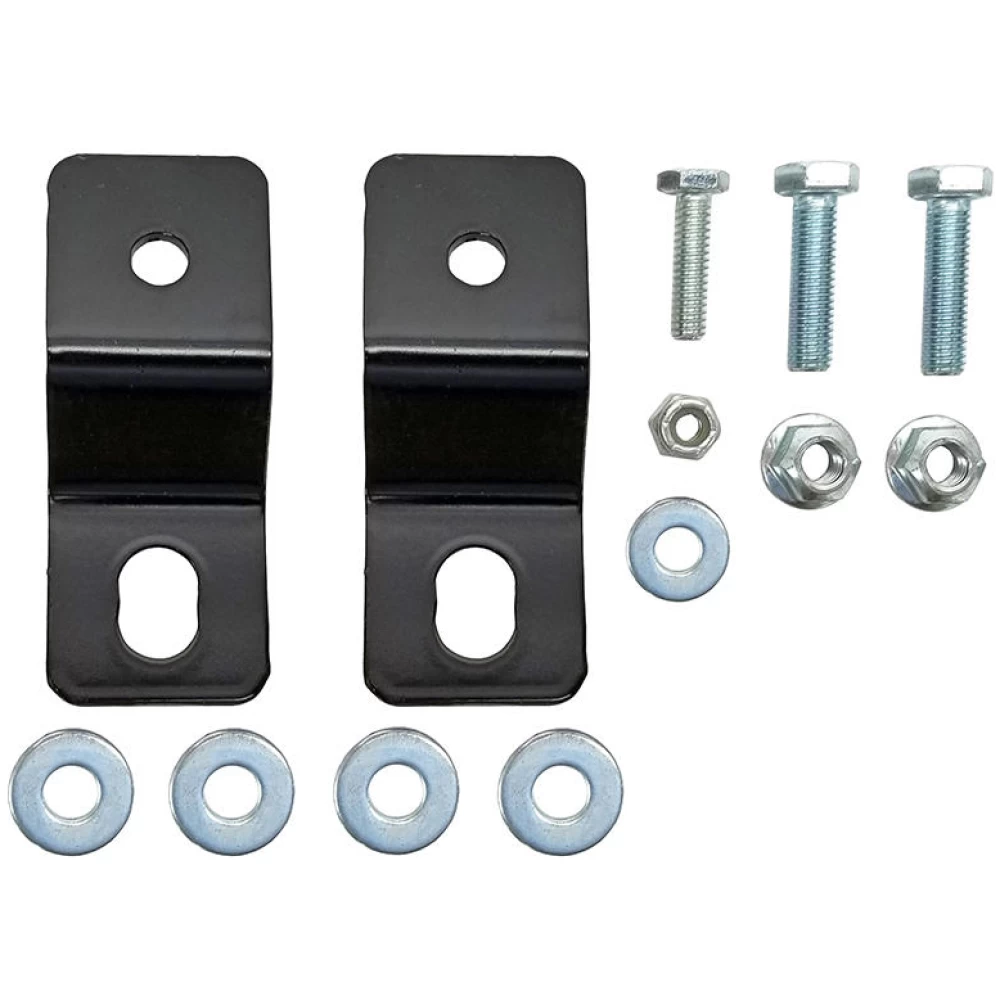

2017 - 2020 Chrysler, Pacifica, Hybrid (Needs Conversion Kit: 76046SK)
Trailer Hitch Specs:
| Part Number | 76046 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118712 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Kit, 7,500 lbs. 8-1/2" Length, 3/4" Rise, 2" Drop
Fits 2" square receiver tube opening
Includes pin and clip
Black powder coat finish over A-Coat
Hitch Ball, 2" 7,500 lbs. GTW Chrome
Solid steel hitch balls engineered to meet all safety requirements of VESC regulation V-5
Cold forged for superior strength
When installing the ball, torgue to 250 ft. lbs
Trailer Hitch Security Lock Pin w/ Sleeve
Includes Dust Cap
Fits 2" and 1-7/8" Tow Receivers
Prevents theft
Use in place of standard pin and clip
Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
Rubber Trailer Hitch Tow Plug Cover Fits 2" Receiver
Attaches to any 2" receiver
Rubber construction tightly seals tube opening
Pin or clips are not required, simply push the cover into you 2" x 2" hitch opening
Prevents any buildup of dirt and debris
Raised "D" Logo to distinguish the Draw-Tite brand
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 2017 2018 2019 2020
