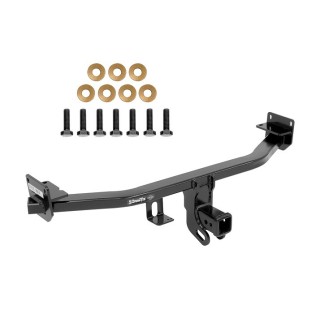

Trailer Tow Hitch For 17‑22 KIA Sportage except SX and SX Turbo
Model: 760742017 - 2022 KIA, Sportage, Except SX & SX Turbo
Trailer Hitch Specs:
| Part Number | 76074 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 4,500 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 21 22 2017 2018 2019 2020 2021 2022
$205 38 $320.73 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$320.73 $205 38
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76074
- UPC: 742512760743
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
2017 - 2022 KIA, Sportage, Except SX & SX Turbo
Trailer Hitch Specs:
| Part Number | 76074 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 4,500 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 21 22 2017 2018 2019 2020 2021 2022
Get Expert Help
Trailer Tow Hitch For 17-22 KIA Sportage except SX and SX Turbo Install Notes
Installation Instructions for Trailer Hitch Models #76074, #84074, and #CQT76074
Part Numbers:
- 76074
- 84074
- CQT76074
Applications:
- Years: 2017-Current
- Make and Models: Kia Sportage
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 17 mm
- Flat Head Screwdriver
- Adjustable Wrench
- Exhaust Removal Pliers
- 6" Socket Extension
Step-by-Step Instructions:
1. Lower Muffler:
- Lower the muffler by removing the (2) rearmost rubber hangers.
- Spray a lubricant on the rubber hangers to make removal easier.
- Note: Ensure the exhaust is supported before removing the rubber hangers.
2. Remove Underbody Appearance Panels (If Present):
- Remove (2) plastic underbody panels, one on each side, located under the rear bumper and behind the rear wheels.
- Use a standard screwdriver to remove the plastic push rivets, then pull down to detach the panels.
- Set the panels aside for later reinstallation.
3. Raise Hitch into Position:
- Lift the hitch over the tailpipe(s) and align the holes in the hitch with the existing weldnuts in the frame rail.
4. Install Fasteners:
- Install (7) M10 bolts and conical toothed washers as required.
5. Tighten Fasteners:
- Torque all M10 CL10.9 fasteners to 42 lb-ft (57 N·m).
6. Raise Muffler:
- Raise the muffler back into position and reattach the rubber hangers, one on each side.
7. Modify Exhaust Hangers (If Necessary):
- If additional clearance is required between the muffler and hitch, bend the (2) metal exhaust hanger rods downward, one on each side.
8. Reinstall Plastic Appearance Panels (If Present):
- Using the existing fasteners, reinstall the (2) plastic appearance panels removed in Step 2.
Hardware List:
- 7 × M10 × 1.25 × 30 mm CL10.9 Bolts
- 7 × 3/8" Conical Toothed Washers
Safety Notes:
- Always wear safety glasses during installation.
- Periodically check the hitch to ensure all fasteners and the hitch ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Damaged hitches or balls should be removed and replaced.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 4,500 lbs (2,043 kg)
- Max Tongue Weight (Weight Carrying/Weight Distributing): 675 lbs (306 kg)
- Installation Time: Approximately 25 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This hitch comes with a limited warranty covering defects in material and workmanship for the duration specified. For complete warranty instructions, please download the full installation PDF.
