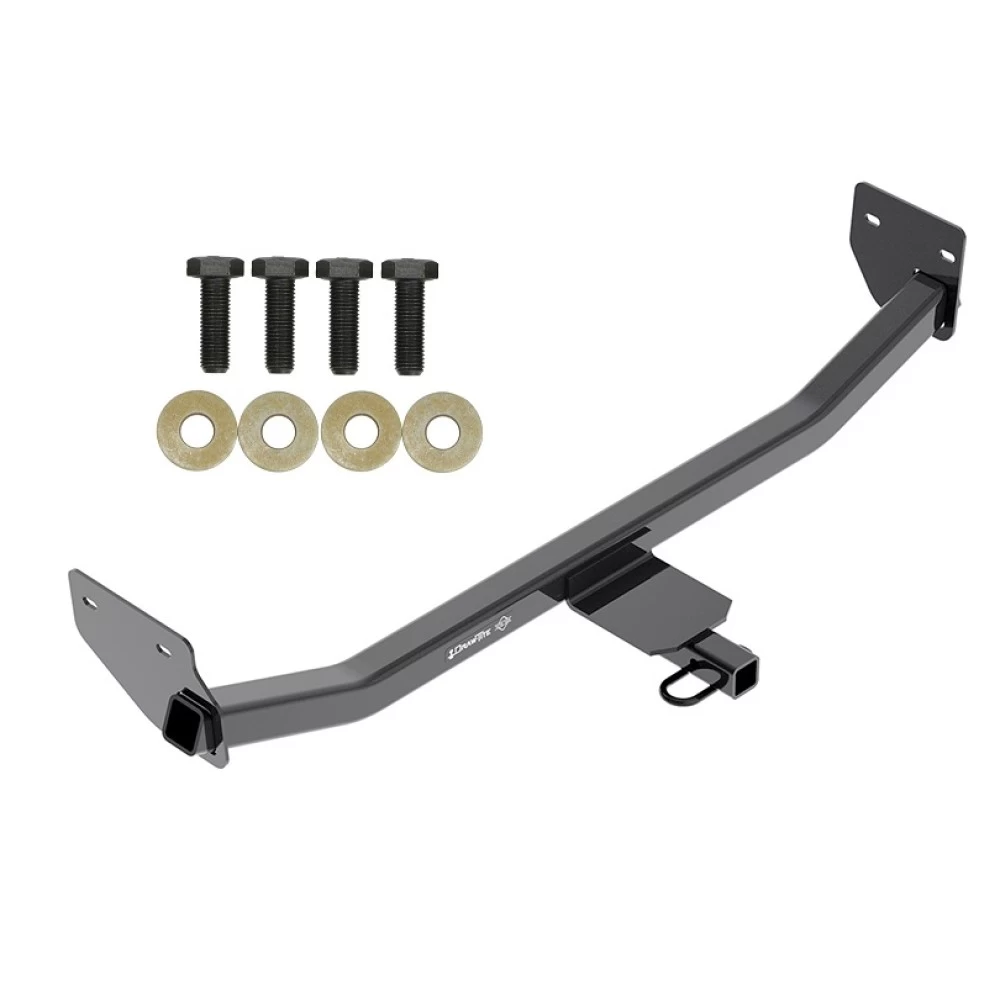

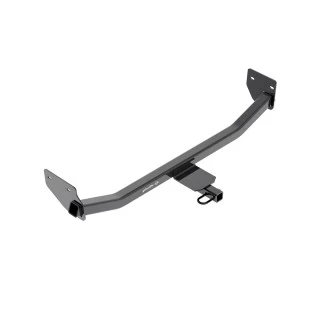

Trailer Tow Hitch For 17‑24 Hyundai Ioniq Hybrid except Plug‑In 1‑1/4" Receiver Class 1
Model: 249632017 - 2024 Hyundai, Ioniq, excluding Electric and Plug-In Hybrid
Trailer Hitch Specs:
| Part Number | 24963 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024
$183 39 $286.36 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$286.36 $183 39
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $45.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24963
- UPC: 016118109221
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
2017 - 2024 Hyundai, Ioniq, excluding Electric and Plug-In Hybrid
Trailer Hitch Specs:
| Part Number | 24963 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 17-24 Hyundai Ioniq Hybrid except Plug-In 1-1/4" Receiver Class 1 Install Notes
Installation Instructions for Hyundai Ioniq (2017-Current)
Part Numbers:
- 24963
- 77963
- CQT24963
Tools Required:
- Flat Head Screwdriver
- Exhaust Removal Pliers
- Ratchet Strap or Bungee Cord
- Tape Measure
- Marker
- Utility Knife
- Soapy Water or Lubricant
- Wire Brush
- Sockets: 10mm, 16mm
- Torque Wrench
- Ratchet
- Socket Extensions
- Safety Glasses
Step-by-Step Instructions:
-
Remove the underbody panel:
- Using a flat head screwdriver and a 10mm socket, remove (5) push pin rivets and (2) hex nuts from the driver's side panel.
- Note: Two of the rivets connect the driver's side panel to the center panel.
-
Lower the muffler:
- Using an exhaust hanger removal tool, remove (1) rubber hanger on the passenger's side and (1) forward hanger at the center of the vehicle.
- Spray lubricant or soapy water on the rubber hangers to ease removal.
- Support the exhaust using a ratchet strap or bungee cord before removing the hangers.
-
Install the hitch:
- Raise the passenger’s side hitch bracket above the exhaust first, then raise the driver’s side into position.
- Using the supplied hardware, loosely install the M10 bolts and conical toothed washers.
- Note: Clean debris from existing weldnuts in the frame using a wire brush or compressed air if necessary.
-
Tighten fasteners:
- Use a torque wrench to tighten all M10 CL10.9 fasteners to 42 lb-ft (57 N*m).
-
Trim the underbody panel:
- Measure, mark, and trim the driver's side underbody panel using a tape measure, marker, and utility knife.
-
Reinstall the underbody panel:
- Reinstall the panel using (5) push pin rivets and (1) hex nut removed in Step 1.
-
Raise the muffler:
- Reattach all rubber hangers removed in Step 2.

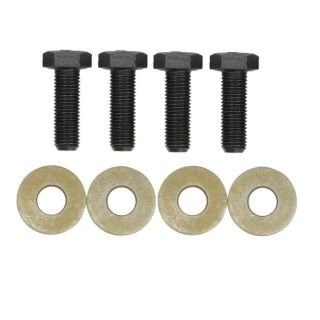

Hardware List:
- (4) Bolt, M10 x 1.25 x 30 CL10.9
- (4) Conical Washer, 3/8" (Part No. 01292006)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Do not cut access or attachment holes with a torch.
- If the hitch or ball is damaged, remove and replace it immediately.
- Do not exceed the vehicle manufacturer’s towing ratings:
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
Specifications:
- Installation Time: 30 minutes
- Complies with SAE J684 and VESC Regulation V-5 standards.
