Trailer Tow Hitch For 17-24 KIA Niro Complete Package w/ Wiring Draw Bar and 1-7/8" Ball

Trailer Tow Hitch For 17-24 KIA Niro Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 17-24 KIA Niro Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 17-24 KIA Niro Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 17-24 KIA Niro Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 17-24 KIA Niro Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 17-24 KIA Niro Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 17-24 KIA Niro Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 17-24 KIA Niro Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 17-24 KIA Niro Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 17-24 KIA Niro Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 17-24 KIA Niro Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 17-24 KIA Niro Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 17-24 KIA Niro Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
$286.05
  • Stock: Pre-Order
  • Brand: Draw-Tite
  • Model: 366000 118749 63810

Applies to this product only

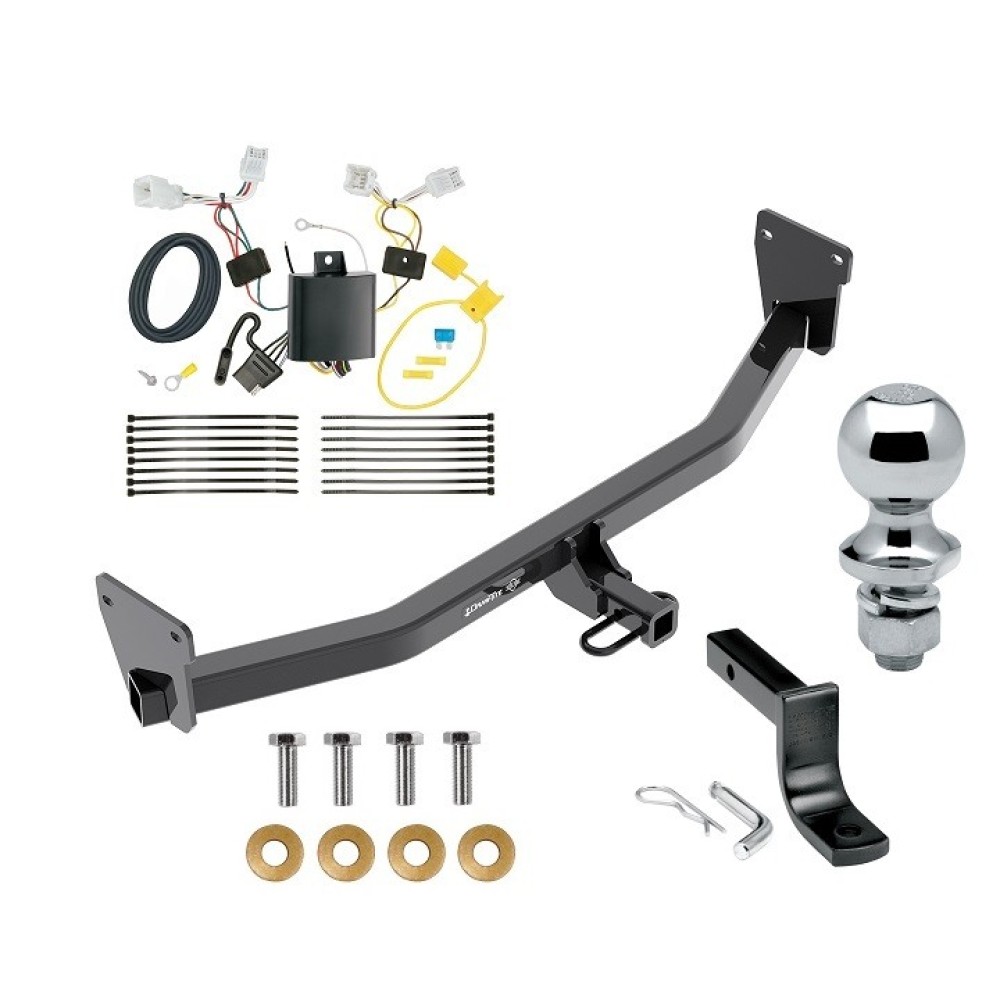

Includes Everything Pictured:

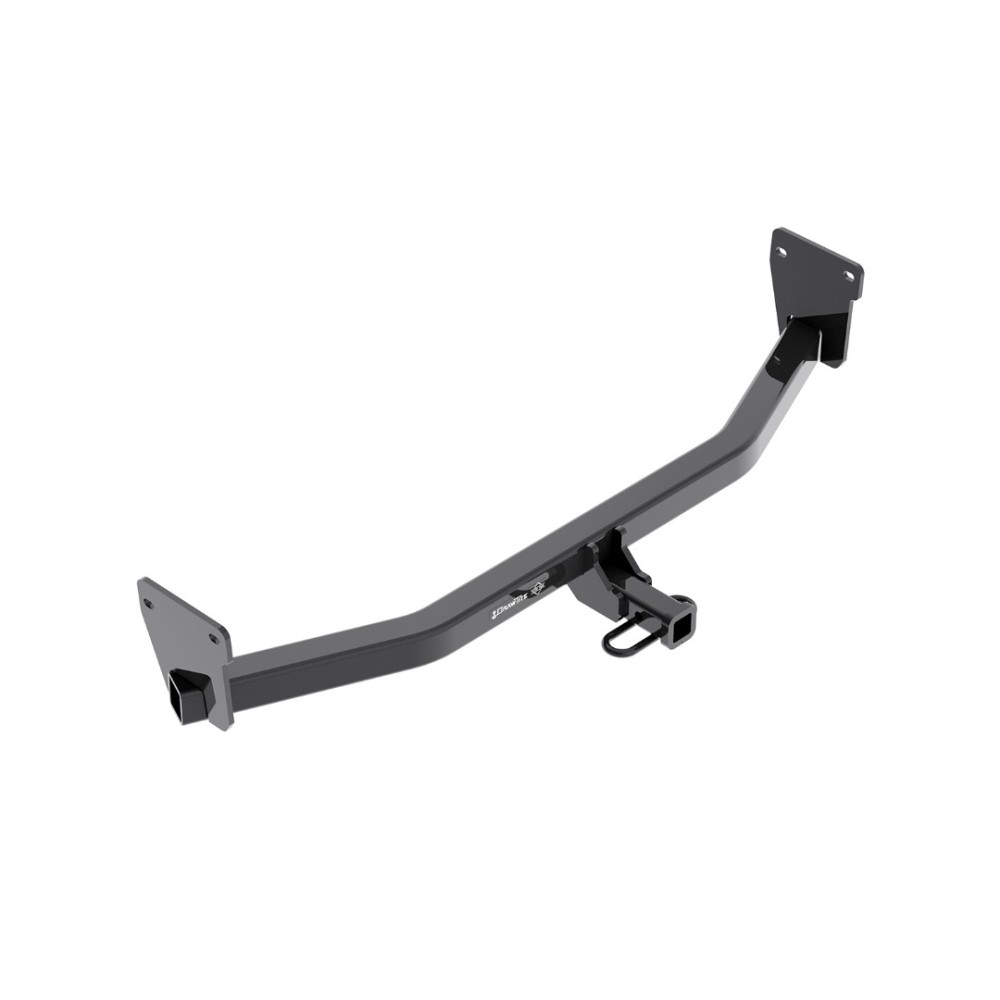

Custom Fit Trailer Hitch

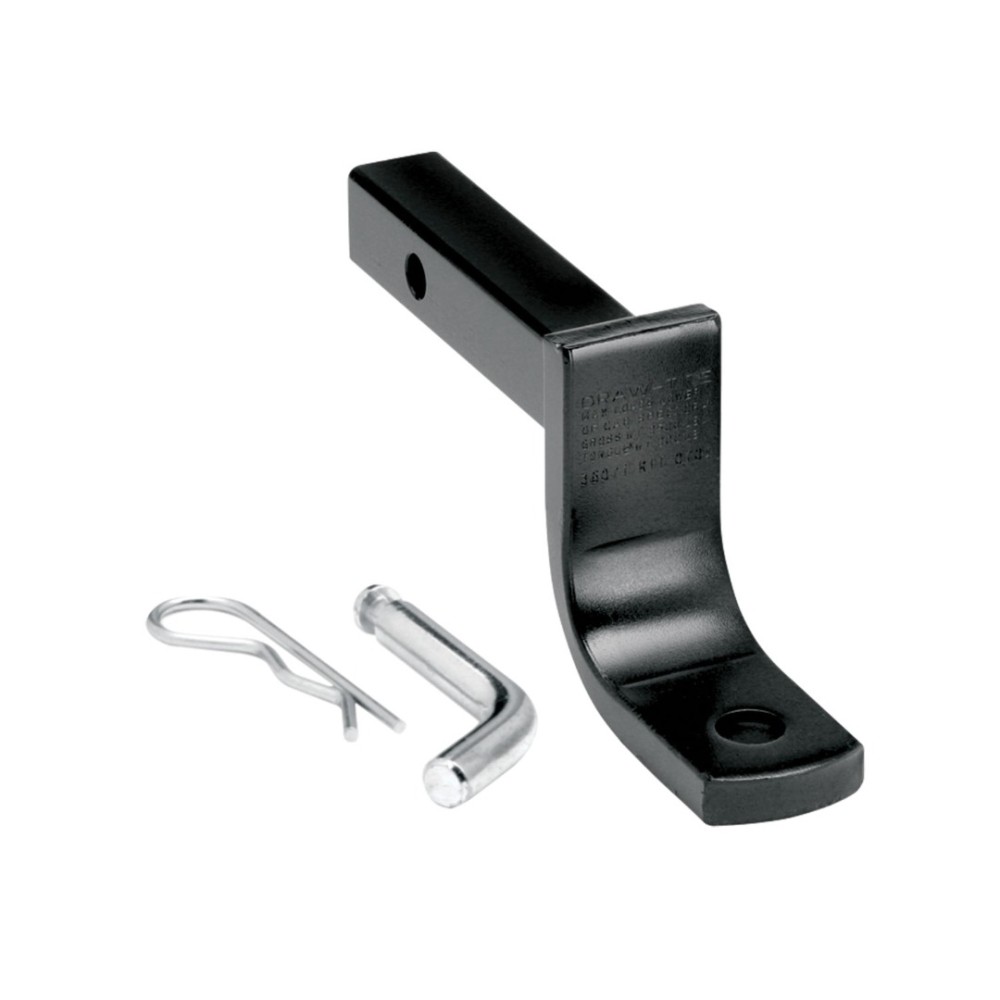

Draw-Bar w/ Pin/Clip

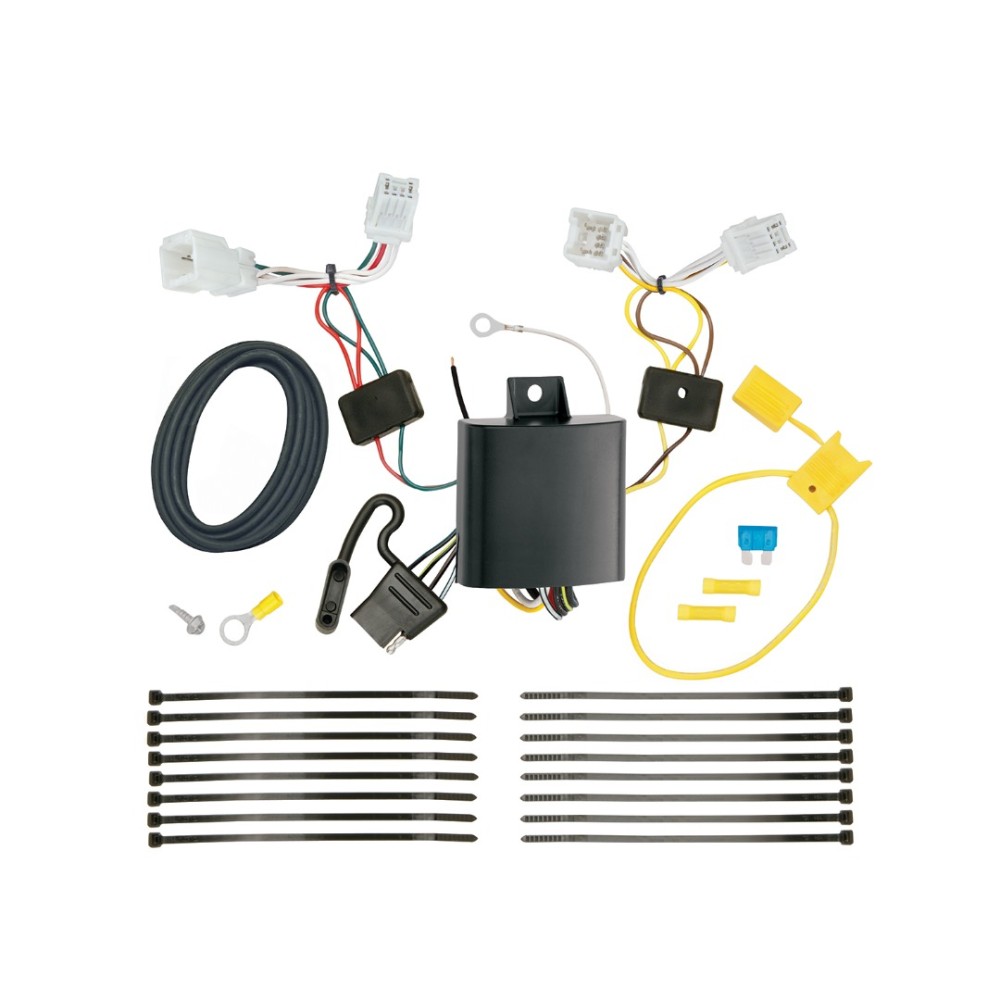

Wiring Harness (Plug & Play)
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions


Fits The Following Vehicles


​2017 - 2024    KIA, Niro, Except Plug-In-Hybrid


Trailer Hitch Specs:

Part Number 366000
Brand Draw-Tite
Finish Black Powdercoat
Class 2
Receiver size opening 1-1/4"
Max gross trailer weight 3,500 lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 350 lbs
Warranty Lifetime
Installation Instructions



Wiring Kit Specs:

Part Number 118749
Brand Tekonsha
Warranty 1 Year
Installation Instructions



Hitch Ball Specs:

Part Number 63810
Brand Draw-Tite
Size 1-7/8" x 3/4" x 1-1/2"
Towing Capacity 2,000 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 160 ft. lbs
Ball Hole Diameter 3/4"
Warranty Lifetime

Questions or Comments? Call 702-374-8999


Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024

Specification
Attachment Location Rear
Color Black
Drawbar Included Yes
Drilling Required No
Gross Towing Weight 3,500 lbs.
Hitch Class II
Material Steel
Maximum Tongue Weight 350 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 1.25 in.
Receiver Type Square Tube
