Trailer Tow Hitch For 17‑23 Tesla 3 w/ Draw Bar Kit Class 1 1‑1/4" Receiver Draw‑Tite

Name: Trailer Tow Hitch For 17-23 Tesla 3 w/ Draw Bar Kit Class 1 1-1/4" Receiver Draw-Tite - 250050
Brand: Draw-Tite
Price: 347.31 USD
Availability: InStock

Model: 250050

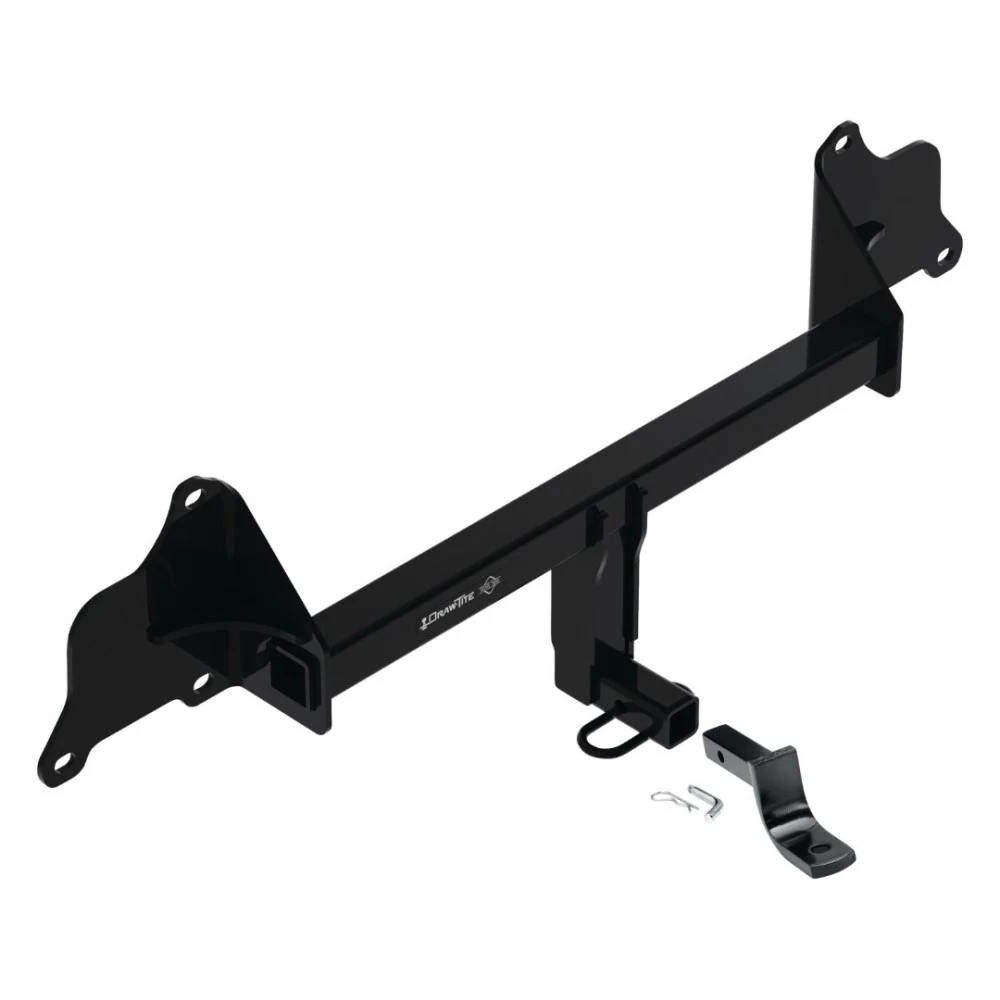

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions

Fits The Following Vehicles:

2017 - 2023 Tesla, 3, All Styles

Trailer Hitch Specs:

Part Number	250050
Brand	Draw-Tite
Finish	Black Powdercoat
Class	I
Receiver size opening	1-1/4
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive.

Partial list of fitment years: 17 18 19 20 21 22 23 2017 2018 2019 2020 2021 2022 2023

See Full Description

$347 ³¹ $579.94 40% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$579.94 $347 ³¹

Pay in 4 interest-free installments of $86.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $86.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 250050
Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount

Compatibility Chart

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	Yes
Drilling Required	No
Gross Towing Weight	2,000 lbs.
Hitch Class	I
Material	Steel
Maximum Tongue Weight	200 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25in.
Receiver Type	Square

Be the first to ask a question.

Description

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions

Fits The Following Vehicles:

2017 - 2023 Tesla, 3, All Styles

Trailer Hitch Specs:

Part Number	250050
Brand	Draw-Tite
Finish	Black Powdercoat
Class	I
Receiver size opening	1-1/4
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: Trailer Tow Hitch For 17-23 Tesla 3 w/ Draw Bar Kit Class 1 1-1/4 Receiver Draw-Tite , 250050 , Tesla

Get Expert Help

Trailer Tow Hitch For 17-23 Tesla 3 w/ Draw Bar Kit Class 1 1-1/4" Receiver Draw-Tite Install Notes

Installation Instructions for Tesla Model 3 (2017-Present)

Part Numbers:

25005
78298
CQT25005

Tools Required:

Safety Glasses
Ratchet
Torque Wrench
Sockets: 8mm, 10mm, 15mm
6" Socket Extension
Plastic Trim Tools
Flat Head Screwdriver
Star Drivers (T25)

Weight Capacities:

Weight Carrying:
- Max Gross Trailer Weight: 2,000 lbs (907 kg)
- Max Tongue Weight: 200 lbs (91 kg)
Weight Distributing:
- Not Applicable

Installation Time:

Estimated: 120 minutes

Step-by-Step Instructions:

1. Remove Trunk Side Panels:

Inside the trunk, use plastic trim tools to open the driver-side panel to access the taillight. Repeat for the passenger side.
Remove (2) plastic trunk stops on top of the taillights by turning counterclockwise.

2. Remove Taillights:

Unplug the wiring harness from the taillight inside the trunk.
Use an 8mm socket to remove (2) nuts securing the taillight.
Gently remove the taillight and set it aside. Use a 10mm socket to remove (1) additional screw behind the taillight. Repeat for the other side.

3. Loosen Wheel Well Liner:

Use a flat head screwdriver and T25 bit to separate the driver-side wheel well liner from the rear fascia.
Remove (3) plastic rivets and (1) Torx screw from the rear wheel fender. Repeat for the passenger side.

4. Loosen Rear Underbody Appearance Panel:

Disconnect the bottom of the fascia and appearance panel from the vehicle body.
Use a flat head screwdriver to dislodge (2) plastic covers.
Remove (7) screws from the panel (some models may have an 8th screw).

5. Remove Rear Bumper Fascia:

Use plastic trim tools to remove the fascia starting at the outer edges near the wheel wells.
Gently pull the fascia away and disconnect any wiring harness. Set it aside.

6. Remove Impact Bar Sensor:

Use a 10mm socket to remove (5) screws from the sensor on top of the impact bar.
Let the sensor hang down to gain access to the base plates of the impact bar. Save the screws for reinstallation.

7. Remove Impact Bar:

Use a 15mm socket to remove (6 or 8) nuts securing the impact bar. Save the nuts for hitch installation.
Remove the impact bar and return it to the vehicle owner.

8. Install Hitch:

Raise the hitch into position and loosely secure it with the factory nuts.
Use a torque wrench to tighten all 10mm fasteners to 38 lb-ft (52 N·m).

9. Remove Bottom Panel:

Use a flat head screwdriver to remove (2) screws and remove the plastic panel for access.

10. Reinstall Components:

Reinstall the fascia, sensor piece, wiring harness, underbody appearance panel, fasteners, wheel liners, and taillights removed in previous steps.

Safety Notes:

Regularly inspect the hitch and all fasteners for proper tightness.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fume entry.
Replace any damaged hitch or ball immediately.
Always wear safety glasses and observe safety precautions when working beneath a vehicle.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type: Class I
Compliance: This product meets safety specifications and requirements per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
