Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball

Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Trailer Tow Hitch For 18-21 Chevy Equinox Except Premier or Models w/1.6L Diesel Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
$292.86
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 366420 118750 63821

Applies to this product only

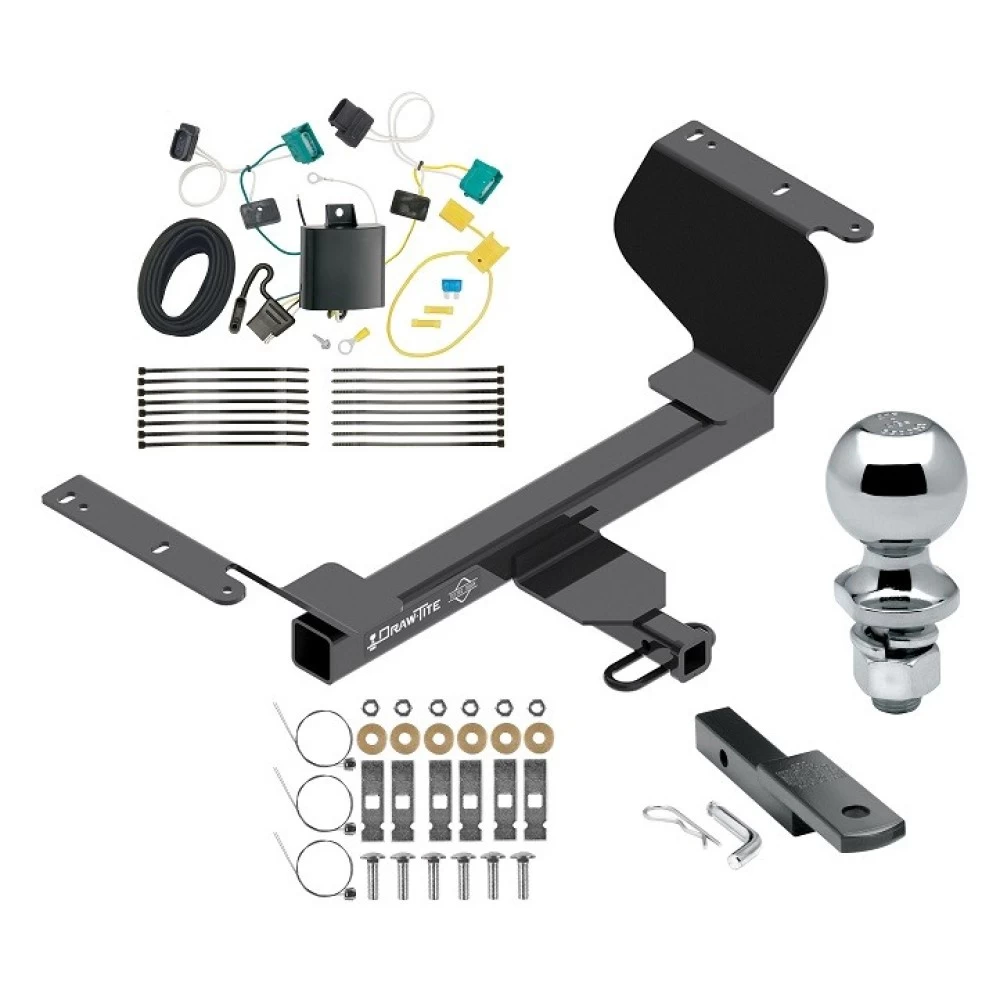

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
2" Zinc Ball

Installation Hardware
Installation Instructions


Fits The Following Vehicles

2018 - 2021 Chevrolet, Equinox, Except Premier or Models w/1.6L Diesel

Trailer Hitch Specs:
Part Number 366420
Brand Draw-Tite
Finish Black Powdercoat
Class 2
Receiver size opening 1-1/4"
Max gross trailer weight 3,500lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 350 lbs
Warranty Lifetime
Installation Instructions

Wiring Kit Specs:
Part Number 118750
Brand Tekonsha
Warranty 1 Year
Installation Instructions


Hitch Ball Specs:
Part Number 63821
Brand Draw-Tite
Size 2" x 3/4" x 1-1/2"
Towing Capacity 3,500 lbs. GTW
Material Zinc
Torque Torque to 160 ft. lbs
Shank Diameter 3/4"
Warranty Lifetime



Questions or Comments? Call 702-374-8999


Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 18 19 20 21 2018 2019 2020 2021

Specification
Attachment Location Rear
Color Black
Drawbar Included Yes
Drilling Required No
Gross Towing Weight 3,500 lbs.
Hitch Class II
Material Steel
Maximum Tongue Weight 350 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 1.25 in.
Receiver Type Square Tube

Write a review

Note: HTML is not translated!
Rating
Bad Good

Be the first to ask a question.

Tags: 366420 , 118750 , 63820 , Draw-Tite , Trailer , Tow , Hitch , 18-21 , Chevy , Equinox , Except , Premier , or , Models , w/1.6L , Diesel , Class , 2 , Complete , Package , Wiring , Draw , Bar , Kit , and , 2" , Ball , 18 , 19 , 20 , 21 , 2018 , 2019 , 2020 , 2021
