Trailer Tow Hitch For 18-24 Chevy Equinox Premier GMC Terrain Class 2 Platform Style 2 Bike Rack Hitch Lock and Cover

Trailer Tow Hitch For 18‑24 Chevy Equinox Premier GMC Terrain Class 2 Platform Style 2 Bike Rack Hitch Lock and Cover

Model: 36642 63134 580407 2211

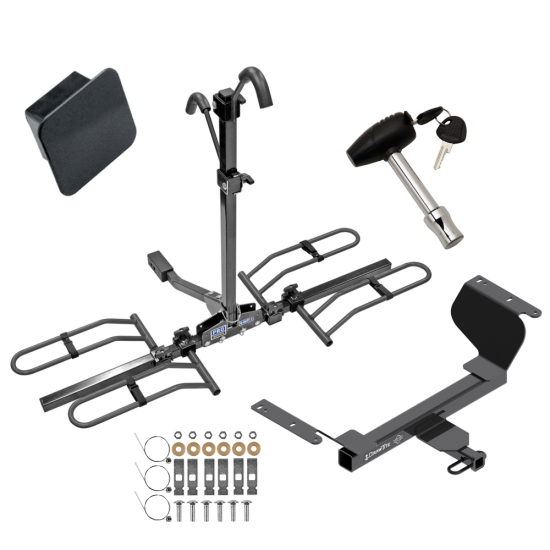

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2018 - 2024 Chevrolet, Equinox, Except Models w/1.6L Diesel
2018 - 2024 GMC, Terrain, Except Diesel

Trailer Hitch Specs:

Part Number	36642
Brand	Draw-Tite
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	350 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Rubber Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	35 lbs.
Warranty	1 Year Warranty
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024

See Full Description

$392 ⁴⁵ $629.76 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$629.76 $392 ⁴⁵

Pay in 4 interest-free installments of $98.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $98.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 36642 63134 580407 2211
Includes: Class 2 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover

Compatibility Chart

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	No
Drilling Required	No
Gross Towing Weight	3,500 lbs.
Hitch Class	II
Material	Steel
Maximum Tongue Weight	350 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	36642
Brand	Draw-Tite
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	350 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Rubber Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	35 lbs.
Warranty	1 Year Warranty
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024

Get Expert Help

Trailer Tow Hitch For 18-24 Chevy Equinox Premier GMC Terrain Class 2 Platform Style 2 Bike Rack Hitch Lock and Cover Install Notes

Installation Instructions for Chevrolet Equinox and GMC Terrain (2018-Current)

Part Numbers:

36642
06180
CQT36642

Wiring Access Location:

SUV1, SUV2

Tools Required:

Ratchet
Torque Wrench
Safety Glasses
Flat Head Screwdriver
15mm Socket
T15 Torx Bit
6" Socket Extension
Pliers
Lubricant or Soapy Water

Installation Time:

Estimated: 35 minutes (for professional installers)

Step-by-Step Instructions:

Lower Muffler:
- Spray lubricant on the rubber isolators to make them easier to remove.
- Remove two (2) screws from the bottom of the rear fascia using a T15 Torx bit.
- Remove two (2) bolts per exhaust hanger bracket using a 15mm socket and detach the brackets from the hanger tabs.
- Remove the rubber isolator from the hanger in front of the muffler.
- Lower the exhaust one side at a time by pulling on the rear fascia for clearance.
- On the passenger side, if additional clearance is needed, pull the wire harness off the frame and reinstall it after hitch installation.
Install Hardware:
- Feed the coiled end of the pull wire through an attachment hole in the frame and out of the access hole.
- Attach a spacer and carriage bolt to the pull wire and pull the hardware into position (three per side).
- Leave the pull wires attached until the hitch is in place to prevent the hardware from being pushed back into the frame.
Position and Secure the Hitch:
- Raise the hitch into position, being careful not to push the hardware back into the frame.
- Loosely install the provided conical washers (teeth side facing the hitch) and hex nuts onto the carriage bolts.
Reattach Exhaust:
- Raise the muffler back into place and reattach the brackets and rubber isolators by reversing the steps from Step 1.
Tighten Fasteners:
- Use a torque wrench to tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).

Torque Specifications:

7/16"-14 GR5 bolts: 50 ft-lb (68 N*m)

Hardware List:

(6) Carriage Bolts, 7/16"-14 x 1.50" GR5
(6) Spacer Blocks, 1/4" x 7/8" x 3"
(6) Conical Washers, 7/16"
(6) Hex Nuts, 7/16"-14
(6) Pull Wires, 7/16"

Safety Notes:

Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath the vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Max Gross Trailer Weight: 3,500 lb (1,589 kg)
Max Tongue Weight: 350 lb (159 kg)

Additional Notes:

Authorized Drawbar Kit: 36061 (sold separately; must be used in the RISE position only)
Fastener Kit: 36642F
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
