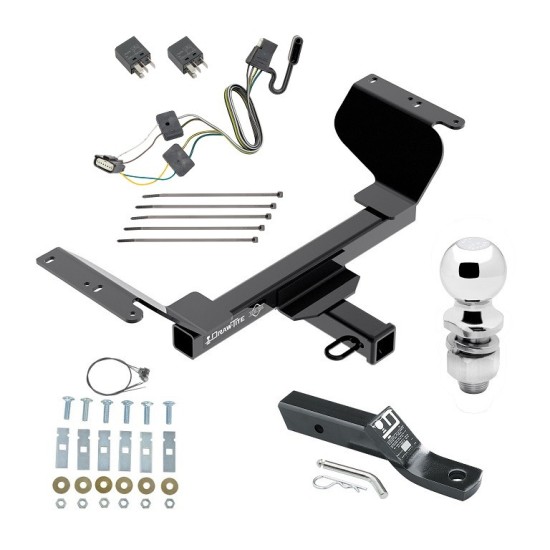

Trailer Tow Hitch For 18‑24 GMC Terrain Except Diesel with Tow Prep Package w/ Wiring and 2" Ball
Model: 76419 118285 23 63845Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2018 - 2024 GMC, Terrain, Except Diesel, with Tow Prep Package
Trailer Hitch Specs:
Wiring Kit Specs:
Part Number | 118285 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Ball Mount Specs:
Fits | 2" x 2" Trailer Hitch Receiver |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Length | 9" From Center of Pin Hole to Center of Ball Hole |
Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
Drop | 2" From inside top of hitch opening |
Rise | 3/4" from top of inside of hitch opening |
Warranty | Lifetime |
Hitch Ball Specs:
Part Number | 63845 |
Brand | Draw-Tite |
Size | 2" x 1" x 2-1/8" |
Towing Capacity | 7,500 lbs. GTW |
Material | Chrome (Cold forged for superior strength) |
Torque | Torgue to 250 ft. lbs |
Ball Hole Diameter | 1" |
Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$258 86 $380.80 32% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$380.80 $258 86
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $64.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76419 118285 23 63845
- Includes: Class 3 Trailer Tow Hitch, Tow Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2018 - 2024 GMC, Terrain, Except Diesel, with Tow Prep Package
Trailer Hitch Specs:
Wiring Kit Specs:
Part Number | 118285 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Ball Mount Specs:
Fits | 2" x 2" Trailer Hitch Receiver |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Length | 9" From Center of Pin Hole to Center of Ball Hole |
Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
Drop | 2" From inside top of hitch opening |
Rise | 3/4" from top of inside of hitch opening |
Warranty | Lifetime |
Hitch Ball Specs:
Part Number | 63845 |
Brand | Draw-Tite |
Size | 2" x 1" x 2-1/8" |
Towing Capacity | 7,500 lbs. GTW |
Material | Chrome (Cold forged for superior strength) |
Torque | Torgue to 250 ft. lbs |
Ball Hole Diameter | 1" |
Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Specification | |
Attachment Location | Rear |
Ball Mount Included | Yes |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 4,500 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 4,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 675 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 675 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Get Expert Help
Trailer Tow Hitch For 18-24 GMC Terrain Except Diesel with Tow Prep Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for 2018-Current Chevrolet Equinox and GMC Terrain
Part Numbers:
- 76419
- 84419
- CQT76419
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 15 mm, 11/16”
- T15 Torx Bit Socket
- 6-inch Socket Extension
- Exhaust Removal Pliers
Step-by-Step Instructions:
-
Lower Muffler:
- Spray lubricant on the rubber hangers to ease removal.
- Ensure the exhaust is supported before removing the rubber hangers.
- Remove the following:
- (2) screws from the bottom of the rear fascia using a T15 Torx bit.
- (2) bolts from each rear exhaust hanger bracket using a 15 mm socket.
- Rubber isolator from the hanger in front of the muffler.
- Lower the exhaust one side at a time by gently pulling on the rear fascia.
- If needed, pull the wire harness off the passenger-side frame for additional clearance. Reinstall it after hitch installation.
-
Install Hardware:
- Feed the coiled end of the pull wire through an attachment hole in the frame and out through the access hole.
- Attach carriage bolts and spacers to the pull wire and pull them into position (3 per side). Leave the pull wire attached until the hitch is raised.
-
Install Hitch:
- Carefully raise the hitch into position without pushing the hardware back into the frame.
- Loosely install conical washers (teeth side toward the hitch) and hex nuts onto the carriage bolts.
-
Reinstall Muffler:
- Reverse the steps from Step 1 to reinstall the muffler.
-
Torque Fasteners:
- Tighten all 7/16-14 GR5 fasteners to 50 ft-lbs (68 Nm) using a torque wrench.

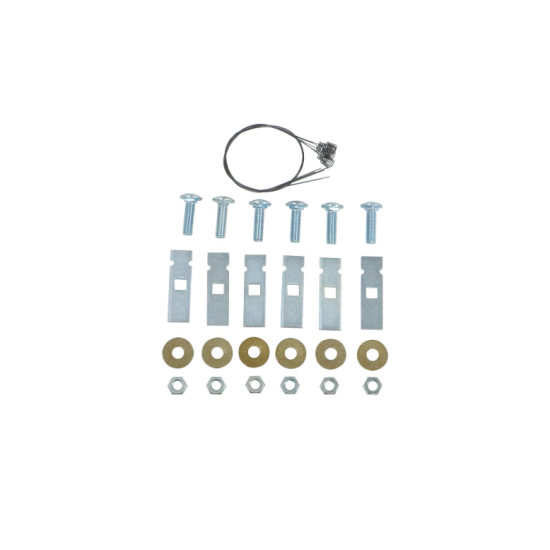

Hardware List:
- (6) Carriage Bolt 7/16”-14 x 1.5” GR5
- (6) Spacer Block 1/4” x 7/8” x 3” (PN: HE-2370-000)
- (6) Conical Washer 7/16” (PN: 01292007)
- (6) Hex Nut 7/16”-14
- (6) Pull Wire 7/16” (PN: 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch periodically to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Observe all safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg) tongue weight.
- Weight Distributing Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 35 minutes.
- For step-by-step photo instructions, scan the QR code provided in the manual.
Installation Instructions for T-One® T-Connector for GMC Terrain and Chevrolet Equinox
Part Numbers:
- 118285
Tools Required:
- Trim Panel Puller
- Test Probe
Step-by-Step Instructions:
-
Access the Fuse and Relay Panel:
- Open the rear lift gate and remove the access panel on the driver’s side to locate the fuse and relay panel.
- Locate relay positions K1 and K3:
- If relays are present, the included relays will not be used.
- If no relays are present, install the included relays into positions K1 (Trailer Stop/Turn) and K3 (Trailer Stop/Turn).
Note: If no relay provisions are present (terminals missing from the relay cavity), the T-One without the tow prep package is required.
-
Locate the Trailer Harness Connector:
- Under the vehicle, behind the rear bumper on the driver’s side, locate the trailer harness connector.
-
Remove the Protective Cap:
- Remove the protective cap from the connector and store it in the glove compartment along with the installation instructions.
- Ensure the mating surfaces of the connectors are clean and free of dirt. Clean if necessary.
-
Connect the 6-Pin Tow-Plug Adapter:
- Insert the 6-pin tow-plug adapter into the connector and lock it into place.
- Ensure all connectors are fully inserted and the locking tabs are secure.
-
Route and Secure the T-Connector Harness:
- Route the T-Connector harness rearward to the back of the bumper fascia.
- Secure the remainder of the T-One® Connector harness with the provided cable ties, avoiding areas that could pinch, cut, or melt the wire.
-
Mount the 4-Flat Connector:
- Mount the 4-flat connector end in an accessible location using a bracket or electrical box (not included).
-
Test and Verify Installation:
- Ensure all connections are complete for the T-One® Connector to function properly.
- Test the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or the towing capacity specified in the vehicle owner’s manual.
- Always wear safety glasses and follow all safety precautions during installation.
- Read and follow all warnings and instructions included with the purchase and those printed on the tow vehicle’s battery.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
