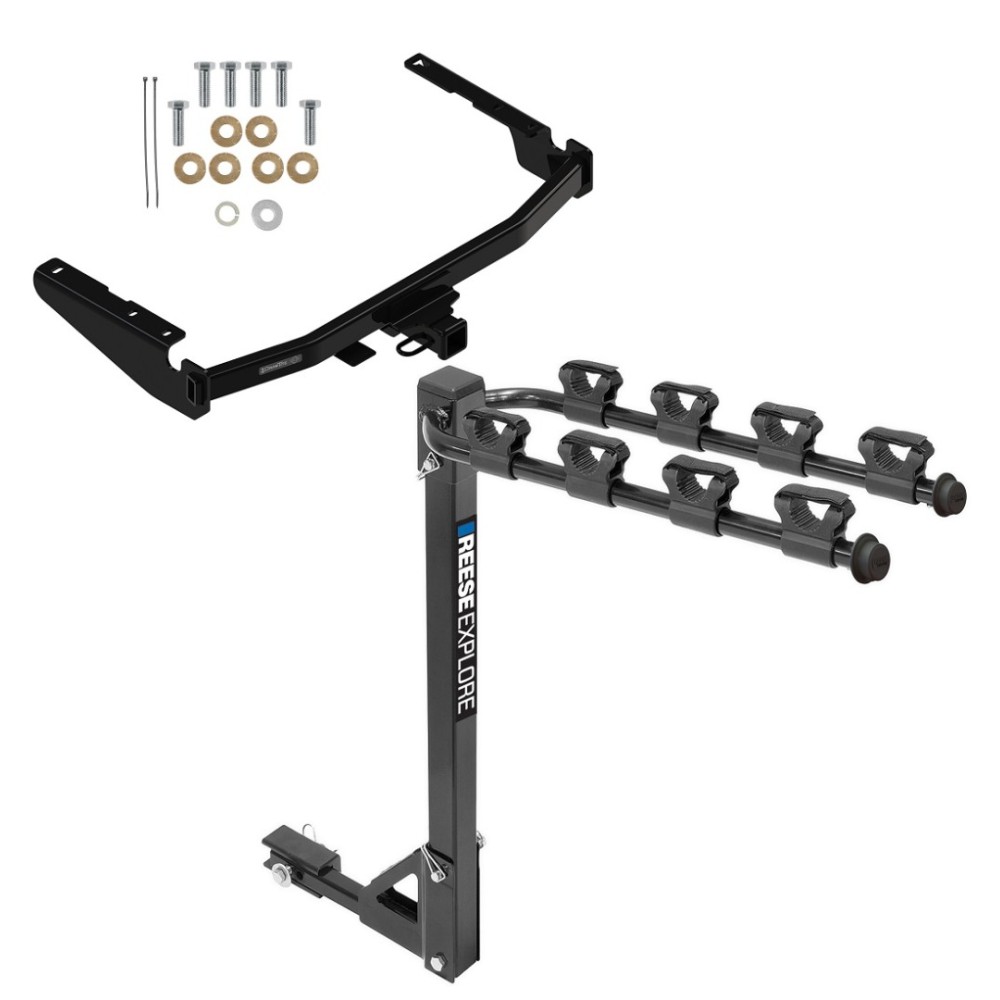

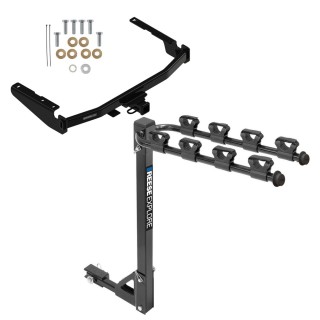

Trailer Tow Hitch For 18‑22 Lexus Rx350L 14‑24 Toyota Highlander tilt away adult or child arms fold down carrier
Model: 76336 1393100GCustom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2018 - 2022 Lexus, RX350L, Except with Twin-Tip Exhaust
2014 - 2024 Toyota, Highlander, Except with Twin-Tip Exhaust
Trailer Hitch Specs:
| Part Number | 76336 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3/4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
$420 79 $618.71 32% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$618.71 $420 79
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $105.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76336 1393100G
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2018 - 2022 Lexus, RX350L, Except with Twin-Tip Exhaust
2014 - 2024 Toyota, Highlander, Except with Twin-Tip Exhaust
Trailer Hitch Specs:
| Part Number | 76336 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3/4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
Get Expert Help
Trailer Tow Hitch For 18-22 Lexus Rx350L 14-24 Toyota Highlander tilt away adult or child arms fold down carrier Install Notes
Installation Instructions for 2014-Current Toyota Highlander and 2018-Current Lexus RX350L
Part Numbers:
- 76336
- 84336
- CQT76336
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 12mm, 17mm, 19mm
- Socket Extension
- Tape Measure
- Marker
- Utility Knife
- Flat Head Screwdriver
- Phillips Screwdriver
- Hack Saw
- Exhaust Removal Pliers
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire for installation. Refer to the vehicle owner's manual for instructions.
-
Trim Exhaust Flap:
- Locate the flap near the exhaust muffler outlet and trim as needed.
-
Remove Underbody Panels:
- If present, remove plastic appearance panels covering the driver and passenger side frame rails.
- Use a small screwdriver to remove the plastic rivets fastening fascia tabs to the appearance panel.
- The passenger side panel can be reinstalled; return the driver's side panel and fasteners to the owner or trim as needed.
-
Trim Fascia Tabs:
- Locate the four plastic fascia tabs at the rear and remove the plastic rivets.
- Trim the plastic tabs to allow room for the hitch.
-
Remove Tow Hooks:
- Remove the tow hooks from each frame rail if present, and return them to the vehicle owner.
-
Remove Plugs:
- Remove plastic and rubber plugs from the bottom of both frame rails. Ensure weldnuts are free of rust, debris, and excess caulking.
-
Raise Hitch into Position:
- Align the hitch over the existing weldnuts, ensuring hoses on the outside of the passenger frame rail are not pinched.
- Install M12 bolts and conical washers (teeth side toward hitch) to the frame rails.
-
Tighten Fasteners:
- Tighten all M12 CL8.8 bolts to 76 ft-lbs (103 Nm) using a torque wrench.
-
Reinstall Panels and Spare Tire:
- Reinstall the trimmed underbody panels using the original hardware and reinstall the spare tire.
Hardware List:
- (6) Bolt M12x1.25x35 CL8.8
- (6) Conical Washer 1/2" (PN: 01292008)
- (1) Flat Washer 7/16" Heavy (PN: 1528)
- (1) Lock Washer 1/2" Plated (PN: 01129008)
- (2) Cable Tie 11"
Safety Notes:
- Always wear safety glasses when installing the hitch.
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- Replace damaged hitches or balls immediately.
- Do not cut access or attachment holes with a torch.
- Observe all safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 5,000 lbs (2,270 kg) trailer weight, 500 lbs (227 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
