Trailer Tow Hitch For 18-23 BMW X2 2" Receiver w/ 1-7/8" and 2" Ball

Trailer Tow Hitch For 18-23 BMW X2 2" Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 18-23 BMW X2 2" Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 18-23 BMW X2 2" Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 18-23 BMW X2 2" Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 18-23 BMW X2 2" Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 18-23 BMW X2 2" Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 18-23 BMW X2 2" Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 18-23 BMW X2 2" Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 18-23 BMW X2 2" Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 18-23 BMW X2 2" Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 18-23 BMW X2 2" Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 18-23 BMW X2 2" Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 18-23 BMW X2 2" Receiver w/ 1-7/8" and 2" Ball
$264.73
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 76200 23 63845 63816

Applies to this product only

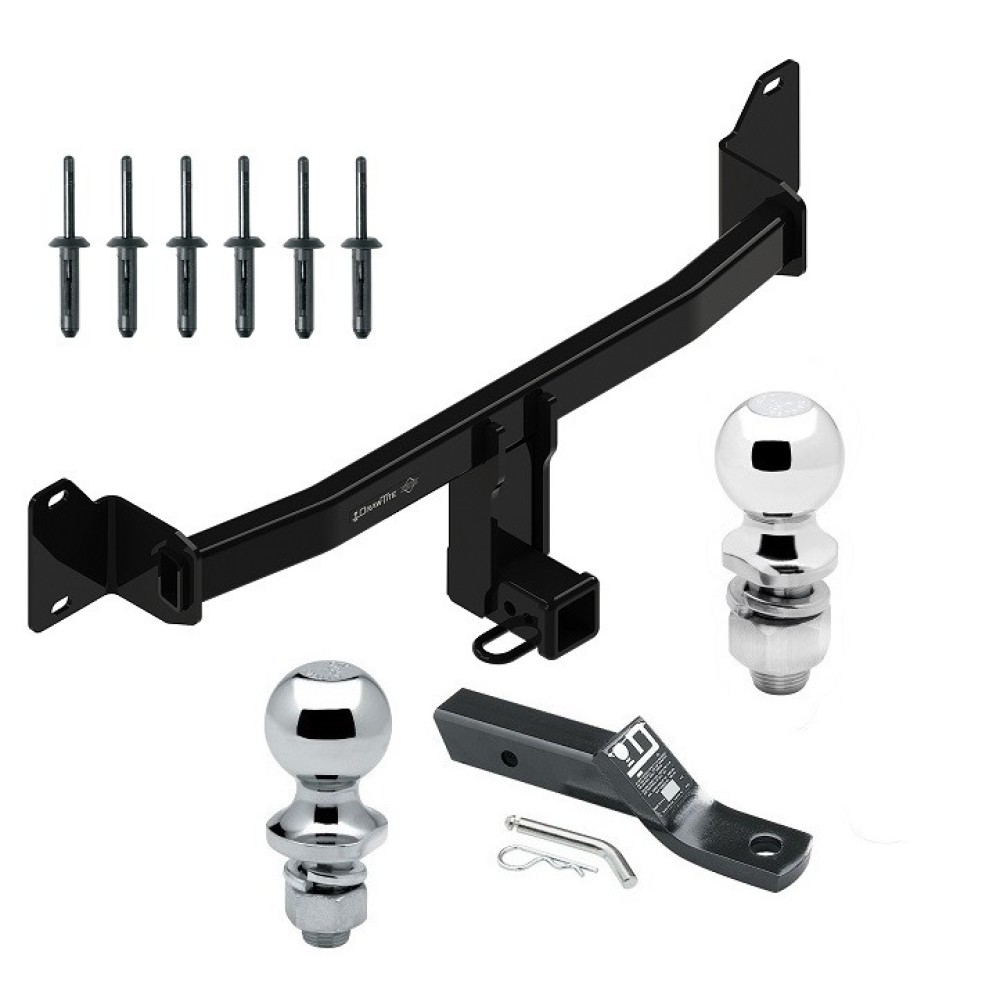

Includes Everything Pictured:
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball

Installation Hardware
Installation Instructions


Fits The Following Vehicles
2018 – 2023 BMW, X2, All Styles

Trailer Hitch Specs:
Part Number 76200
Brand Draw-Tite
Finish Black Powdercoat
Class 3/4
Receiver size opening 2"
Max gross trailer weight 3,500 lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 525 lbs
Warranty Lifetime
Installation Instructions



Ball Mount Specs:
Fits 2" x 2" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity 7,500 lb Gross Towing Weight
750 lb Tongue Weight
Drop 2" From inside top of hitch opening
Rise 3/4" from top of inside of hitch opening
Warranty Lifetime


Hitch Ball Specs:



Part Number 63816
Brand Draw-Tite
Size 1-7/8" x 1" x 2-1/8"
Towing Capacity 2,000 lbs. GTW
Material Chrome
Torque torgue to 160 ft. lbs
Ball Hole Diameter 1"
Warranty Lifetime

Hitch Ball Specs:



Part Number 63845
Brand Draw-Tite
Size 2" x 1" x 2-1/8"
Towing Capacity 7,500 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 250 ft. lbs
Ball Hole Diameter 1"
Warranty Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.

Partial list of fitment years: 18 19 20 21 22 23 2018 2019 2020 2021 2022 2023
Specification
Attachment Location Rear
Ball Mount Included Yes
Color Black
Drilling Required No
Gross Towing Weight 3,500 lbs.
Hitch Class III
Material Steel
Maximum Tongue Weight 525 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Square Tube
