Reese Trailer Tow Hitch For 18-24 Subaru Impreza 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets Complete Package w/ Wiring Draw Bar and 1-7/8" Ball

Reese Trailer Tow Hitch For 18-24 Subaru Impreza 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Reese Trailer Tow Hitch For 18-24 Subaru Impreza 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Reese Trailer Tow Hitch For 18-24 Subaru Impreza 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Reese Trailer Tow Hitch For 18-24 Subaru Impreza 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Reese Trailer Tow Hitch For 18-24 Subaru Impreza 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Reese Trailer Tow Hitch For 18-24 Subaru Impreza 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Reese Trailer Tow Hitch For 18-24 Subaru Impreza 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Reese Trailer Tow Hitch For 18-24 Subaru Impreza 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Reese Trailer Tow Hitch For 18-24 Subaru Impreza 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Reese Trailer Tow Hitch For 18-24 Subaru Impreza 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Reese Trailer Tow Hitch For 18-24 Subaru Impreza 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Reese Trailer Tow Hitch For 18-24 Subaru Impreza 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Reese Trailer Tow Hitch For 18-24 Subaru Impreza 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
$336.30
  • Stock: In Stock
  • Brand: Reese
  • Model: 06813 36051 118744 63810

Applies to this product only

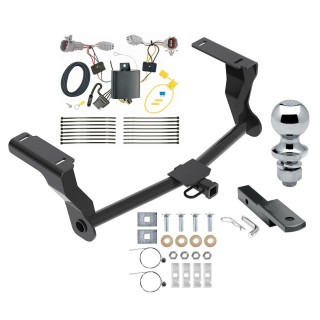

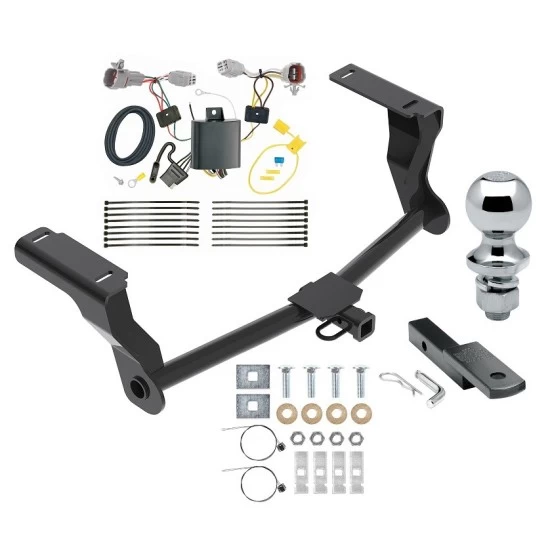

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions


Fits The Following Vehicles

2018 - 2024  Subaru, Impreza, 5 Dr. Wagon Except WRX STi & w/Quad Exhaust Outlets

Trailer Hitch Specs:

Part Number 06813
Brand Reese
Finish Black Powdercoat
Class 2
Receiver size opening 1-1/4"
Max gross trailer weight 3,500 lbs
Max Tongue Weight 350 lbs
Warranty Lifetime
Installation Instructions

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)


Specifications:

Fits 1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 7" From Center of Pin Hole to Center of Ball Hole
Rise 5/8" From inside top of hitch opening
Towing Capacity in Rise Position 3,500 lb Gross Towing Weight
350 lb Tongue Weight
Drop 1-1/4" From inside top of hitch opening
Towing Capacity in Drop Position 3,500 lb Gross Towing Weight
350 lb Tongue Weight
Ball Hole Diameter 3/4"
Pin hole diameter 1/2"
Warranty Limited Lifetime

Wiring Kit Specs:
Part Number 118744
Brand Tekonsha
Warranty 1 Year
Installation Instructions

Hitch Ball Specs:

Part Number 63810
Brand Draw-Tite
Size 1-7/8" x 3/4" x 1-1/2"
Towing Capacity 2,000 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 160 ft. lbs
Ball Hole Diameter 3/4"
Warranty Lifetime



Questions or Comments? Call 702-374-8999

REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.

Partial list of fitment years: 18 19 20 21 22 24 2018 2019 2020 2021 2022 2024

Specification
Attachment Location Rear
Color Black
Drawbar Included Yes
Drilling Required No
Gross Towing Weight 3,500 lbs.
Hitch Class II
Material Steel
Maximum Tongue Weight 300 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 1.25 in.
Receiver Type Round Tube
