Trailer Tow Hitch For 18-24 Volkswagen Tiguan 19-24 Audi Q3 Hidden Removable 2" Receiver Class 3 Draw-Tite

Trailer Tow Hitch For 18‑24 Volkswagen Tiguan 19‑24 Audi Q3 Hidden Removable 2" Receiver Class 3 Draw‑Tite

Model: 76918

This Hitch Fits The Following Vehicles:

2019 - 2024 Audi, Q3, All Styles
2018 - 2024 Volkswagen, Tiguan, All Styles

Trailer Hitch Specs:

Part Number	76918
Brand	Draw-Tite
Finish	Black Powdercoat
Class	III
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	350 lbs
Warranty	Lifetime
Installation Instructions

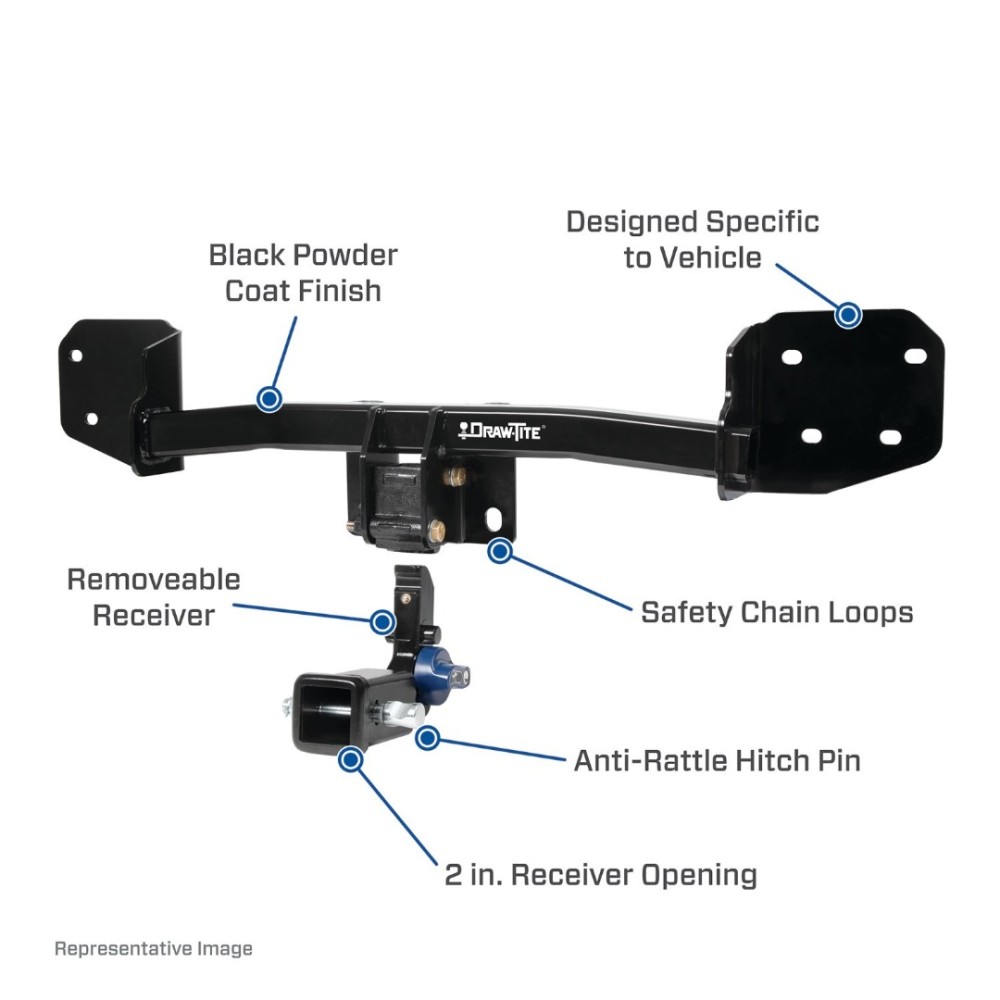

A Hitch only when you need it!
Now you can keep that fresh off the factory floor look and only see the receiver when you need to. The new Hidden Hitch® by Draw-Tite® Hitch is designed to be quickly and easily removed when not in use. Our patented design allows for mounting of cargo carriers, bike racks and even light duty towing! (up to 3,500 lbs. gross trailer weight)

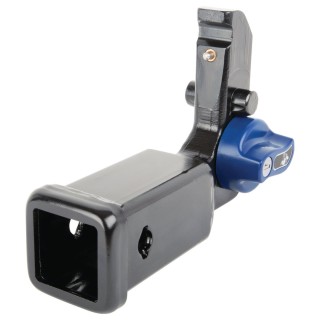

Includes anti-rattle hitch pin to tightly secure accessories in receiver box

Questions or Comments? Call 702-374-8999

Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive.

Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024

See Full Description

$499 ¹⁷ $779.46 36% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$779.46 $499 ¹⁷

Pay in 4 interest-free installments of $124.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $124.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 76918

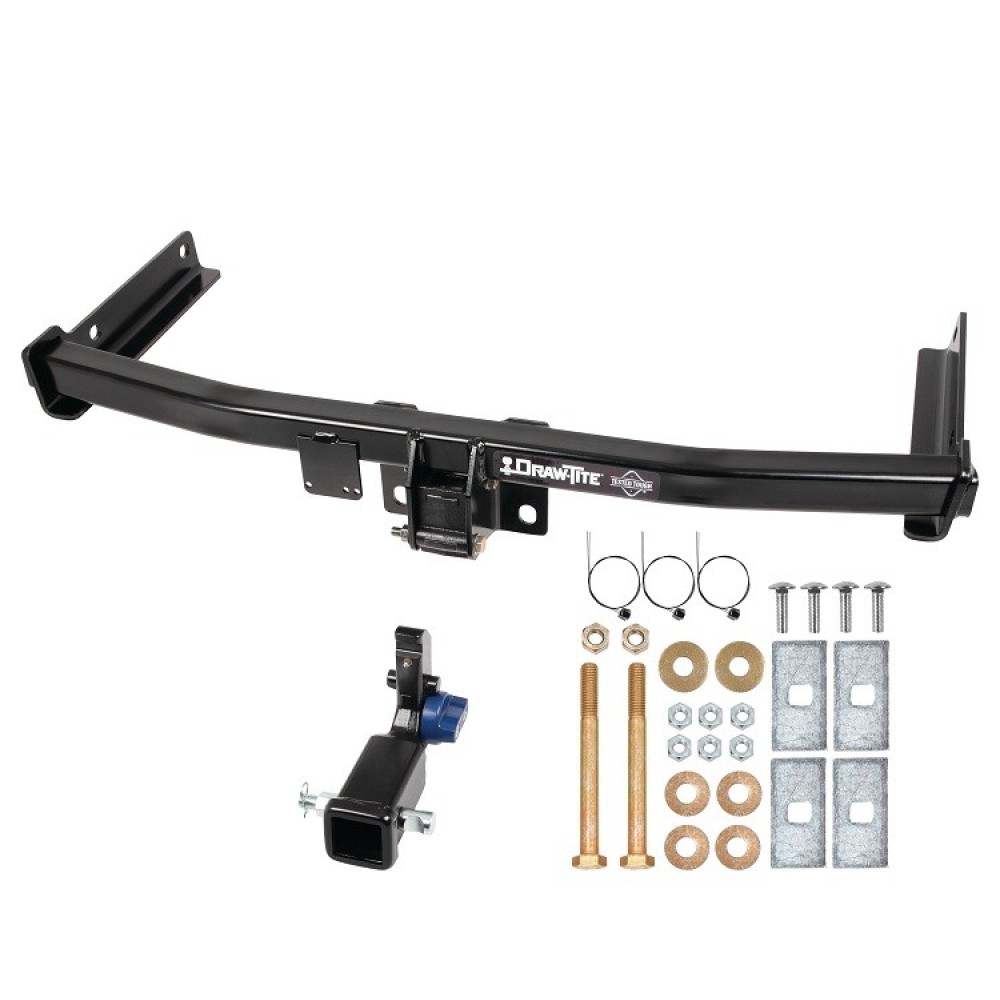

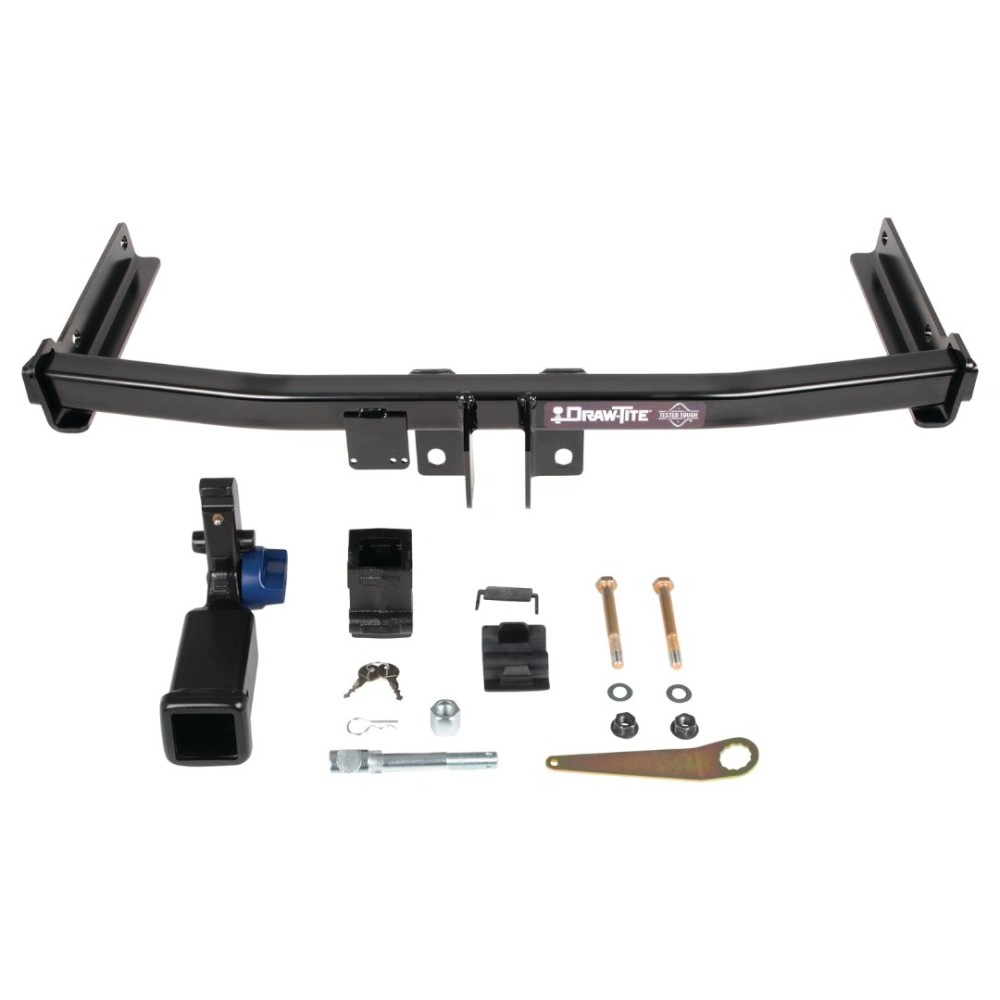

Includes: Hidden Hitch Completely Hidden Trailer Tow Hitch 2 Inch Removable Receiver

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	3,500 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	350 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

File	Size
Trailer Hitch Instructions	1.19MB	Download

Description

This Hitch Fits The Following Vehicles:

2019 - 2024 Audi, Q3, All Styles
2018 - 2024 Volkswagen, Tiguan, All Styles

Trailer Hitch Specs:

Part Number	76918
Brand	Draw-Tite
Finish	Black Powdercoat
Class	III
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	350 lbs
Warranty	Lifetime
Installation Instructions

Includes anti-rattle hitch pin to tightly secure accessories in receiver box

Questions or Comments? Call 702-374-8999

Tags: 76918 , 2019 , 2020 , 2021 , 2022 , 2023 , 2024 , 19 , 20 , 21 , 22 , 23 , 24 , Audi , Q3 , Draw-Tite , Hidden , Hitch , Trailer , Tow , Hitch , Receiver , Bar , Frame

Get Expert Help

Trailer Tow Hitch For 18-24 Volkswagen Tiguan 19-24 Audi Q3 Hidden Removable 2" Receiver Class 3 Draw-Tite Install Notes

Installation Instructions for Audi Q3 (2019-Current) and VW Tiguan (2019-Current)

Part Numbers:

76918

Tools Required:

Safety Glasses
Ratchet
Torque Wrench
6” Socket Extension
Painter’s Tape
11/16", 13mm, 18mm, and 19mm Sockets
10mm Deep Well Socket
T25 Torx Bit Socket
Plastic Trim Tools
Utility Knife

Step-by-Step Instructions:

Remove Taillights:
- Open the liftgate and remove the taillight cover trim.
- Using a pry tool, carefully remove the cover.
- Remove two screws securing the taillight with a T25 Torx bit.
- Slide the taillight rearward to remove, disconnect the electrical connector, and set it aside. Repeat for the other side.
Remove Cargo Area Panels:
- Lift and remove the cargo floor panel.
- Remove the threshold panel by lifting it straight up and using a pry tool for assistance.
Remove Rear Fascia Fasteners:
- Remove the rubber grommets in the cargo area to access hidden nuts. Use a 10mm deep well socket to remove the nuts.
- In the rear wheel wells, locate and remove screws securing the bottom corner of the wheel well liner using a T25 Torx bit. Fold the liner back toward the tire and remove any additional screws. Repeat for the other side.
- Remove fasteners behind the wheel well trim by pressing down on clips with a pry tool. Remove hidden screws with a T25 Torx bit. Protect trim with painter’s tape to prevent scratches during removal.
Remove Lower Fascia Screws:
- Underneath the vehicle, remove six screws securing the bottom of the rear fascia.
Detach the Fascia:
- Starting at the wheel well area, pull outward on the top front of the rear fascia to expose the clips.
- Use a plastic pry tool to disconnect clips and continue pulling outward to remove the fascia.
- Slide the fascia rearward, unplug electrical connectors, and set it aside.
Remove Impact Beam:
- Using a 13mm socket, remove bolts securing the impact beam to the vehicle frame. Return the impact beam and bolts to the vehicle owner.
Install Hitch:
- Insert the hitch side brackets into the frame rails and align the slots with the frame holes.
- Use supplied pull wires to feed bolts and spacers through the hitch and vehicle frame.
- Install conical washers (teeth side toward the vehicle frame) and secure with bolts.
Tighten Fasteners:
- Tighten all hitch fasteners to 50 lb-ft (68 N·m) using a torque wrench.
Reinstall Components:
- Reinstall the rear fascia, taillights, and any previously removed components in reverse order. Ensure all electrical connectors are reconnected.

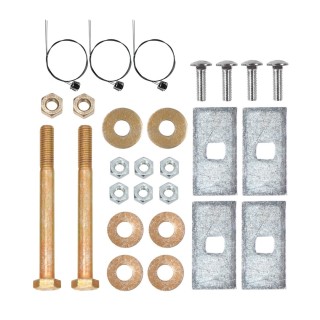

Hardware List:

(4) Carriage Bolts: 1/2"-13 x 1.75" GR8
(4) Conical Washers: 1/2"
(6) Hex Nuts: 7/16"-14
(4) Spacer Blocks: 1/4" x 1" x 2"
(6) Pull Wires: 7/16"
(2) Bolts: M12 x 1.75 x 100mm CL10.9
(2) Flat Washers: 7/16"
(2) Prevailing Torque Nuts: M12 x 1.75 CL10

Safety Notes:

Check the hitch periodically to ensure all fasteners and the ball are properly tightened.
Replace any damaged hitch or ball immediately.
Use eye protection when working beneath the vehicle.
Do not cut access or attachment holes with a torch.

Specifications:

Maximum Load Ratings:
- Weight Carrying:
  - Gross Trailer Weight: 3,500 lbs (1,589 kg)
  - Tongue Weight: 350 lbs (159 kg)
