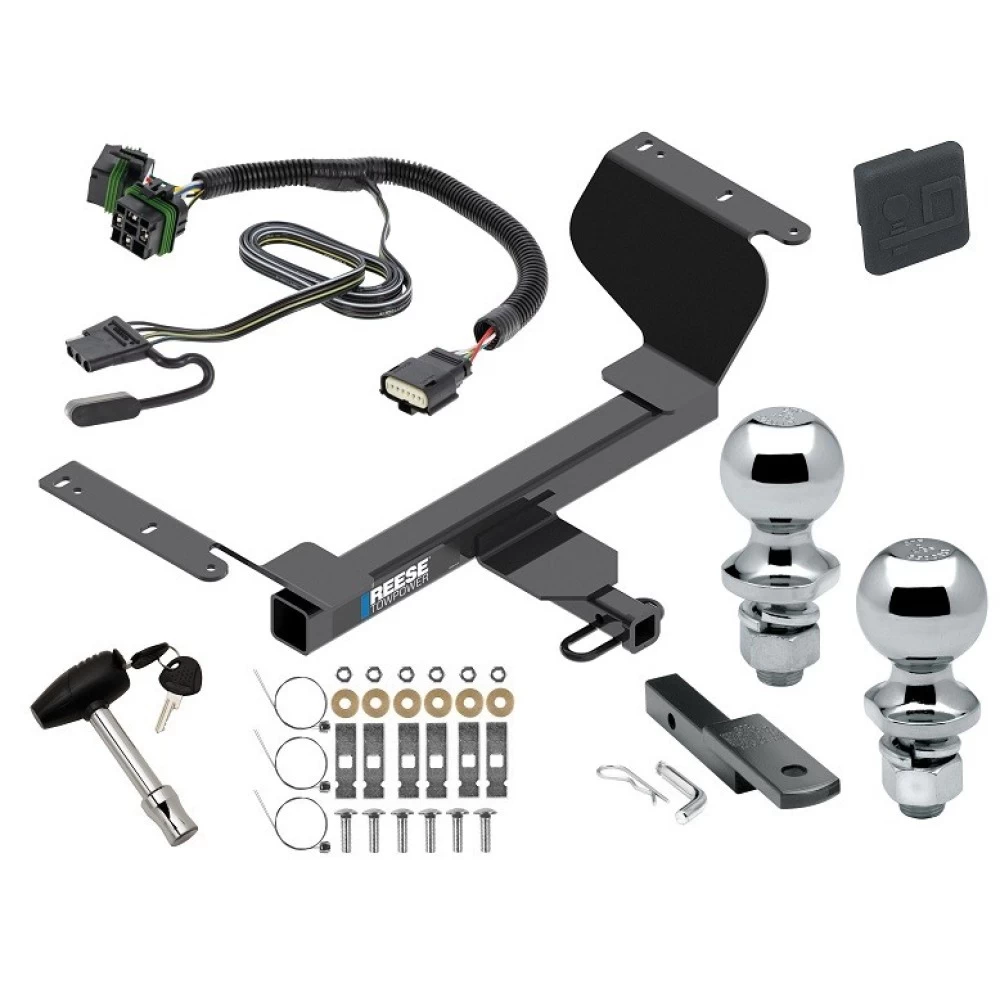

Reese Trailer Tow Hitch For 18-24 Chevrolet Equinox GMC Terrain Except Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Model: 06180 36051 118853 63820 63810 580407 2211Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" and 2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2018 - 2024 Chevrolet, Equinox, Except Models w/1.6L Diesel
Trailer Hitch Specs:
Part Number | 06180 |
Brand | Reese |
Finish | Black Powdercoat |
Class | 2 |
Receiver size opening | 1-1/4" |
Max gross trailer weight | 3,500lbs |
Max GTW w/ weight distribution | N/A |
Max Tongue Weight | 350 lbs |
Warranty | Lifetime |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Specifications:
Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Length | 7" From Center of Pin Hole to Center of Ball Hole |
Rise | 5/8" From inside top of hitch opening |
Towing Capacity in Rise Position | 3,500 lb Gross Towing Weight 350 lb Tongue Weight |
Drop | 1-1/4" From inside top of hitch opening |
Towing Capacity in Drop Position | 3,500 lb Gross Towing Weight 350 lb Tongue Weight |
Ball Hole Diameter | 3/4" |
Pin hole diameter | 1/2" |
Warranty | Limited Lifetime |
Wiring Kit Specs:
Part Number | 118853 |
Brand | Tekonsha |
Warranty | 1 Year |
Part Number | 63820 |
Brand | Draw-Tite |
Size | 2" x 3/4" x 1-1/2" |
Towing Capacity | 3,500 lbs. GTW |
Material | Chrome |
Torque | Torque to 160 ft. lbs |
Shank Diameter | 3/4" |
Warranty | Lifetime |
Part Number | 63810 |
Brand | Draw-Tite |
Size | 1-7/8" x 3/4" x 1-1/2" |
Towing Capacity | 2,000 lbs. GTW |
Material | Chrome (Cold forged for superior strength) |
Torque | torgue to 160 ft. lbs |
Ball Hole Diameter | 3/4" |
Warranty | Lifetime |
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024
$349 56 $514.83 32% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$514.83 $349 56
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 06180 36051 118853 63820 63810 580407 2211
- Includes: Class 2 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|
Ask a Question about Reese Trailer Tow Hitch For 18-24 Chevrolet Equinox GMC Terrain Except Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Be the first to ask a question.
File | Size | |
---|---|---|
Trailer Hitch Instructions | 1.5MB | Download |
Description
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" and 2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2018 - 2024 Chevrolet, Equinox, Except Models w/1.6L Diesel
Trailer Hitch Specs:
Part Number | 06180 |
Brand | Reese |
Finish | Black Powdercoat |
Class | 2 |
Receiver size opening | 1-1/4" |
Max gross trailer weight | 3,500lbs |
Max GTW w/ weight distribution | N/A |
Max Tongue Weight | 350 lbs |
Warranty | Lifetime |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Specifications:
Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Length | 7" From Center of Pin Hole to Center of Ball Hole |
Rise | 5/8" From inside top of hitch opening |
Towing Capacity in Rise Position | 3,500 lb Gross Towing Weight 350 lb Tongue Weight |
Drop | 1-1/4" From inside top of hitch opening |
Towing Capacity in Drop Position | 3,500 lb Gross Towing Weight 350 lb Tongue Weight |
Ball Hole Diameter | 3/4" |
Pin hole diameter | 1/2" |
Warranty | Limited Lifetime |
Wiring Kit Specs:
Part Number | 118853 |
Brand | Tekonsha |
Warranty | 1 Year |
Part Number | 63820 |
Brand | Draw-Tite |
Size | 2" x 3/4" x 1-1/2" |
Towing Capacity | 3,500 lbs. GTW |
Material | Chrome |
Torque | Torque to 160 ft. lbs |
Shank Diameter | 3/4" |
Warranty | Lifetime |
Part Number | 63810 |
Brand | Draw-Tite |
Size | 1-7/8" x 3/4" x 1-1/2" |
Towing Capacity | 2,000 lbs. GTW |
Material | Chrome (Cold forged for superior strength) |
Torque | torgue to 160 ft. lbs |
Ball Hole Diameter | 3/4" |
Warranty | Lifetime |
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024
