- Stock: In Stock
- Brand: Draw-Tite
- Model: 76920 118773 23 63816

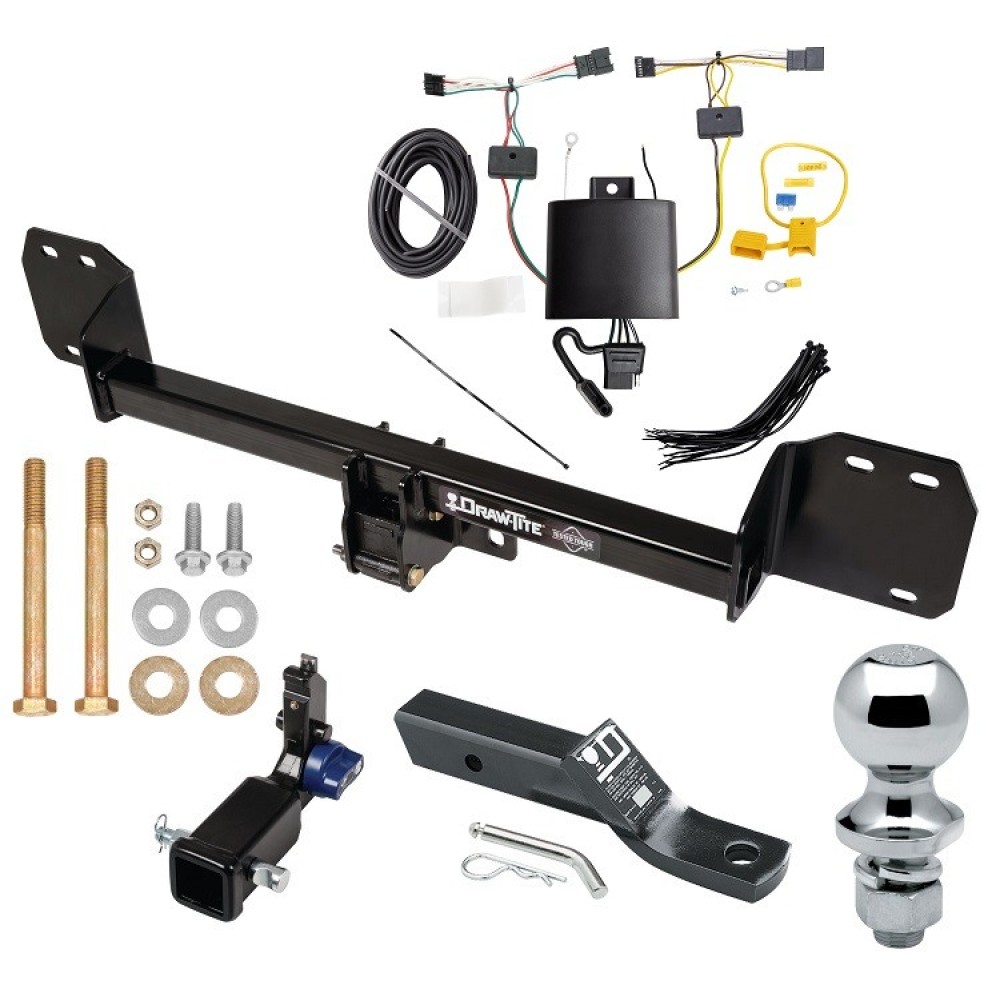

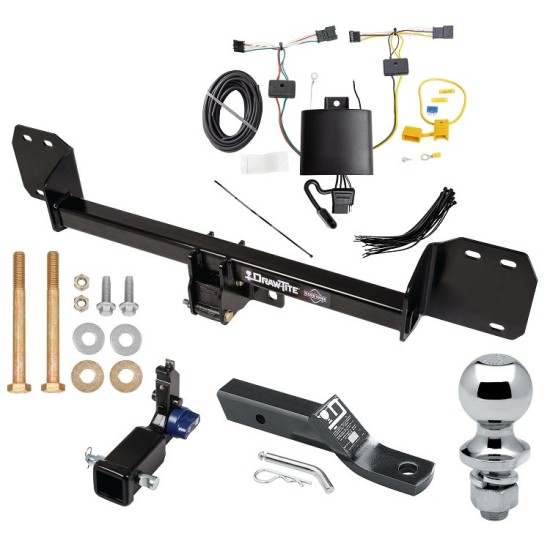

Includes Everything Pictured:
Custom Fit Trailer Hitch
Removable 2” Receiver
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
2018 - 2024 Volvo, XC60, All Styles
Trailer Hitch Specs:
| Part Number | 76920 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | III |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
A Hitch only when you need it!
Now you can keep that fresh off the factory floor look and only see the receiver when you need to. The new Hidden Hitch® by Draw-Tite® Hitch is designed to be quickly and easily removed when not in use. Our patented design allows for mounting of cargo carriers, bike racks and even light duty towing! (up to 3,500 lbs. gross trailer weight)
Includes anti-rattle hitch pin to tightly secure accessories in receiver box
Wiring Kit Specs:
| Part Number | 118773 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024
