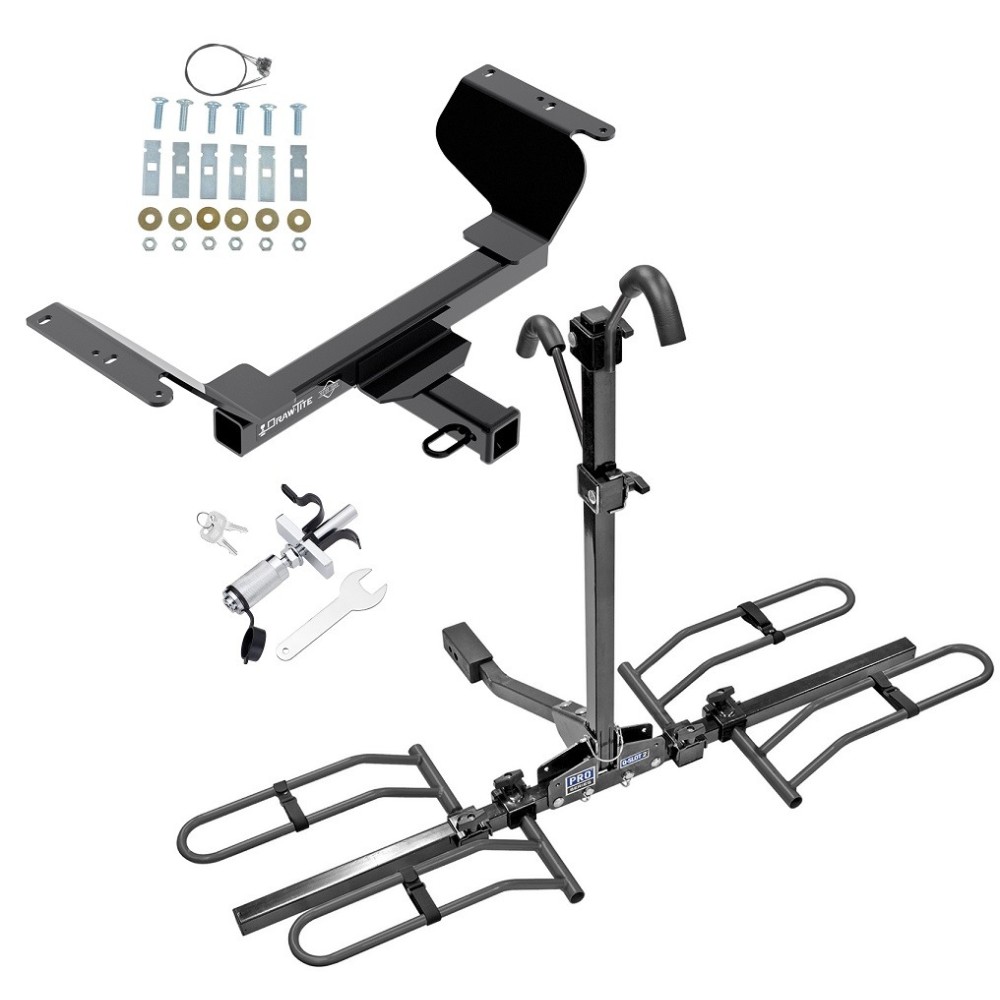

Trailer Tow Hitch For 18‑24 Chevy Equinox GMC Terrain Except Diesel Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock
Model: 76419 63134 63100Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2018 - 2024 Chevrolet, Equinox, Except Models w/1.6L Diesel
2018 - 2024 GMC, Terrain, Except Diesel
Trailer Hitch Specs:
Bike Rack Specs:
Anti-Rattle Device Specs:
Part Number | 63100 |
Brand | Pro Series |
Product Description | Anti-Rattle Device for Cargo Accessories |
Package Type | Plactic Shroud |
Warranty | Limited 1 Year |
Installation Instructions | ![]() |
Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024
$408 38 $656.90 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$656.90 $408 38
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $102.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76419 63134 63100
- Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 4,500 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 4,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 675 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 675 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2018 - 2024 Chevrolet, Equinox, Except Models w/1.6L Diesel
2018 - 2024 GMC, Terrain, Except Diesel
Trailer Hitch Specs:
Bike Rack Specs:
Anti-Rattle Device Specs:
Part Number | 63100 |
Brand | Pro Series |
Product Description | Anti-Rattle Device for Cargo Accessories |
Package Type | Plactic Shroud |
Warranty | Limited 1 Year |
Installation Instructions | ![]() |
Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 18-24 Chevy Equinox GMC Terrain Except Diesel Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes
Installation Instructions for 2018-Current Chevrolet Equinox and GMC Terrain
Part Numbers:
- 76419
- 84419
- CQT76419
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 15 mm, 11/16”
- T15 Torx Bit Socket
- 6-inch Socket Extension
- Exhaust Removal Pliers
Step-by-Step Instructions:
-
Lower Muffler:
- Spray lubricant on the rubber hangers to ease removal.
- Ensure the exhaust is supported before removing the rubber hangers.
- Remove the following:
- (2) screws from the bottom of the rear fascia using a T15 Torx bit.
- (2) bolts from each rear exhaust hanger bracket using a 15 mm socket.
- Rubber isolator from the hanger in front of the muffler.
- Lower the exhaust one side at a time by gently pulling on the rear fascia.
- If needed, pull the wire harness off the passenger-side frame for additional clearance. Reinstall it after hitch installation.
-
Install Hardware:
- Feed the coiled end of the pull wire through an attachment hole in the frame and out through the access hole.
- Attach carriage bolts and spacers to the pull wire and pull them into position (3 per side). Leave the pull wire attached until the hitch is raised.
-
Install Hitch:
- Carefully raise the hitch into position without pushing the hardware back into the frame.
- Loosely install conical washers (teeth side toward the hitch) and hex nuts onto the carriage bolts.
-
Reinstall Muffler:
- Reverse the steps from Step 1 to reinstall the muffler.
-
Torque Fasteners:
- Tighten all 7/16-14 GR5 fasteners to 50 ft-lbs (68 Nm) using a torque wrench.

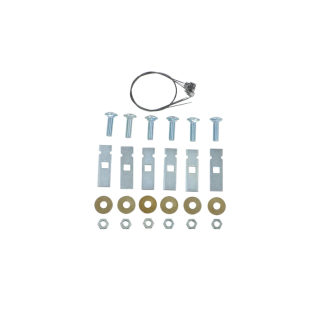

Hardware List:
- (6) Carriage Bolt 7/16”-14 x 1.5” GR5
- (6) Spacer Block 1/4” x 7/8” x 3” (PN: HE-2370-000)
- (6) Conical Washer 7/16” (PN: 01292007)
- (6) Hex Nut 7/16”-14
- (6) Pull Wire 7/16” (PN: 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch periodically to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Observe all safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg) tongue weight.
- Weight Distributing Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 35 minutes.
- For step-by-step photo instructions, scan the QR code provided in the manual.
