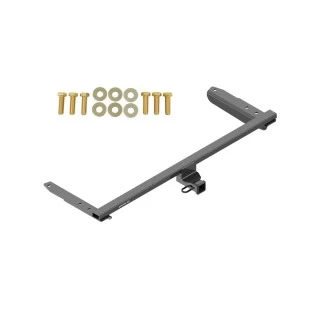

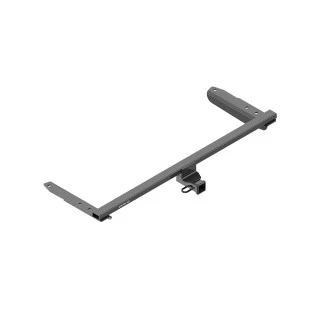

Trailer Tow Hitch For 18‑24 Honda Odyssey All Styles 2" Towing Receiver
Model: 761702018 - 2024 Honda, Odyssey, All Styles
Trailer Hitch Specs:
| Part Number | 76170 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024
$203 06 $307.00 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$307.00 $203 06
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $50.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76170
- UPC: 016118103779
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
2018 - 2024 Honda, Odyssey, All Styles
Trailer Hitch Specs:
| Part Number | 76170 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 18-24 Honda Odyssey All Styles 2" Towing Receiver Install Notes
Installation Instructions for Trailer Hitch
Part Numbers:
- 76170
- 84170
- CQT76170
Applications:
- Years: 2018-Current
- Make and Models: Honda Odyssey
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10 mm, 19 mm
- 6" Socket Extension
- Panel Removal Tool
- Plastic Trim Tools
- Phillips Screwdriver
- Utility Knife
- 3/16” or 5 mm Hex Bits
- Exhaust Removal Pliers
- Tape
Step-by-Step Instructions:
1. Remove Bottom Appearance Panel and Mud Flaps:
- Use a Phillips screwdriver, panel removal tool, and a 10 mm socket to remove (4) rivets and (2) screws from the bottom appearance panel on the driver side.
- Remove mud flaps on both sides if present.
- Retain the bottom panel and mud flaps for reinstallation.
2. Remove Bumper Fascia:
- Remove (2) plastic rivets from the bottom center fascia using a panel removal tool. For models with a hands-free liftgate, remove (6) plastic rivets instead.
- Use a Phillips screwdriver to remove (3) screws from the wheel well liner on each side.
- Open the trunk and use 3/16” or 5 mm hex bits to remove (2) flat head screws on each side.
- Using plastic trim tools, gently remove the bumper fascia, starting from the outer edges near the wheel wells.
- Disconnect any wiring from the fascia on both sides if present.
3. Lower Exhaust:
- Use exhaust removal pliers to temporarily lower the exhaust pipe.
- Support the muffler with a bungee cord or similar device to prevent damage.
4. Install Hitch:
- Raise the hitch into position and carefully slide it over the passenger-side exhaust pipe first.
- Loosely install M12 bolts and conical washers into the hitch, ensuring the teeth of the washers face the hitch.
5. Torque Fasteners:
- Tighten all M12 fasteners with a torque wrench to 76 lb-ft (103 N·m).
6. Trim Bumper Fascia and Bottom Appearance Panel:
- Locate the center of the bottom bumper fascia and trim a 3.5” tall by 5.5” wide area as shown in Figure 2.
- Trim the bottom appearance panel as shown in Figure 3.
7. Reinstall Components:
- Reinstall all fasteners, wiring, fascia, exhaust, bottom appearance panel, and mud flaps removed in Steps 1-3.

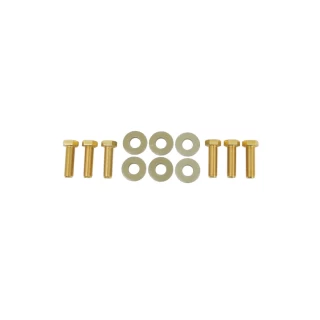

Hardware List:
- 6 × Conical Washers (1/2”)
- 6 × M12 Bolts (1.25 × 35 mm, CL8.8)
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is essential to secure the hitch to the vehicle.
- Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball before use.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 3,500 lbs (1,589 kg)
- Max Tongue Weight (Weight Carrying): 525 lbs (238 kg)
- Weight Distribution: Not applicable
- Installation Time: Approximately 80 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
