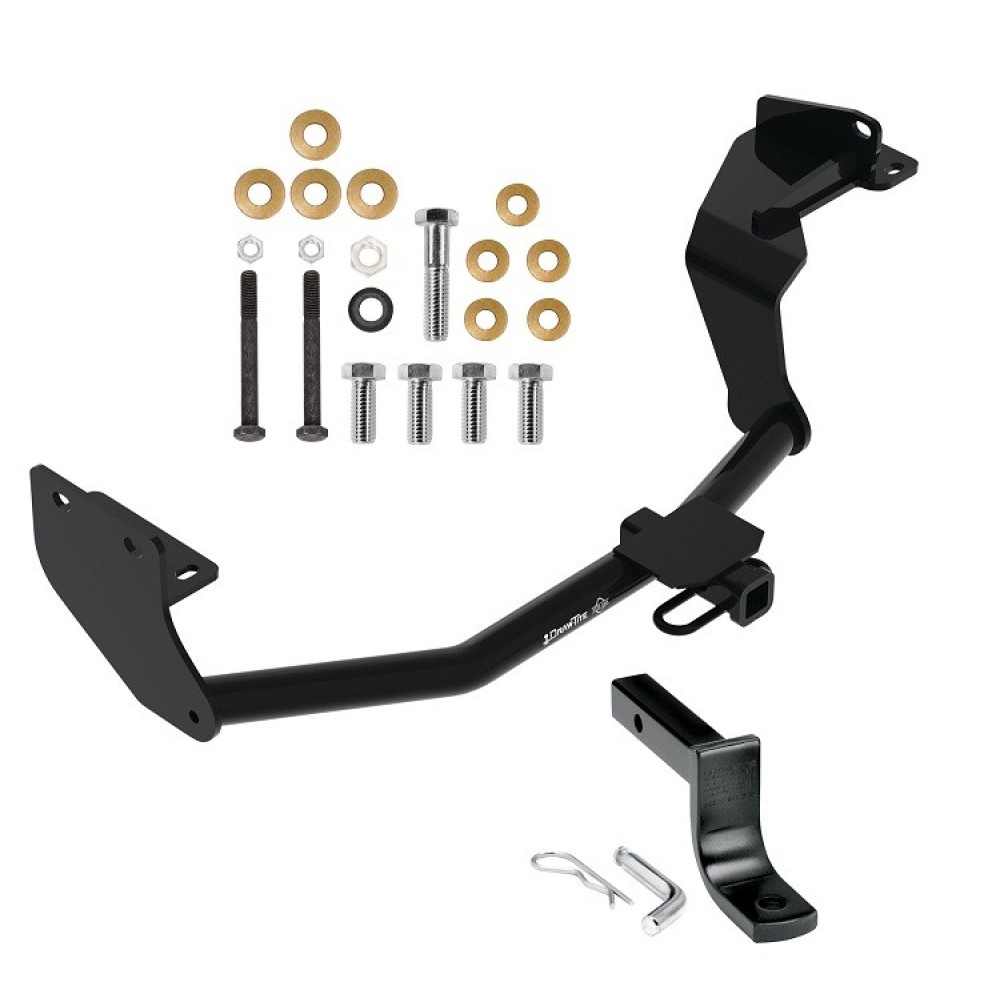

Trailer Tow Hitch For 19‑20 Hyundai Santa Fe 16‑20 KIA Sorento 1‑1/4" Receiver w/ Drawbar Kit
Model: 371320Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
Trailer Hitch Specs:
| Part Number | 371320 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 20 2016 2017 2018 2019 2020
$214 19 $377.58 43% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$377.58 $214 19
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $53.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 371320
- UPC: 016118158625
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Description
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
Trailer Hitch Specs:
| Part Number | 371320 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 20 2016 2017 2018 2019 2020
Get Expert Help
Trailer Tow Hitch For 19-20 Hyundai Santa Fe 16-20 KIA Sorento 1-1/4" Receiver w/ Drawbar Kit Install Notes
Installation Instructions for Kia Sorento (2016-Current)
Part Numbers:
- 37132
- 06196
- CQT37132
Wiring Access Location:
- PC3
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Exhaust Removal Pliers
- Angle Grinder (if required)
- Phillips Screwdriver
- Sockets: 10mm, 14mm, 16mm, 17mm, 18mm, 19mm, 3/4"
- Lubricant or Soapy Water
Installation Time:
- Estimated: 40 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower and Remove Spare Tire:
- Access the tire release under the storage compartment at the back of the vehicle.
-
Remove Driver-Side Rear Plastic Cover:
- Using a Phillips screwdriver, remove fasteners, five (5) plastic push pins, and two (2) nuts.
-
Lower Exhaust:
- Remove rear and side hangers, supporting the exhaust to prevent damage.
- Apply lubricant or soapy water to the metal hanger rods and rubber isolators to ease removal.
- Remove rubber plugs from the bottom of the frame rails on both sides.
-
Prepare Weldnuts:
- Run M10 bolts into the existing weldnuts in the frame rails to remove debris. Then, remove the bolts.
-
Raise Hitch:
- Raise the hitch into position.
- Insert hardware items 1 & 2 on the driver side and items 4 & 5 on the passenger side.
- Insert bolts through the bracket and frame for support. If the bumper locator pin interferes, trim the pin using an angle grinder.
-
Install Hardware:
- Insert M10 bolts (items 8 & 7) through the bracket and into the frame.
- Loosely install the conical washers and hex nuts onto the corresponding bolts.
-
Tighten Fasteners:
- Tighten M10 CL10.9 fasteners to 40 lb-ft (54 N*m).
- Tighten 1/2" GR5 fasteners to 75 lb-ft (102 N*m).
- Tighten M12 GR8.8 fasteners to 68 lb-ft (92 N*m).
-
Reinstall Components:
- Raise the exhaust back into position and reattach hangers.
- Reinstall the driver-side rear plastic cover removed in Step 2.
- Reinstall the spare tire and ensure it is properly seated.
Torque Specifications:
- M10 bolts: 40 lb-ft (54 N*m)
- 1/2" GR5 bolts: 75 lb-ft (102 N*m)
- M12 GR8.8 bolts: 68 lb-ft (92 N*m)
Hardware List:
- (2) Hex Bolts, 1/2"-13 x 4.50" GR5
- (5) Conical Washers, 1/2"
- (2) Hex Nuts, 1/2"-13
- (1) Hex Bolt, M12 x 1.75 x 120 CL8.8
- (1) Flat Washer, 1/2" Hardened
- (1) Hex Nut, M12 x 1.75 CL8
- (4) Bolts, M10 x 1.25 x 30 CL10.9
- (4) Conical Washers, 7/16"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,587 kg)
- Max Tongue Weight: 350 lb (158 kg)
Additional Notes:
- Authorized Drawbar Kit: 36071 (sold separately; must be used in the RISE position only).
- Fastener Kit: 37132F.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
