Reese Trailer Tow Hitch For 19-24 Honda Passport Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball

Reese Trailer Tow Hitch For 19-24 Honda Passport Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Reese Trailer Tow Hitch For 19-24 Honda Passport Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Reese Trailer Tow Hitch For 19-24 Honda Passport Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Reese Trailer Tow Hitch For 19-24 Honda Passport Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Reese Trailer Tow Hitch For 19-24 Honda Passport Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Reese Trailer Tow Hitch For 19-24 Honda Passport Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Reese Trailer Tow Hitch For 19-24 Honda Passport Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Reese Trailer Tow Hitch For 19-24 Honda Passport Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Reese Trailer Tow Hitch For 19-24 Honda Passport Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Reese Trailer Tow Hitch For 19-24 Honda Passport Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Reese Trailer Tow Hitch For 19-24 Honda Passport Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Reese Trailer Tow Hitch For 19-24 Honda Passport Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Reese Trailer Tow Hitch For 19-24 Honda Passport Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
$348.61
  • Stock: In Stock
  • Brand: Reese
  • Model: 84290 118809 23 63816

Applies to this product only

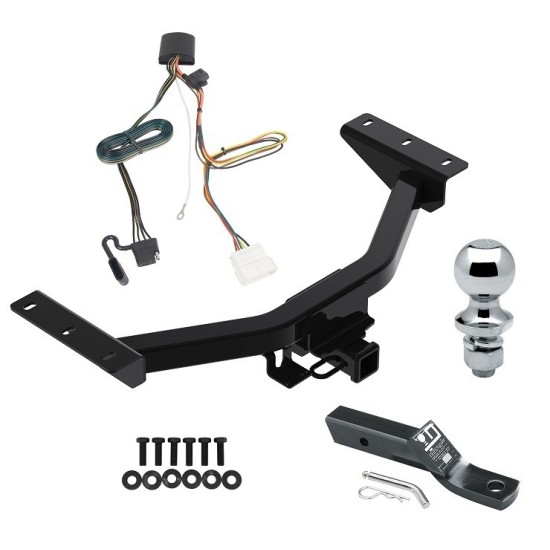

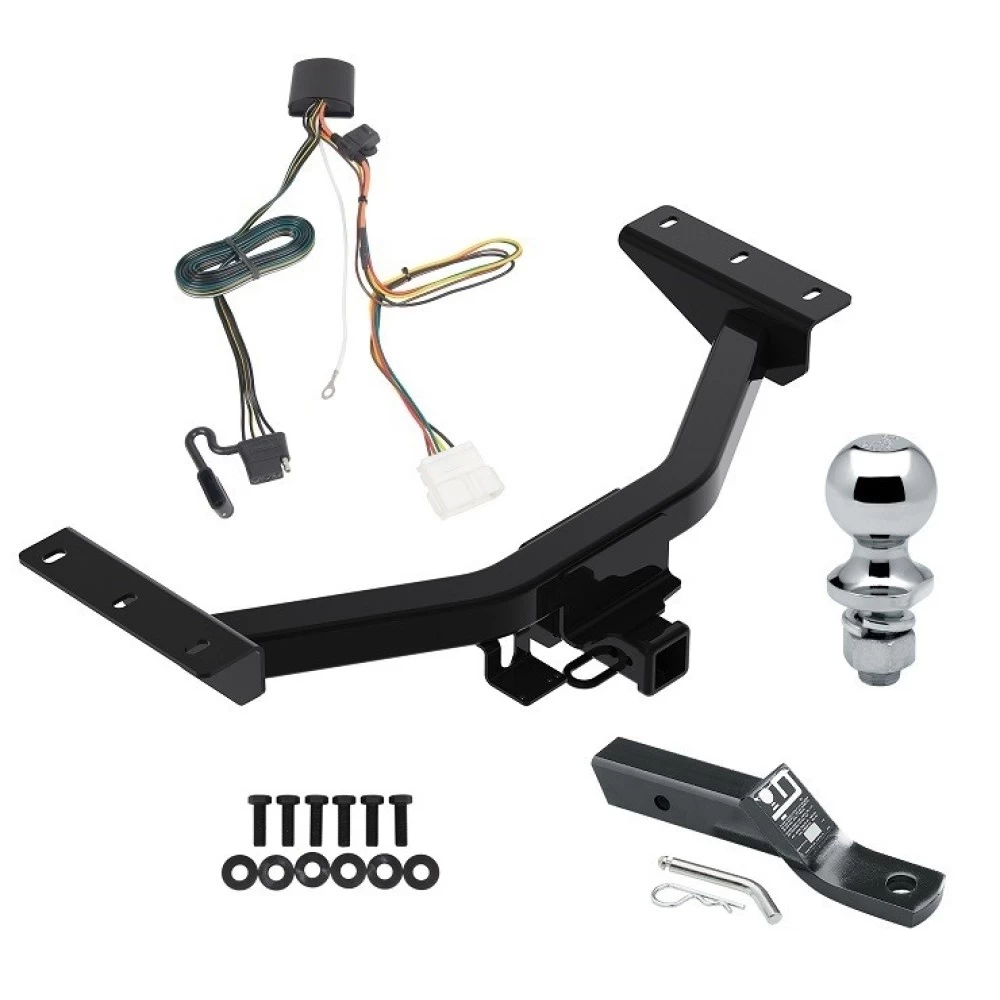

Includes Everything Pictured:

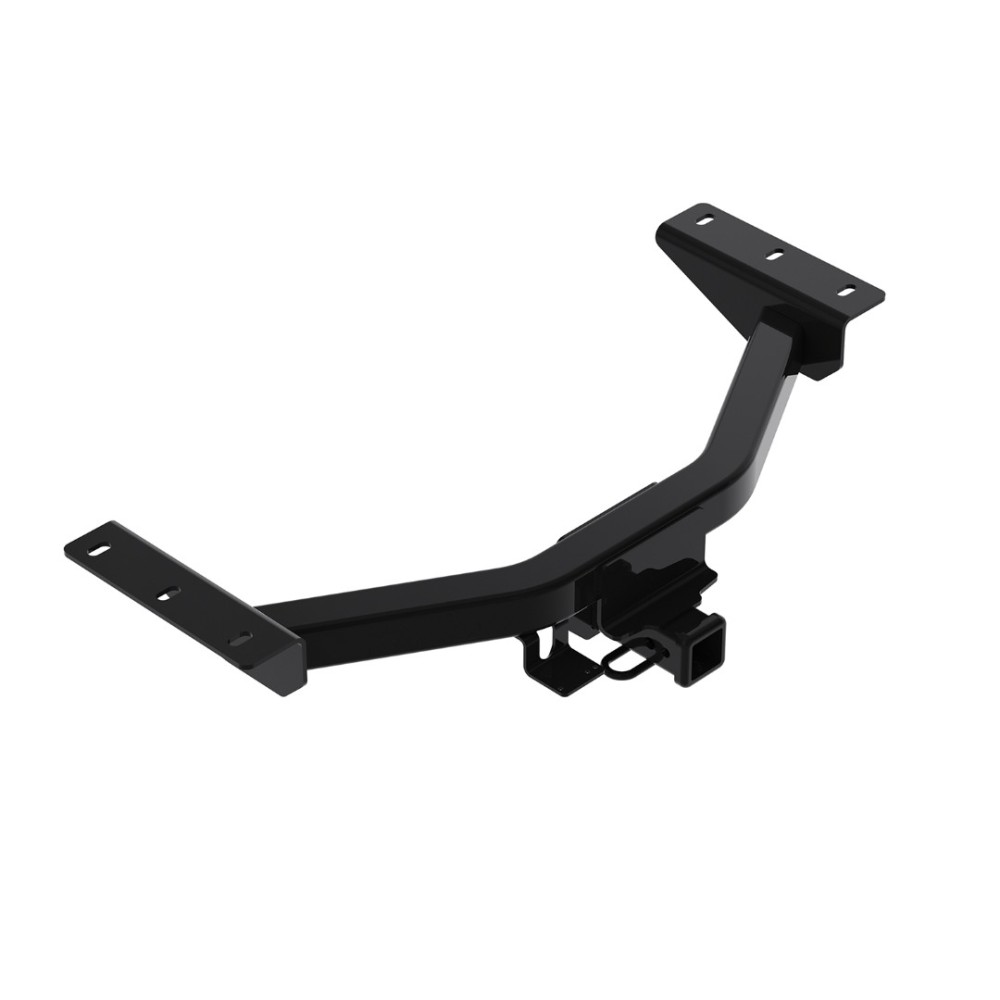

Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions



Fits The Following Vehicles

2019 - 2024  Honda, Passport, All Styles

Trailer Hitch Specs:

Part Number 84290
Brand Reese
Finish Black Powdercoat
Class 3
Receiver size opening 2"
Max gross trailer weight 6,000 lbs
Max GTW w/ weight distribution  8,000 lbs
Max Tongue Weight 900/900 lbs
Warranty Lifetime
Installation Instructions



Wiring Kit Specs:

Part Number 118809
Brand Tekonsha
Warranty 1 Year
Installation Instructions


Ball Mount Specs:

Fits 2" x 2" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity 7,500 lb Gross Towing Weight
750 lb Tongue Weight
Drop 2" From inside top of hitch opening
Rise 3/4" from top of inside of hitch opening
Warranty Lifetime


Hitch Ball Specs:

Part Number 63816
Brand Draw-Tite
Size 1-7/8" x 1" x 2-1/8",  torgue to 160 ft. lbs
Towing Capacity 2,000 lbs. GTW
Material Chrome
Torque torgue to 160 ft. lbs
Ball Hole Diameter 1"
Warranty Lifetime

Questions or Comments? Call 702-374-8999


REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.

Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024

Specification
Attachment Location Rear
Ball Mount Included Yes
Color Black
Drilling Required No
Gross Towing Weight 6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 8,000 lbs.
Hitch Class IV
Material Steel
Maximum Tongue Weight 900 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 900 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Square Tube
