Trailer Tow Hitch For 19‑24 Ford F‑350 F‑450 F‑550 Cab and Chassis Tilt Away Adult or Child Arms Fold Down 4 Bike Carrier

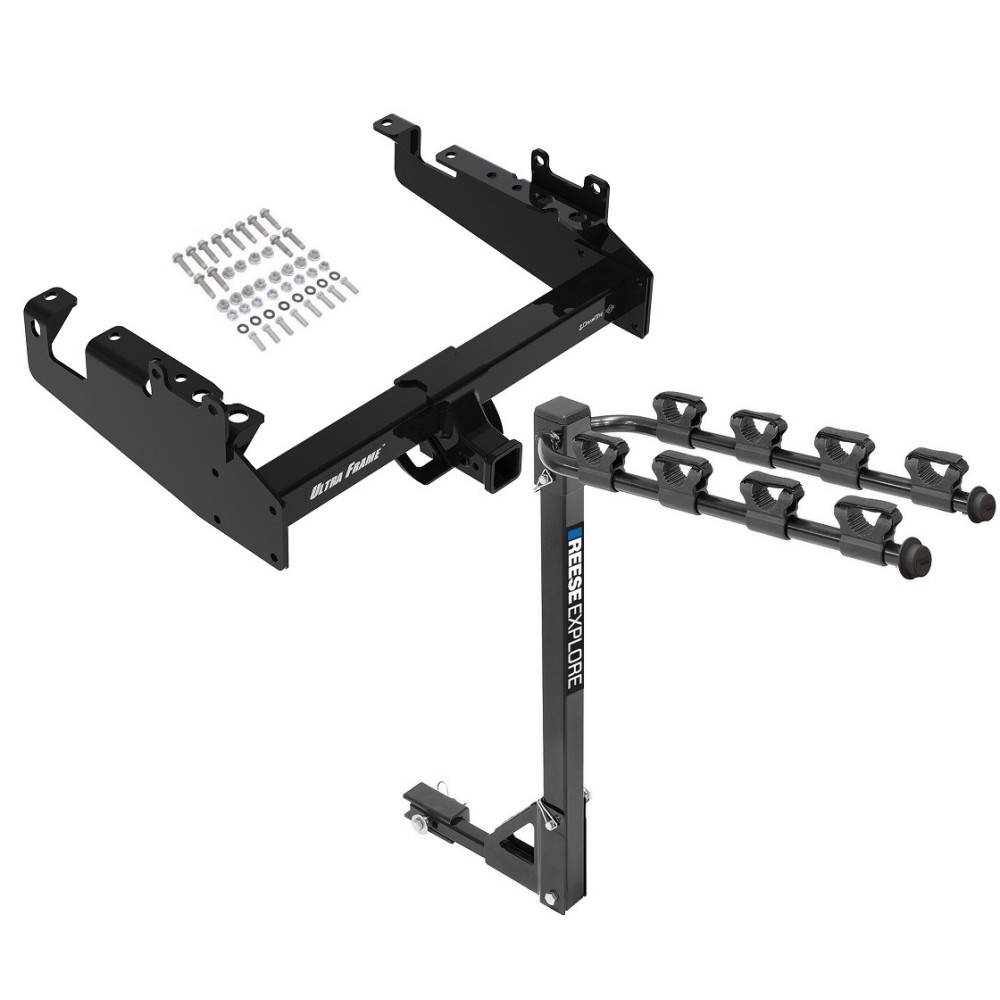

Model: 41953 1393100GIncludes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2019 - 2024 Ford, F-350 Super Duty, Cab & Chassis, w/34" Wide Frames
2019 - 2024 Ford, F-450 Super Duty, Cab & Chassis, w/34" Wide Frames
2019 - 2024 Ford, F-550 Super Duty, Cab & Chassis, w/34" Wide Frames

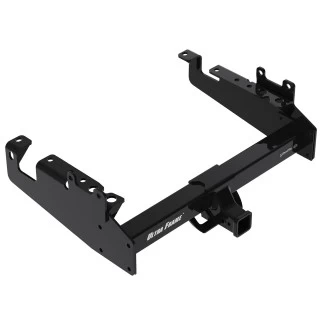

Trailer Hitch Specs:
| Part Number | 41953 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 18,000 lbs |
| Max GTW w/ weight distribution | 18,000 lbs |
| Max Tongue Weight | 2,700/2,700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |

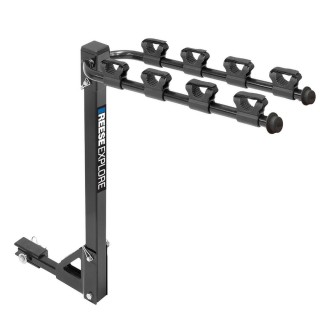

Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
$649 80 $889.41 27% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$889.41 $649 80
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $162.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41953 1393100G
- Includes: Ultra Frame Class 5 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2019 - 2024 Ford, F-350 Super Duty, Cab & Chassis, w/34" Wide Frames
2019 - 2024 Ford, F-450 Super Duty, Cab & Chassis, w/34" Wide Frames
2019 - 2024 Ford, F-550 Super Duty, Cab & Chassis, w/34" Wide Frames
Trailer Hitch Specs:
| Part Number | 41953 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 18,000 lbs |
| Max GTW w/ weight distribution | 18,000 lbs |
| Max Tongue Weight | 2,700/2,700 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 19-24 Ford F-350 F-450 F-550 Cab and Chassis Tilt Away Adult or Child Arms Fold Down 4 Bike Carrier Install Notes
Installation Instructions for Ford F350/F450/F550 (2019–Current)
Part Numbers:
- 41953
- 96953
- CQT41953
Wiring Access Location:
- Not specified
Tools Required:
- Wrenches: 13/16", 7/8", 21mm, 24mm
- Ratchet
- Torque Wrench
- 6" Socket Extension
- Safety Glasses
- Clamp
Installation Time:
- Approximately 45 minutes for professional installers
Step-by-Step Instructions:
-
Install Side Brackets:
- Secure and align the side brackets with attachment holes on the frame rails using clamps.
- Loosely install (6) M16 x 2.00 x 50mm bolts and (6) M16 flange locknuts per side using a 24mm socket.
-
Install Center Section:
- Raise the center section into position.
- Secure it to the side brackets using (4) 9/16"-18 x 1.75" bolts, (4) 9/16" hardened flat washers, and (4) 9/16"-18 flange locknuts per side.
-
Tighten Fasteners:
- Torque all 9/16"-18 fasteners to 120 lb-ft (163 N*m).
- Torque all M16 fasteners to 210 lb-ft (285 N*m).
-
Inspect Installation:
- Check all fasteners and ensure the hitch is securely mounted.
- Verify that the ball and fasteners are properly tightened.
Torque Specifications:
- 9/16"-18 GR5 bolts: 120 lb-ft (163 N*m)
- M16 x 2.00 bolts: 210 lb-ft (285 N*m)

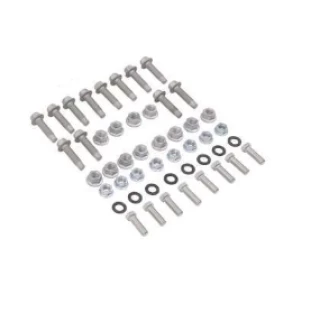

Hardware List:
- (12) Bolts, M16 x 2.00 x 50mm
- (12) Flange Locknuts, M16 x 2.00
- (8) Bolts, 9/16"-18 x 1.75" GR5
- (8) Flange Locknuts, 9/16"-18
- (8) Hardened Flat Washers, 9/16"
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are secure.
- If the hitch is removed, plug all holes in the vehicle's frame to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Wear safety glasses and follow precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 18,000 lb (8,164 kg)
- Max Tongue Weight: 2,700 lb (1,224 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 18,000 lb (8,164 kg)
- Max Tongue Weight: 2,700 lb (1,224 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
- Contact Horizon Global for technical assistance at 1-800-632-3290.
