Trailer Tow Hitch For 19-24 Ford F-350 F-450 F-550 Cab and Chassis w/ Security Lock Pin Key

Trailer Tow Hitch For 19-23 Ford F-350 F-450 F-550 Cab and Chassis w/ Security Lock Pin Key
Trailer Tow Hitch For 19-23 Ford F-350 F-450 F-550 Cab and Chassis w/ Security Lock Pin Key
Trailer Tow Hitch For 19-23 Ford F-350 F-450 F-550 Cab and Chassis w/ Security Lock Pin Key
Trailer Tow Hitch For 19-23 Ford F-350 F-450 F-550 Cab and Chassis w/ Security Lock Pin Key
Trailer Tow Hitch For 19-23 Ford F-350 F-450 F-550 Cab and Chassis w/ Security Lock Pin Key
Trailer Tow Hitch For 19-23 Ford F-350 F-450 F-550 Cab and Chassis w/ Security Lock Pin Key
Trailer Tow Hitch For 19-23 Ford F-350 F-450 F-550 Cab and Chassis w/ Security Lock Pin Key
Trailer Tow Hitch For 19-23 Ford F-350 F-450 F-550 Cab and Chassis w/ Security Lock Pin Key
Trailer Tow Hitch For 19-23 Ford F-350 F-450 F-550 Cab and Chassis w/ Security Lock Pin Key
Trailer Tow Hitch For 19-23 Ford F-350 F-450 F-550 Cab and Chassis w/ Security Lock Pin Key
Trailer Tow Hitch For 19-24 Ford F-350 F-450 F-550 Cab and Chassis w/ Security Lock Pin Key
$510.38
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 41953 580407 7010

Applies to this product only

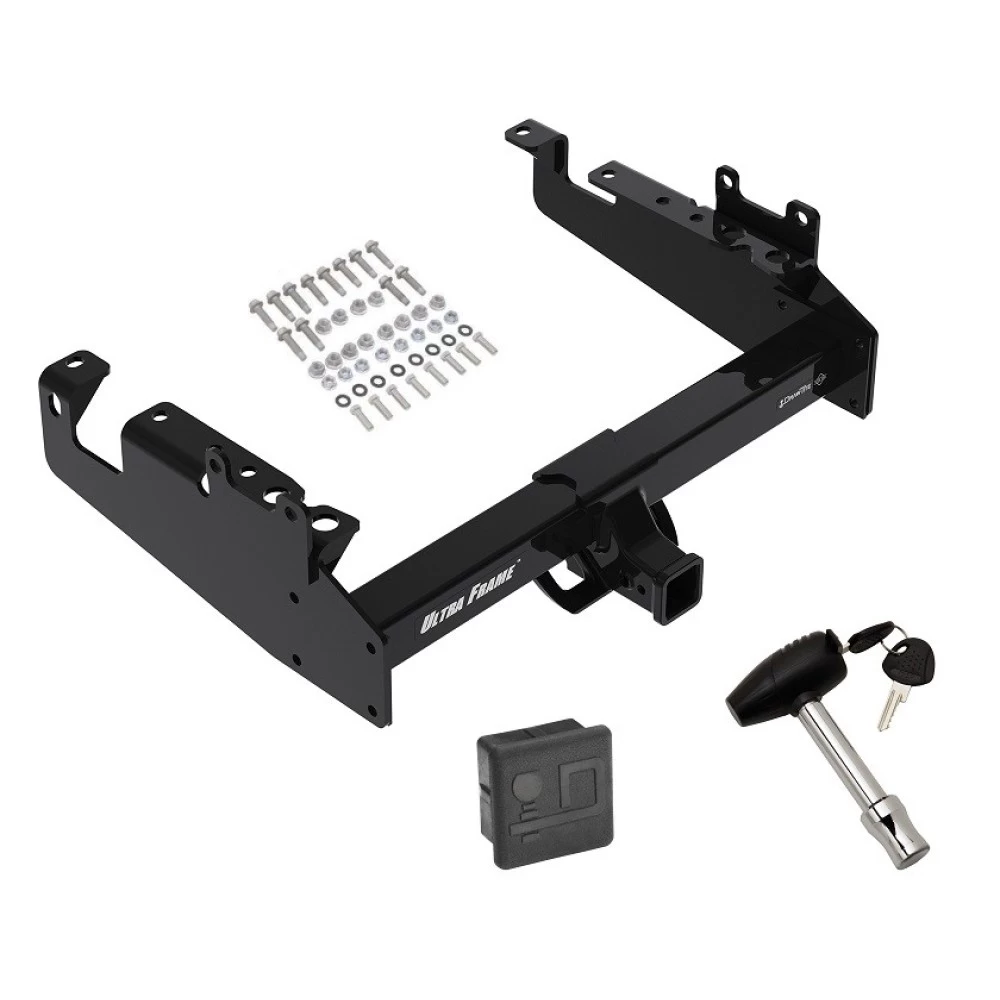

Includes Everything Pictured:
Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions


Fits The Following Vehicles

2019 - 2024    Ford, F-350 Super Duty, Cab & Chassis, w/34" Wide Frames
     2019 - 2024     Ford, F-450 Super Duty, Cab & Chassis, w/34" Wide Frames
2019 - 2024     Ford, F-550 Super Duty, Cab & Chassis, w/34" Wide Frames



Trailer Hitch Specs:
Part Number 41953
Brand Draw-Tite
Finish Black Powdercoat
Class 5
Receiver size opening 2"
Max gross trailer weight 18,000 lbs
Max GTW w/ weight distribution 18,000 lbs
Max Tongue Weight 2,700/2,700 lbs
Warranty Lifetime
Installation Instructions



Questions or Comments? Call 702-374-8999


Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024

Specification
Attachment Location Rear
Ball Mount Included No
Color Black
Drilling Required No
Gross Towing Weight 18,000 lbs
Gross Towing Weight w/ Weight Distribution Kit 18,000 lbs.
Hitch Class V
Material Steel
Maximum Tongue Weight 2,700 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 2,700 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Square Tube
