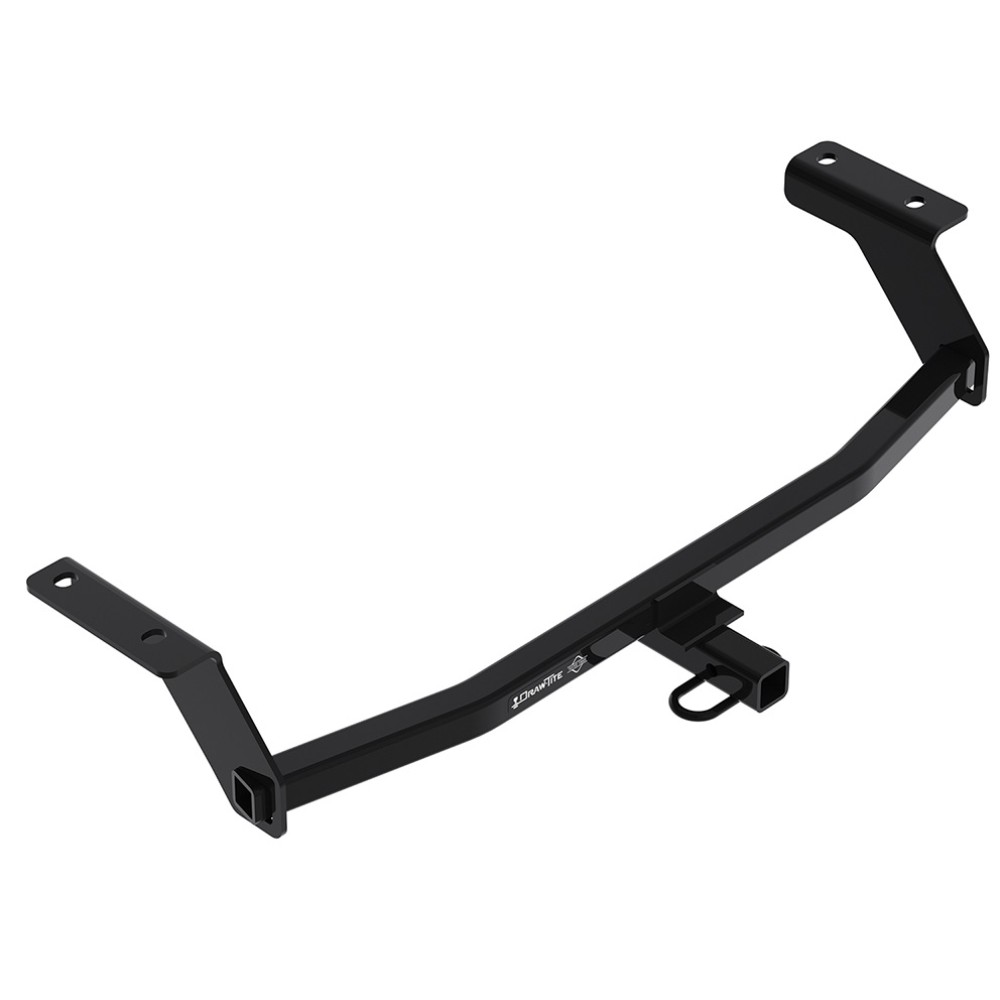

Trailer Tow Hitch For 19‑25 Mazda 3 Hatchback 1‑1/4" Receiver Class 1
Model: 24984Custom Fit Trailer Hitch
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
2019 - 2025 Mazda, 3, Hatchback
Trailer Hitch Specs:
| Part Number | 24984 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 25 2019 2020 2021 2022 2023 2024 2025
$178 96 $279.50 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$279.50 $178 96
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $44.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24984
- UPC: 016118155112
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Custom Fit Trailer Hitch
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
2019 - 2025 Mazda, 3, Hatchback
Trailer Hitch Specs:
| Part Number | 24984 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 25 2019 2020 2021 2022 2023 2024 2025
Get Expert Help
Trailer Tow Hitch For 19-25 Mazda 3 Hatchback 1-1/4" Receiver Class 1 Install Notes
Installation Instructions for Mazda 3 Hatchback (2019-Current)
Part Numbers:
- 24984
- 77984
- CQT24984
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 11/16"
- 6" Socket Extension
- Die Grinder
- Flat Head Screwdriver
- Exhaust Removal Pliers
Step-by-Step Instructions:
-
Remove Underbody Appearance Panel:
- Use a flat head screwdriver to remove rivets from the bottom appearance panel.
- Using a 10mm socket, remove one screw from the bottom bracket attachment per side.
- Press the bracket inward to release it from the plastic tab attached to the frame rails.
- Return the panel to the vehicle owner.
-
Lower Exhaust:
- Use exhaust removal pliers to remove the rearmost rubber hangers to lower the exhaust.
- Support the exhaust to avoid damage.
- Apply lubricant or soapy water to ease the removal of rubber hangers if needed.
-
Enlarge Access Hole:
- Use a die grinder to enlarge the access hole to a 1-inch diameter on each side.
-
Bend Heat Shield:
- Slightly bend the heat shield away from the hitch mounting area.
-
Install Hitch:
- Feed the 7/16" carriage bolts and spacers through the access holes using pull wires.
- Leave pull wires attached and raise the hitch into position, feeding the pull wires through the hitch bracket slot.
- Remove the pull wires and loosely install conical washers (teeth side toward hitch) and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16" fasteners to 50 ft-lb (68 N*m) using a torque wrench.
-
Reinstall Exhaust:
- Raise the exhaust back into position and reinstall all rubber hangers removed earlier.

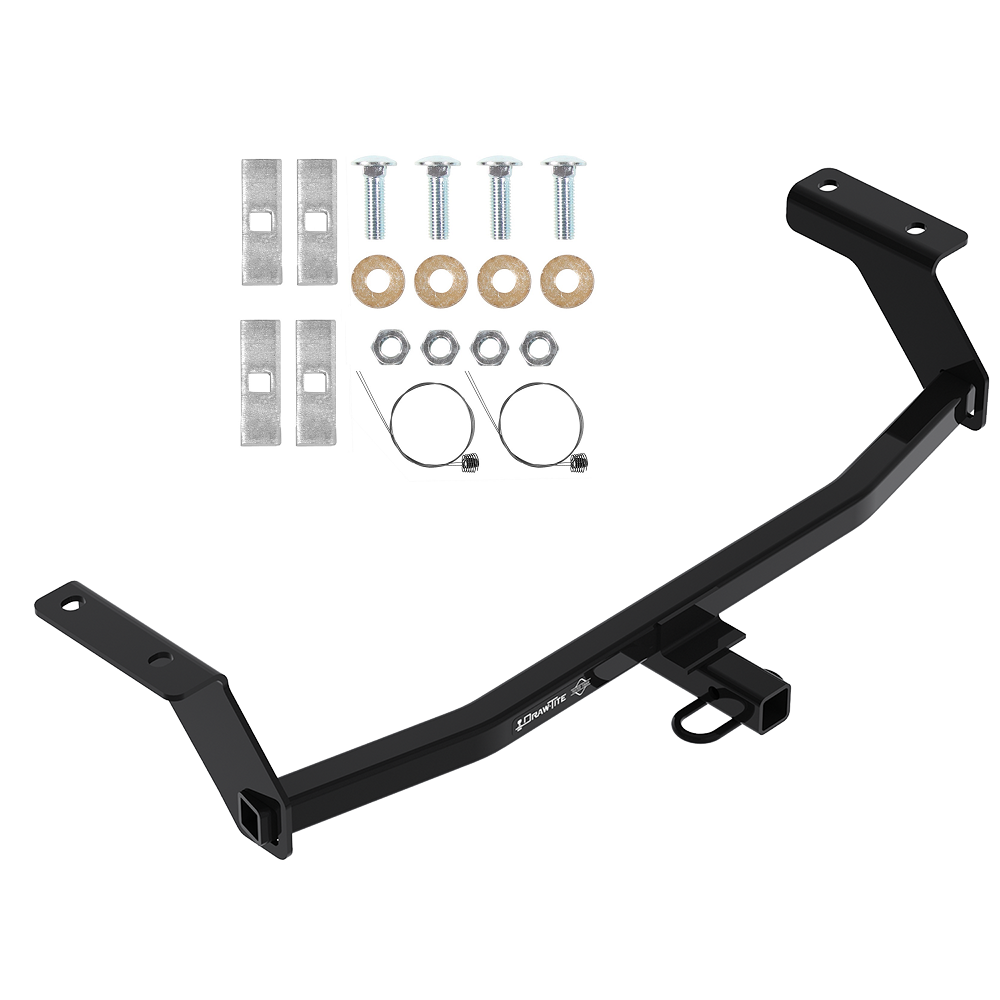

Hardware List:
- (4) Carriage Bolt, 7/16”-14 x 1.50 GR5
- (4) Spacer, 0.250 x 0.875 x 3.00 (Part No. HE-2370-000)
- (4) Conical Washer, 7/16” (Part No. 01292007)
- (4) Hex Nut, 7/16”-14 GR2
- (4) Pull Wire, 7/16” (Part No. 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 30 minutes
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
