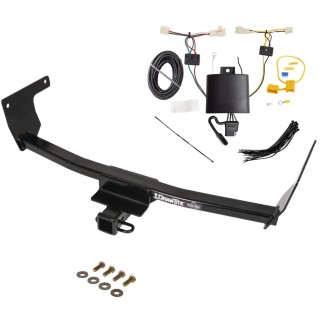

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Get Expert Help

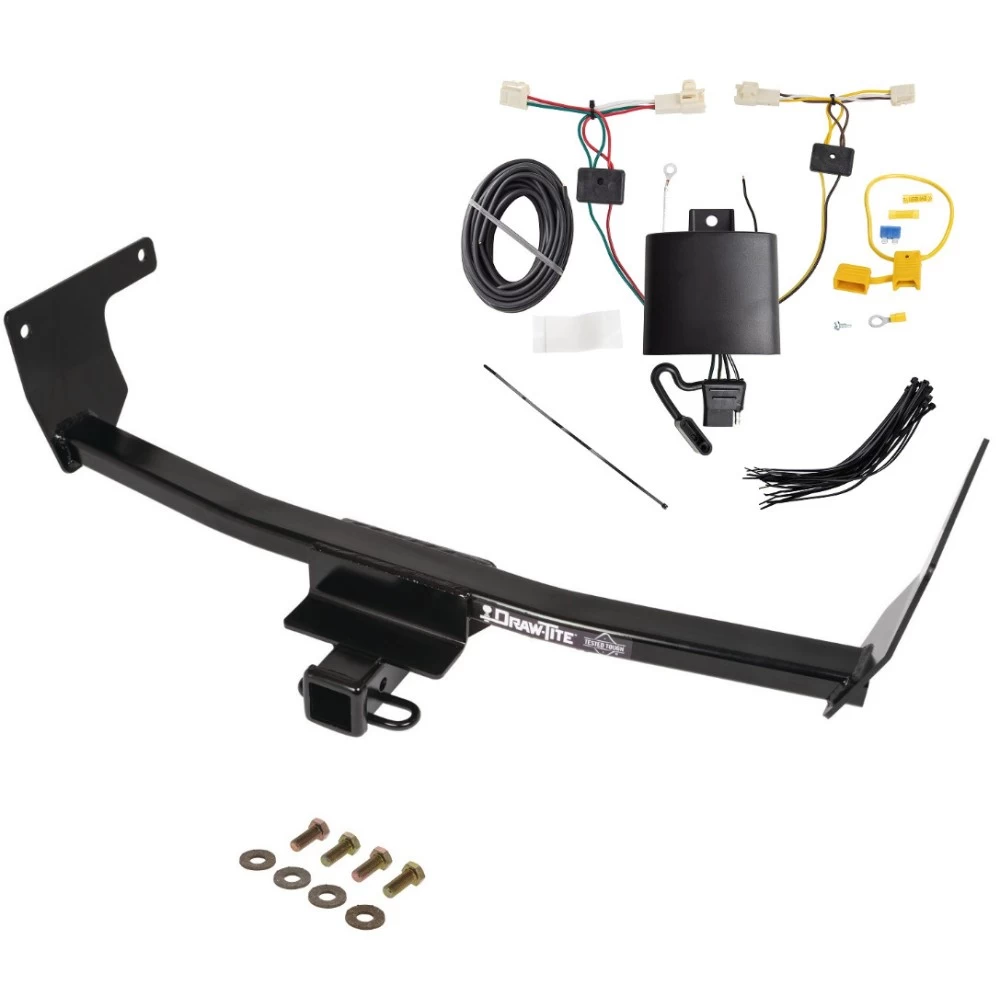

Trailer Tow Hitch For 19-23 Toyota RAV4 w/ Wiring Harness Kit Install Notes
Installation Instructions for Toyota RAV4 and Lexus NX Models
Part Numbers:
- 76634
- 84634
- CQT76634
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 12 mm, 18 mm
- 6-inch Socket Extension
- Crowfoot Wrench
- M12 x 1.25 Tap
- Bungee Cord
Step-by-Step Instructions:
-
Lower Exhaust (Optional on Some Models):
- For easier installation, lower the exhaust by removing the (2) bolts from each exhaust hanger using a 12 mm socket (4 bolts total, 2 per hanger).
- Support the exhaust with a bungee cord before removing the bolts.
-
Clean Weldnuts:
- Remove the stickers covering the (2) weldnuts on the side of each frame rail.
- Use an M12 x 1.25 tap to clean the weldnuts as necessary.
-
Install Hitch:
- Raise the hitch into position, sliding the brackets above the exhaust pipe.
- Align the bracket holes to the frame rail weldnuts and loosely install the provided M12 bolts and conical washers.
- On the passenger side, use an 18 mm crowfoot wrench due to narrow space around the frame rail.
-
Torque Bolts:
- Tighten all M12 fasteners to 76 ft-lbs (103 N*m) using a torque wrench with an 18 mm socket.
-
Raise Exhaust:
- Reattach the exhaust to the hangers using the bolts removed earlier.
Hardware List:
- (4) Bolt M12 x 1.25 x 30 CL8.8
- (4) Conical Washer 1/2"
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check all fasteners to ensure the hitch is securely mounted.
- Replace any damaged hitch or ball immediately.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Observe all safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg) tongue weight.
- Weight Distributing Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 30 minutes.
- For step-by-step photo instructions, scan the QR code provided in the manual or visit the website.

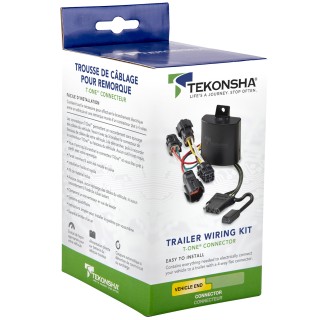

Installation Instructions for T-One® T-Connector for Toyota RAV4
Part Numbers:
- 118801
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear hatch and temporarily remove the rear threshold plate, privacy screen, storage covers, and floor covering.
- Open the rear doors and fold the rear seats forward.
-
Remove Rear Interior Panels:
- Partially remove the rear interior trim panels on both the driver and passenger sides.
- Remove the necessary trim panel fasteners to access the taillight wiring harness.
- Carefully set aside all removed items to avoid damage.
-
Locate the Taillight Wiring Harness:
- On both the driver and passenger sides, locate the vehicle’s taillight wiring harness.
- Disconnect the connectors carefully, ensuring not to damage the locking tabs. Clean all connector surfaces.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® T-Connector end with the yellow wire between the driver-side wiring harness connectors.
- Ensure the connectors are fully inserted and the locking tabs are securely in place.
-
Route the Passenger-Side T-Connector:
- Route the connector containing the green wire along the threshold to the passenger side.
- Insert the T-One® T-Connector end with the green wire between the passenger-side wiring harness connectors.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember. Avoid drilling into the vehicle floor or bed.
- Clean dirt and rustproofing from the grounding area.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify the area behind any surface before drilling to avoid damage or injury.
-
Route the Power Wire:
- Locate the black 12-gauge power wire from the T-One® T-Connector box on the driver’s side.
- Attach the provided black wire and route it along the vehicle’s exterior frame to the engine compartment, avoiding hot pipes, heat shields, and pinch points.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (provided).
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Mount the T-One® Black Box:
- Locate a flat surface in an out-of-the-way location and mount the black box module using the provided double-sided tape.
-
Secure the Harness:
- Use the provided cable ties to secure the remaining T-One® T-Connector harness, avoiding areas where it could pinch, cut, or melt.
-
Reassemble the Vehicle:
- Reinstall all panels, threshold covers, and storage items removed during installation.
- Ensure no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
- When in use, pull the 4-flat connector through the door and close carefully, avoiding pinching the harness in the door latch.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the stated product ratings.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
