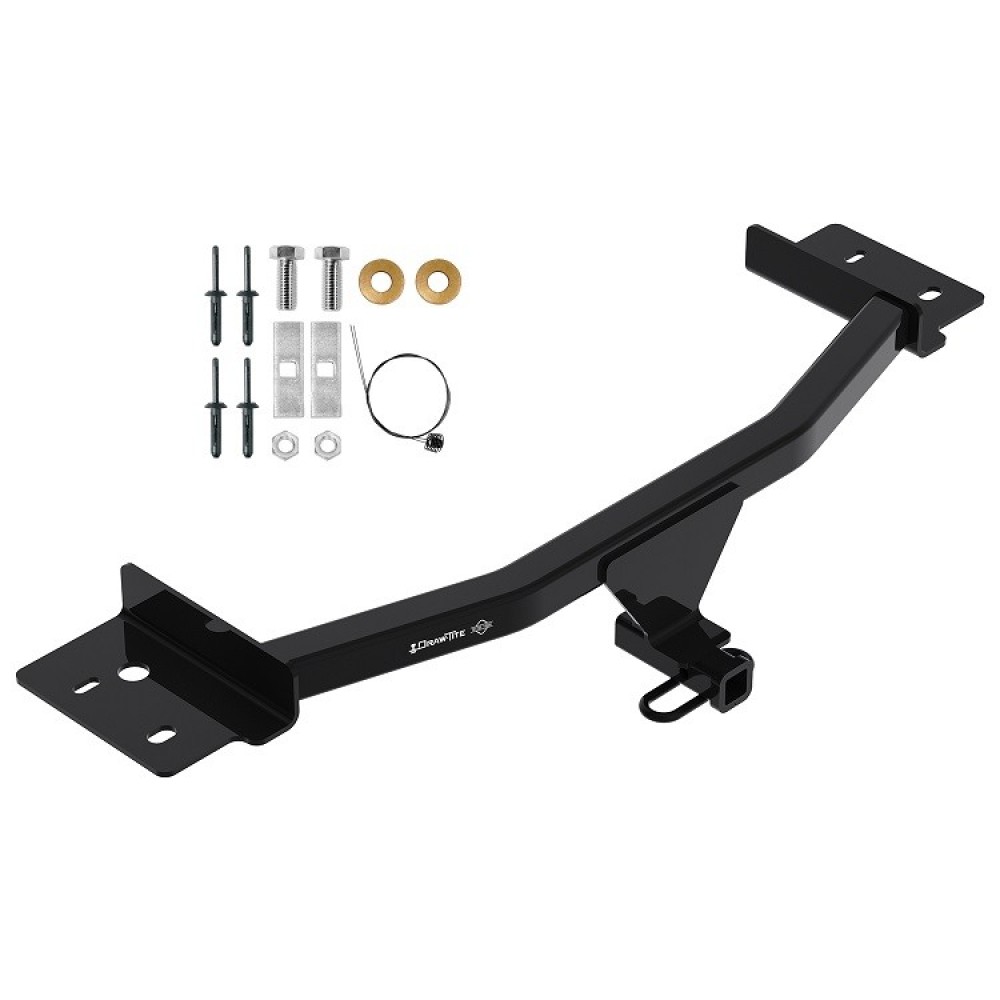

Trailer Tow Hitch For 20‑24 Ford Explorer 20‑24 Lincoln Aviator Class 2 1‑1/4" Towing Receiver
Model: 367872020 - 2024 Ford, Explorer, All Styles
2020 - 2024 Lincoln, Aviator, All Styles
Trailer Hitch Specs:
| Part Number | 36787 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
$178 97 $279.50 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$279.50 $178 97
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $44.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 36787
- UPC: 016118155754
- Includes: Class 2 Trailer Tow Hitch
Compatibility Chart
2020 - 2024 Ford, Explorer, All Styles
2020 - 2024 Lincoln, Aviator, All Styles
Trailer Hitch Specs:
| Part Number | 36787 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 20-24 Ford Explorer 20-24 Lincoln Aviator Class 2 1-1/4" Towing Receiver Install Notes
Installation Instructions for Ford Explorer (2020-Current)
Part Numbers:
- 36787
- 06194
- CQT36787
Wiring Access Location:
- PC3
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 7mm, 10mm, 21mm
- Tin Snips
- Flat Head Screwdriver
- Exhaust Removal Pliers
- Drill and 1/4" Drill Bit
- Plastic Rivet Gun
- Marker
- Tape Measure
- 6" Socket Extension
Installation Time:
- Estimated: 40 minutes (for professional installers)
Step-by-Step Instructions:
-
Remove Underbody Panel:
- Using a 7mm socket and screwdriver, remove the screws and plastic push rivets securing the underbody panel between the mufflers.
- Return the panel to the vehicle owner or trim to fit for reinstallation. Extensive trimming may be required.
-
Lower Exhaust:
- Using a 10mm socket, remove the bolt securing the exhaust hanger on the outboard side of the frame rail.
- Push the hanger up and outward to detach from the frame rail.
- Use exhaust removal pliers to remove the rubber exhaust hanger near the rear differential. Support the exhaust to prevent damage.
- Retain all fasteners for reinstallation.
-
Remove Heat Shields:
- Remove nuts holding the heat shield with a 10mm socket.
- Remove the screw attaching the heat shield to the wheel well liner using a 7mm socket.
- Cut a 1.5" hole forward of the forward attachment in the heat shield to clear the middle hitch fastener.
- Retain all fasteners for reinstallation.
-
Remove M16 Bumper Bolt:
- Using a 21mm socket, remove the bumper bolt from the bottom of the frame rail. Retain the bolt for reinstallation.
-
Remove Rear Fascia Fasteners:
- Remove the plastic push rivets from the lower edge of the rear fascia. Retain for reinstallation.
-
Remove Kick Sensor (if applicable):
- Using a 1/4" drill bit, remove the four (4) rivets holding the kick sensor in place.
-
Trim Fascia:
- Move the kick sensor aside to avoid damage during trimming.
- Locate the center of the fascia and trim per the dimensions provided in Figure 3. Dimensions are approximate.
-
Install Hitch:
- Use the provided pull wires to install carriage bolts and spacers through the forward attachment points in the vehicle frame. Leave pull wires attached.
- Ensure weldnuts are free from rust and debris.
- Raise the hitch into position, aligning the bracket holes with the frame rail weldnuts. Guide the pull wire ends through the hitch bracket holes and loosely reinstall the M16 bumper bolts removed earlier.
- Remove pull wires and attach conical washers (teeth side toward hitch) and hex nuts. Tighten all fasteners.
-
Tighten Fasteners:
- Tighten M16 fasteners to 146 ft-lb (198 N*m).
- Tighten 1/2" fasteners to 75 ft-lb (102 N*m).
-
Reinstall Modified Heat Shields:
- Reinstall the modified heat shields over the hitch bracket using all previously removed fasteners.
-
Reinstall Exhaust:
- Reinstall the kick sensor, if applicable.
- Raise the exhaust back into position and secure all hangers and fascia fasteners.
Torque Specifications:
- M16 bolts: 146 ft-lb (198 N*m)
- 1/2"-13 GR5 bolts: 75 ft-lb (102 N*m)
Hardware List:
- (2) Carriage Bolts, 1/2"-13 x 1.25" GR5
- (2) Spacers, 0.250" x 1" x 3"
- (2) Conical Washers, 1/2"
- (2) Hex Nuts, 1/2"-13
- (2) Pull Wires, 1/2"-13
- (4) Plastic Rivets
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
Additional Notes:
- Authorized Drawbar Kit: 36071 (sold separately; must be used in the RISE position only).
- Fastener Kit: 36787F.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
