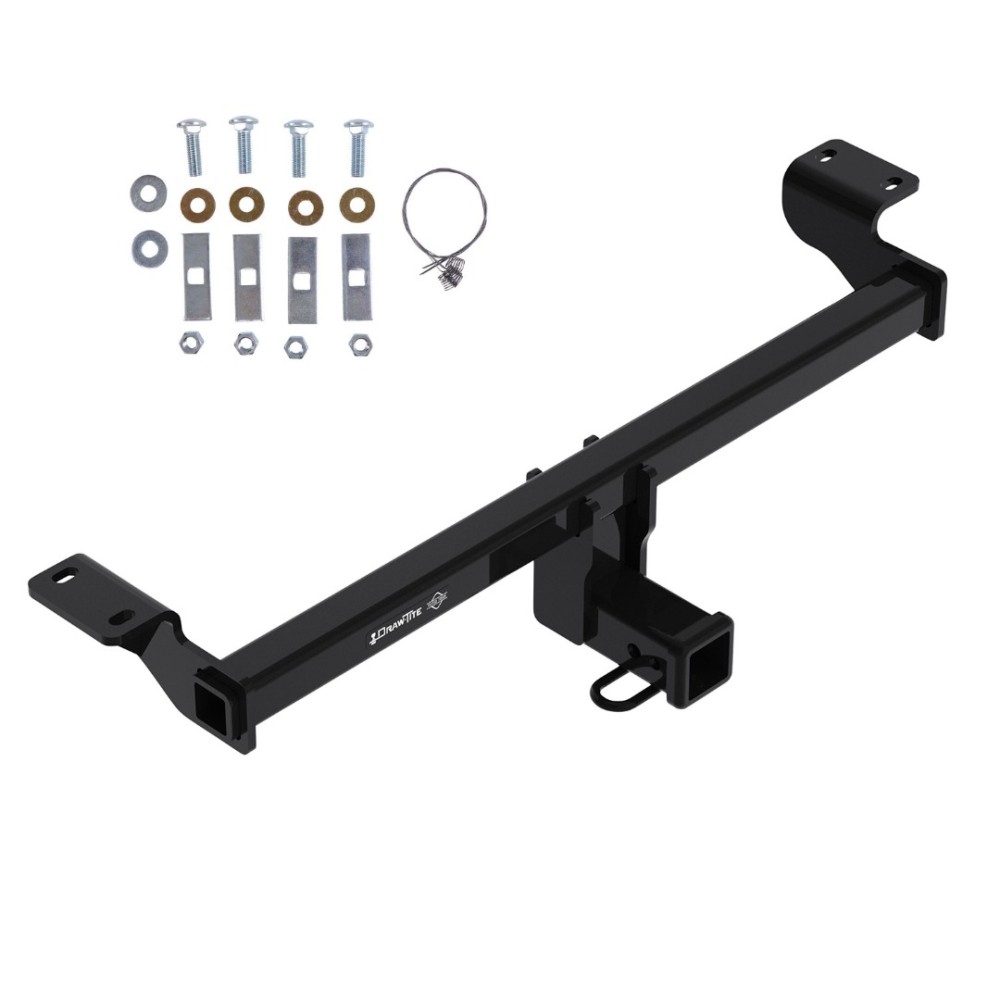

Trailer Tow Hitch For 20‑23 Ford Escape 21‑23 Lincoln Corsair Except Plug‑In‑Hybrid Class 3 2" Receiver Draw‑Tite
Model: 76449This Hitch Fits The Following Vehicles:
2020 - 2022 Ford, Escape, Except Plug-In-Hybrid
2020 - 2022 Ford, Escape, Except Plug-In-Hybrid
2023 – 2023 Ford, Escape, Except Plug-In-Hybrid
2021 - 2023 Lincoln, Corsair, Except Plug-In-Hybrid
Trailer Hitch Specs:
2021 - 2023 Lincoln, Corsair, Except Plug-In-Hybrid
Trailer Hitch Specs:
| Part Number | 76449 |
| Brand |
Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive.
Partial list of fitment years: 20 21 22 23 2020 2021 2022 2023
$245 57 $383.51 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
Best Price on Web Guarantee
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$383.51 $245 57
Pay in 4 interest-free installments of
$61.25
with
Learn more
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $61.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76449
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
This Hitch Fits The Following Vehicles:
2020 - 2022 Ford, Escape, Except Plug-In-Hybrid
2020 - 2022 Ford, Escape, Except Plug-In-Hybrid
2023 – 2023 Ford, Escape, Except Plug-In-Hybrid
2021 - 2023 Lincoln, Corsair, Except Plug-In-Hybrid
Trailer Hitch Specs:
2021 - 2023 Lincoln, Corsair, Except Plug-In-Hybrid
Trailer Hitch Specs:
| Part Number | 76449 |
| Brand |
Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive.
Partial list of fitment years: 20 21 22 23 2020 2021 2022 2023
Get Expert Help
Trailer Tow Hitch For 20-23 Ford Escape 21-23 Lincoln Corsair Except Plug-In-Hybrid Class 3 2" Receiver Draw-Tite Install Notes
Installation Instructions for 2020-Current Ford Escape and Lincoln Corsair
Part Numbers:
- 76449
- 84449
- CQT76449
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 3/4", 7 mm
- 6-inch Socket Extension
- Exhaust Removal Pliers
- Die Grinder
- Tape Measure
- Marker
- Utility Knife
- Tin Snips
Step-by-Step Instructions:
-
Lower Exhaust:
- Use an exhaust hanger removal tool to lower the muffler by removing the rearmost rubber hangers (one on the driver side and one on the passenger side).
- Support the exhaust to prevent damage.
- Spray lubricant or soapy water on the rubber hangers to ease removal.
-
Trim Heat Shield:
- Remove the four screws securing the heat shield.
- Trim the heat shield as shown in Figure 2 (Ford Escape) or Figure 3 (Lincoln Corsair).
- Return the screws and trimming area to the vehicle owner.
- Note: The heat shield can be trimmed without fully removing it.
-
Enlarge Access Hole:
- Use a die grinder to enlarge the access holes in the vehicle frame just enough to fit the 1/2" carriage bolts (both sides).
-
Trim Lower Fascia (Ford Escape Only):
- Using a tape measure, marker, and utility knife, measure, mark, and trim the lower fascia as shown in Figure 4.
-
Install Hitch:
- Tape the flat washer onto the front attachment holes of the frame rails.
- Using pull wires, feed the carriage bolts and spacers into the vehicle frame through the enlarged access holes.
- Leave the pull wires attached.
- Raise the hitch into position and guide the pull wires through the hitch bracket slots.
- Remove the pull wires and loosely install the conical washers (teeth side toward the hitch) and hex nuts onto the hitch.
-
Tighten Fasteners:
- Tighten all 1/2"-13 GR5 fasteners with a torque wrench to 75 ft-lbs (102 Nm).
-
Reinstall Exhaust:
- Raise the exhaust back into position and secure the hangers.

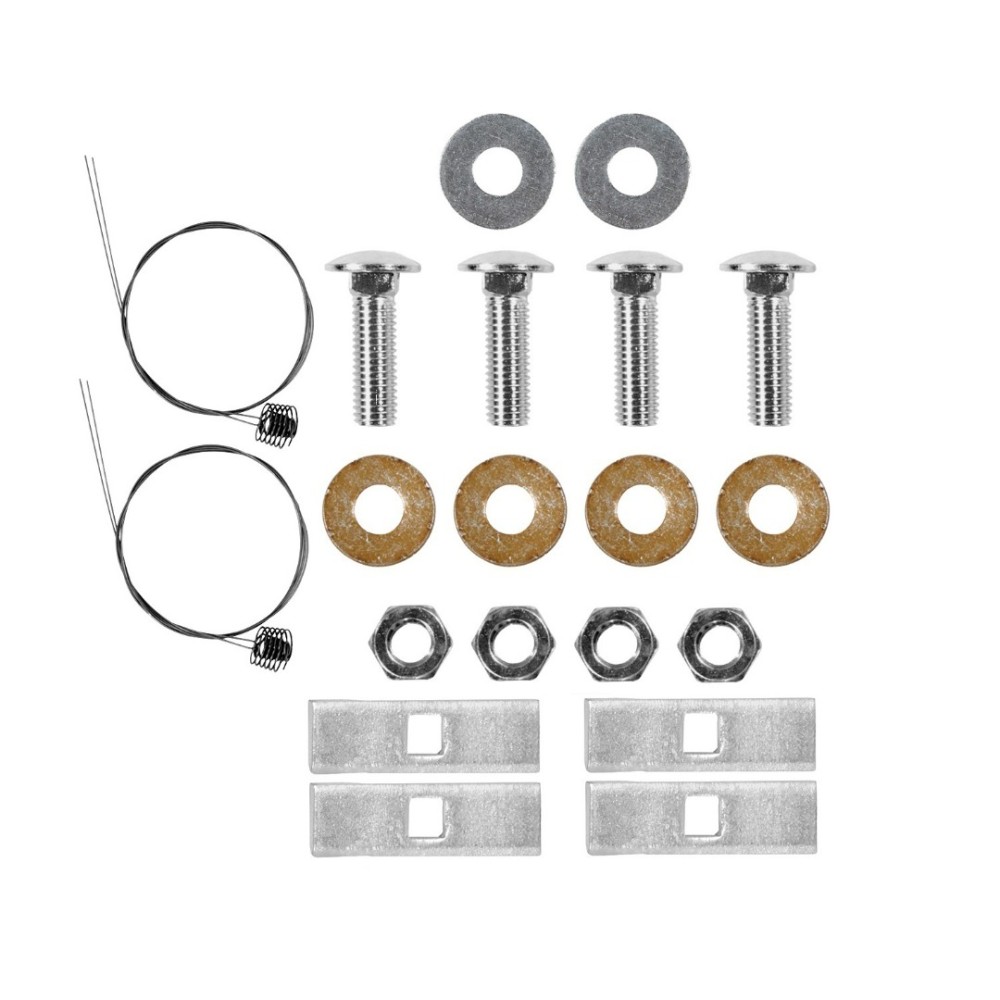

Hardware List:
- (4) Carriage Bolt 1/2"-13 x 1.75" GR5
- (4) Spacer 1/4" x 1" x 3"
- (2) Flat Washer 1/2"
- (4) Conical Washer 1/2"
- (4) Hex Nut 1/2"-13 GR5
- (4) Pull Wire 1/2"-13
Safety Notes:
- Always wear safety glasses during installation.
- Ensure proper torque to keep the hitch securely mounted to the vehicle.
- Regularly check that all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Observe safety precautions when working beneath the vehicle.
Specifications:
- Weight Carrying Capacity: 4,500 lbs (2,041 kg) trailer weight, 675 lbs (306 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 60 minutes.
- For detailed photo instructions, scan the QR code provided in the manual or visit the website.
