Trailer Tow Hitch For 20-23 Ford Explorer Lincoln Aviator Receiver w/ 1-7/8" and 2" Ball

Trailer Tow Hitch For 20‑23 Ford Explorer Lincoln Aviator Receiver w/ 1‑7/8" and 2" Ball

Model: 76320 23 63845 63816

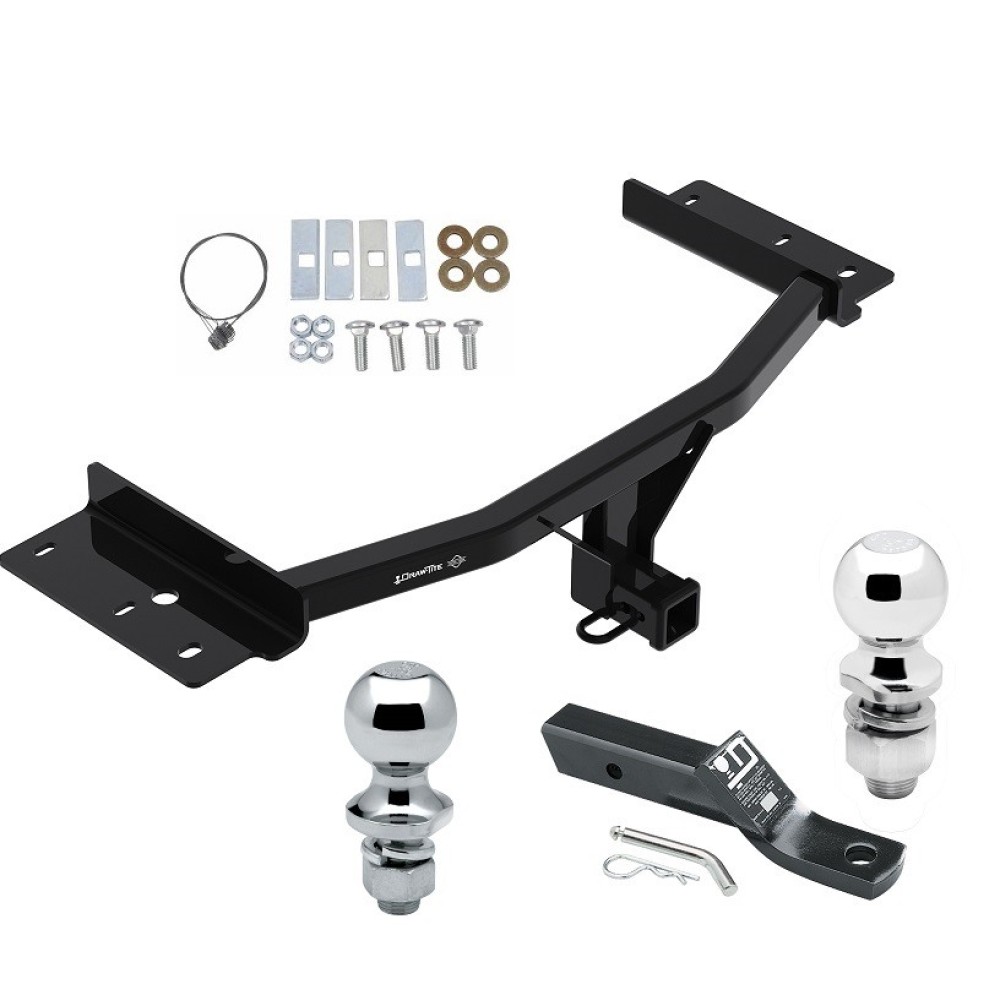

Includes Everything Pictured:
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions

Fits The Following Vehicles
2020 - 2024 Ford, Explorer, All Styles
2020 - 2024 Lincoln, Aviator, All Styles

Trailer Hitch Specs:

Part Number	76320
Brand	Draw-Tite
Finish	Black Powdercoat
Class	IV
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	900 lbs
Warranty	Lifetime
Installation Instructions

Ball Mount Specs:

Fits	2" x 2" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity	7,500 lb Gross Towing Weight 750 lb Tongue Weight
Drop	2" From inside top of hitch opening
Rise	3/4" from top of inside of hitch opening
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63816
Brand	Draw-Tite
Size	1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs
Towing Capacity	2,000 lbs. GTW
Material	Chrome
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63845
Brand	Draw-Tite
Size	2" x 1" x 2-1/8"
Towing Capacity	7,500 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 250 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024

See Full Description

$252 ⁵⁵ $392.82 36% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$392.82 $252 ⁵⁵

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $63.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 76320 23 63845 63816
Includes: Class 4 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	Yes
Color	Black
Drilling Required	No
Gross Towing Weight	6,000 lbs.
Hitch Class	IV
Material	Steel
Maximum Tongue Weight	900 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Trailer Hitch Specs:

Part Number	76320
Brand	Draw-Tite
Finish	Black Powdercoat
Class	IV
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	900 lbs
Warranty	Lifetime
Installation Instructions

Ball Mount Specs:

Fits	2" x 2" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity	7,500 lb Gross Towing Weight 750 lb Tongue Weight
Drop	2" From inside top of hitch opening
Rise	3/4" from top of inside of hitch opening
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63816
Brand	Draw-Tite
Size	1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs
Towing Capacity	2,000 lbs. GTW
Material	Chrome
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63845
Brand	Draw-Tite
Size	2" x 1" x 2-1/8"
Towing Capacity	7,500 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 250 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Tags: Trailer Tow Hitch For 20-24 Ford Explorer Lincoln Aviator Receiver w/ 1-7/8 and 2 Ball , 76320 23 63845 63816 , Explorer

Get Expert Help

Trailer Tow Hitch For 20-23 Ford Explorer Lincoln Aviator Receiver w/ 1-7/8" and 2" Ball Install Notes

Installation Instructions for 2020-Current Ford Explorer and Lincoln Aviator

Part Numbers:

76320
84320
CQT76320

Tools Required:

Ratchet
Torque Wrench
Safety Glasses
Sockets: 7mm, 10mm, 21mm
6-inch Socket Extension
Exhaust Removal Pliers
Marker
Tape Measure
Tin Snips
Flat Head Screwdriver
Drill Bit: 1/4-inch
Plastic Rivet Gun
Drill

Step-by-Step Instructions:

Remove Underbody Panel:
- If applicable, use a 7mm socket and screwdriver to remove screws and plastic push rivets holding the underbody panel. Remove the panel between the mufflers.
- Return the panel to the vehicle owner or trim to fit and reinstall. Note: Extensive trimming may be required.
Lower Exhaust:
- Using a 10mm socket, remove the bolt from the exhaust hanger on the outboard side of the frame rail. Push the hanger up and outward to remove it.
- Use exhaust hanger removal pliers to remove the rubber exhaust hanger near the rear differential. Support the exhaust to prevent damage.
Remove Heat Shields:
- Use a 10mm socket to remove nuts and a 7mm socket to remove screws holding the heat shield. Remove the shield and cut a 1.5-inch hole forward of the center attachment for the hitch. Retain fasteners for reinstallation.
Remove M16 Bumper Bolt:
- Using a 21mm socket, remove the bumper bolt from the bottom of the frame rail and retain it for reinstallation.
Remove Rearmost Fascia Fasteners:
- Remove plastic push rivets from the rearmost lower edge of the fascia.
Remove Kick Sensor (if applicable):
- Use a 1/4-inch drill bit to remove the four rivets holding the kick sensor in place.
Trim Fascia:
- Move the kick sensor aside to avoid damage during trimming.
- Locate the center of the fascia and trim as per Figure 3. Dimensions are approximate.
Install Hitch:
- Using the supplied pull wires, insert carriage bolts and spacers into the vehicle frame through the center attachment. Ensure weldnuts are clean.
- Raise the hitch into position, aligning holes in the hitch bracket with the frame rail weldnuts.
- Guide pull wire ends through the hitch bracket holes. Loosely reinstall M16 bumper bolts removed earlier.
- Remove pull wires, and install conical washers (teeth side toward hitch) and nuts.
Tighten Fasteners:
- Tighten all M16 fasteners to 146 lb-ft (198 Nm).
- Tighten all 1/2-inch fasteners to 75 lb-ft (102 Nm).
Reinstall Modified Heat Shields:
- Reinstall the modified heat shields over the hitch brackets using the retained fasteners. Reinstall fascia fasteners.
Reinstall Exhaust and Kick Sensor:
- Reinstall the kick sensor. Raise the exhaust back into position and reinstall all hangers and fasteners.

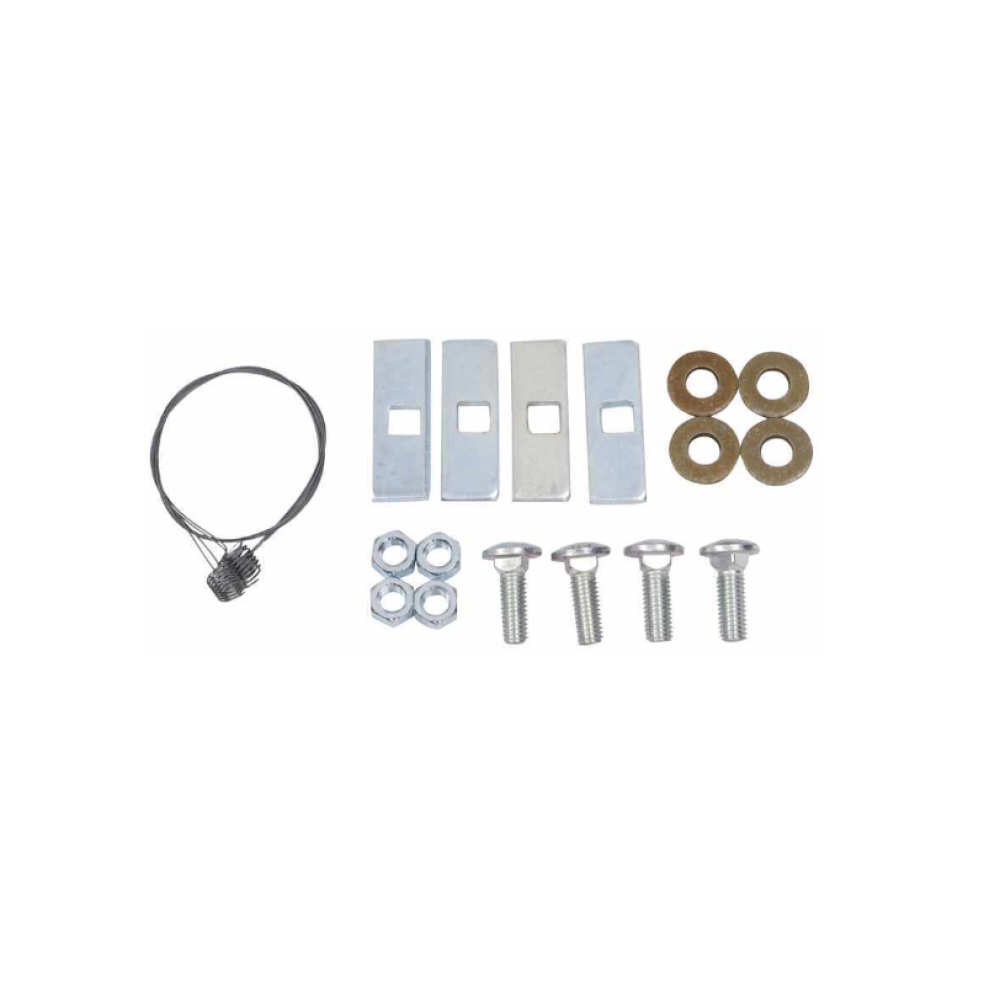

Hardware List:

(4) Carriage Bolt 1/2-13 x 1.25” GR5
(4) Spacer .250” x 1” x 3” (PN: 3022)
(4) Conical Washer 1/2” (PN: 01292008)
(4) Hex Nut 1/2”-13 GR5
(4) Pull Wire 1/2”-13 (PN: 5482)
(4) Rivet (PN: 110269)

Safety Notes:

Always wear safety glasses during installation.
Check hitch frequently to ensure all fasteners and the ball are properly tightened.
Replace a damaged hitch or ball immediately.
Observe all safety precautions when working beneath the vehicle.

Specifications:

Weight Carrying Capacity: 6,000 lbs (2,724 kg) trailer weight, 900 lbs (409 kg) tongue weight.
Weight Distributing Capacity: Not applicable.
Product complies with V.E.S.C. Regulation V-5 and SAE J684.
