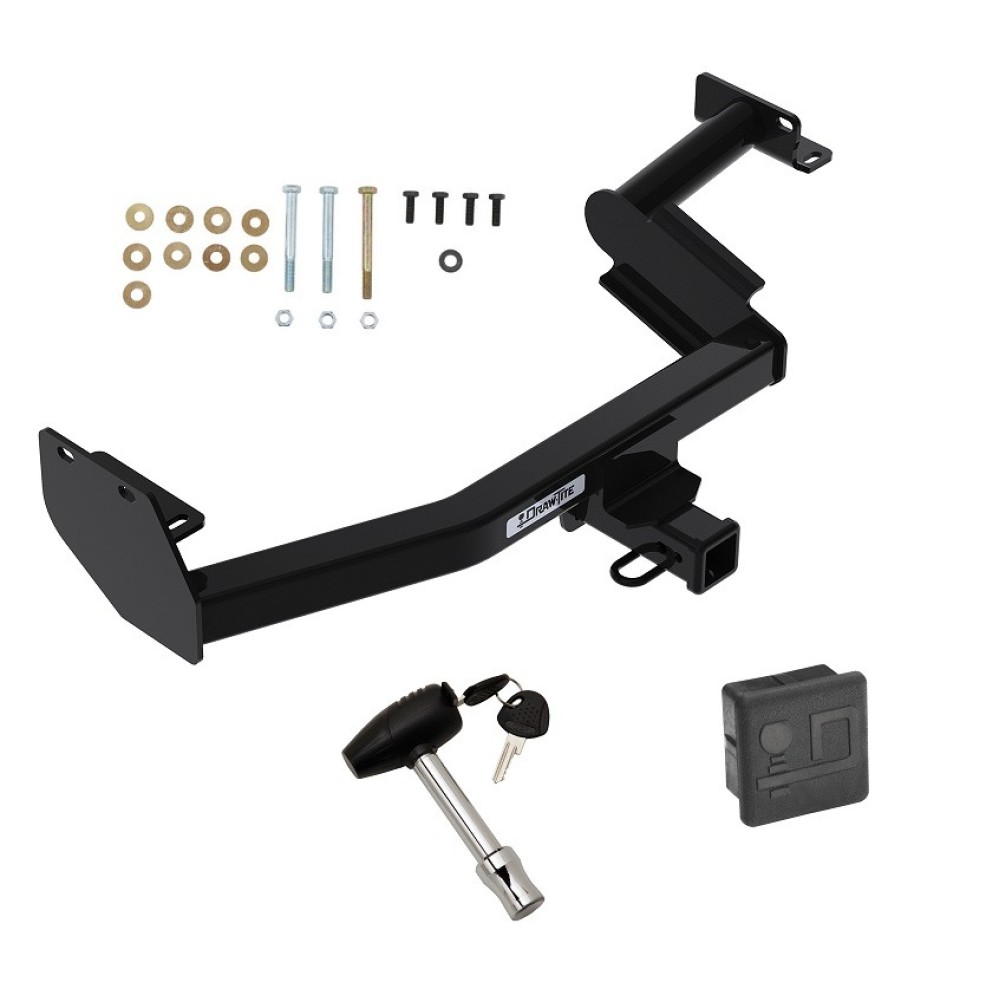

Trailer Tow Hitch For 20‑24 KIA Telluride Hyundai Palisade 2" Receiver w/ Security Lock Pin Key
Model: 76420 580407 7010Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2020 - 2024 KIA, Telluride, All Styles
2020 - 2024 Hyundai, Palisade, All Styles
Trailer Hitch Specs:
| Part Number | 76420 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
$262 06 $414.41 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$414.41 $262 06
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $65.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76420 580407 7010
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2020 - 2024 KIA, Telluride, All Styles
2020 - 2024 Hyundai, Palisade, All Styles
Trailer Hitch Specs:
| Part Number | 76420 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 20-24 KIA Telluride Hyundai Palisade 2" Receiver w/ Security Lock Pin Key Install Notes
Installation Instructions for 2020-Current Kia Telluride and Hyundai Palisade
Part Numbers:
- 76420
- 84420
- CQT76420
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 3/4”, 16 mm, 19 mm, 20 mm
- 6-inch Socket Extension
- Lubricant or Soapy Water
- Wire Brush
- Exhaust Removal Pliers
- Flat Head Screwdriver
- Tape Measure
- Marker
- Utility Knife
Step-by-Step Instructions:
-
Lower Spare Tire:
- Open the rear hatch to access the spare tire winch.
- Using a 20 mm socket, lower the spare tire and set it aside for later.
-
Remove Exterior Trim Panel:
- On the driver's side, use a flat head screwdriver to remove three push rivets.
- Carefully pull the trim panel off and set it aside for later reinstallation.
-
Trim Fascia:
- Using a tape measure, marker, and utility knife, measure, mark, and trim the lower fascia as required.
-
Lower Exhaust:
- Remove the rear and side hangers while supporting the exhaust to avoid damage.
- Spray lubricant or soapy water on the metal hanger rod and rubber isolator to ease removal.
-
Install Hitch A:
- Raise the hitch into position and install fasteners:
- Driver's Side: Insert items 1 and 2 and tighten using a 3/4" socket.
- Passenger's Side: Insert items 4 and 5 and tighten using a 19 mm socket.
- Fasteners should pass through both the hitch brackets and the vehicle frame for support.
- Raise the hitch into position and install fasteners:
-
Install Hitch B:
- Using a 16 mm socket, insert items 7 and 8 through the hitch bracket into the vehicle frame weld nuts.
- Hand-tighten initially.
- Clean debris or corrosion from existing weld nuts in the frame using a wire brush.
- Install remaining items 2, 3, and 6 onto matching bolts.
-
Torque Fasteners:
- Tighten M10 CL10.9 fasteners to 40 ft-lbs (54 N*m).
- Tighten 1/2 GR5 fasteners to 75 ft-lbs (102 N*m).
- Tighten M12 GR8.8 fasteners to 68 ft-lbs (92 N*m).
-
Reinstall Components:
- Reinstall the exhaust, trim panel, and spare tire.
- Push the spare tire forward while raising it to provide additional clearance for the hitch.
Hardware List:
- (2) Hex Bolt 1/2"-13 x 4.50 GR5
- (5) Conical Washer 1/2"
- (2) Hex Nut 1/2"-13
- (1) Bolt M12 x 1.75 x 120 CL8.8
- (1) Flat Washer 1/2" Hardened
- (1) Hex Nut M12 x 1.75 CL8
- (4) Bolt M10 x 1.25 x 30 CL10.9
- (4) Conical Washer 7/16"
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch periodically to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Observe all safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 5,000 lbs (2,270 kg) trailer weight, 500 lbs (227 kg) tongue weight.
- Weight Distributing Capacity: 6,000 lbs (2,721 kg) trailer weight, 750 lbs (340 kg) tongue weight.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
