Trailer Tow Hitch For 20-24 Mazda CX-30 Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 20-24 Mazda CX-30 Class 3 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
$331.23
- Stock: In Stock
- Brand: Draw-Tite
- Model: 76603 118822 23 63816
Verify Product Fitment

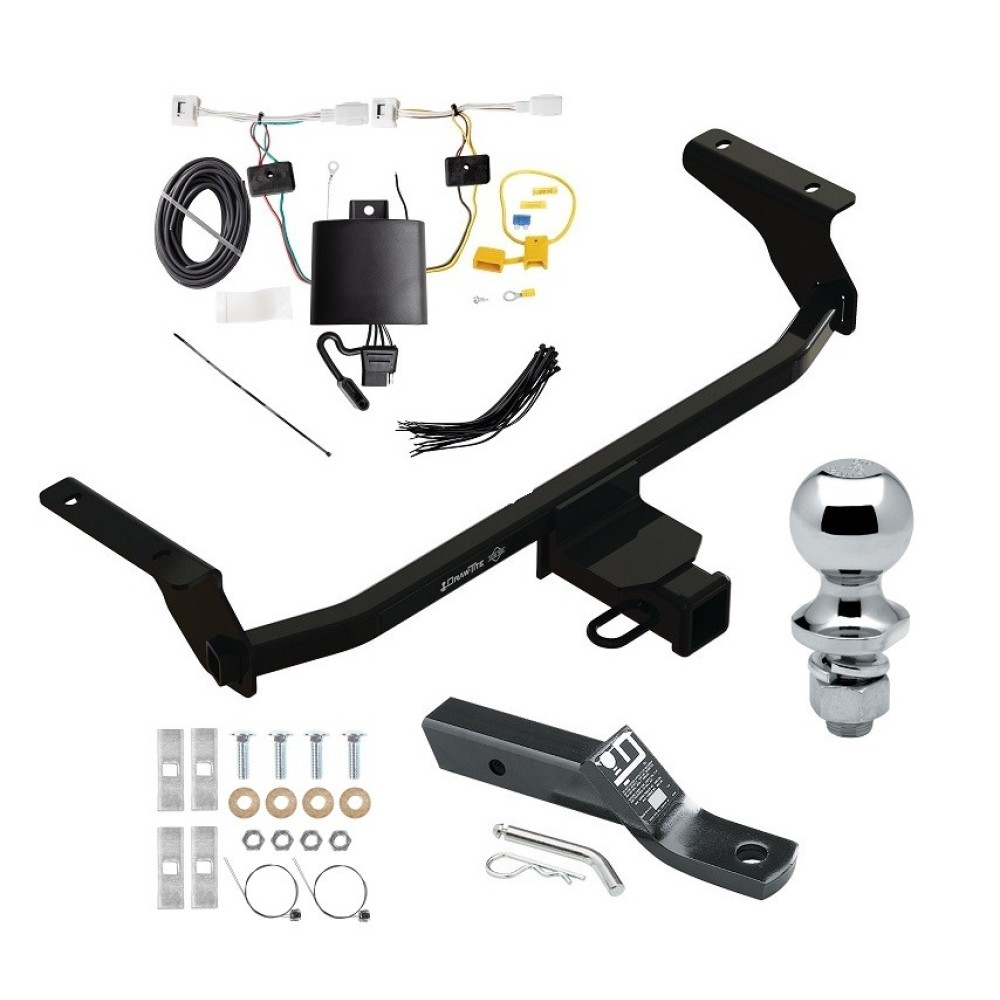

Includes Everything Pictured:

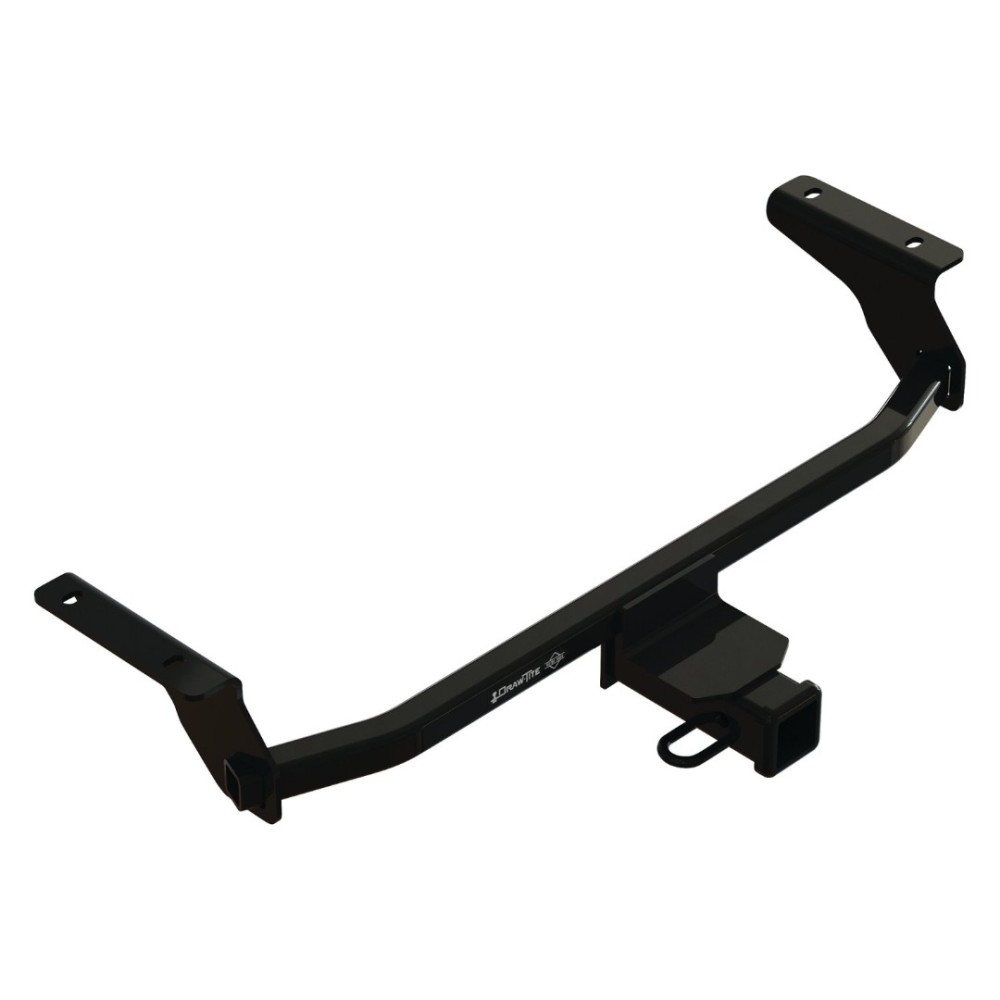

Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
2020 - 2024 Mazda, CX-30, All StylesTrailer Hitch Specs:
| Part Number | 76603 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | III |
| Receiver size opening | 2" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | 2,000 lbs |
| Max Tongue Weight | 300/300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118822 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive.
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
Compatibility Chart:
| Year Range | Make | Model | Style |
|---|
