Trailer Tow Hitch For 20-24 Mazda CX-30 Deluxe Package Wiring 2" Ball Mount and Lock

Trailer Tow Hitch For 20-23 Mazda CX-30 Deluxe Package Wiring 2" Ball Mount and Lock
Trailer Tow Hitch For 20-23 Mazda CX-30 Deluxe Package Wiring 2" Ball Mount and Lock
Trailer Tow Hitch For 20-23 Mazda CX-30 Deluxe Package Wiring 2" Ball Mount and Lock
Trailer Tow Hitch For 20-23 Mazda CX-30 Deluxe Package Wiring 2" Ball Mount and Lock
Trailer Tow Hitch For 20-23 Mazda CX-30 Deluxe Package Wiring 2" Ball Mount and Lock
Trailer Tow Hitch For 20-23 Mazda CX-30 Deluxe Package Wiring 2" Ball Mount and Lock
Trailer Tow Hitch For 20-23 Mazda CX-30 Deluxe Package Wiring 2" Ball Mount and Lock
Trailer Tow Hitch For 20-23 Mazda CX-30 Deluxe Package Wiring 2" Ball Mount and Lock
Trailer Tow Hitch For 20-23 Mazda CX-30 Deluxe Package Wiring 2" Ball Mount and Lock
Trailer Tow Hitch For 20-23 Mazda CX-30 Deluxe Package Wiring 2" Ball Mount and Lock
Trailer Tow Hitch For 20-23 Mazda CX-30 Deluxe Package Wiring 2" Ball Mount and Lock
Trailer Tow Hitch For 20-23 Mazda CX-30 Deluxe Package Wiring 2" Ball Mount and Lock
Trailer Tow Hitch For 20-24 Mazda CX-30 Deluxe Package Wiring 2" Ball Mount and Lock
$344.58
  • Stock: Pre-Order
  • Brand: Draw-Tite
  • Model: 76603 118822 7005111 7010

Applies to this product only

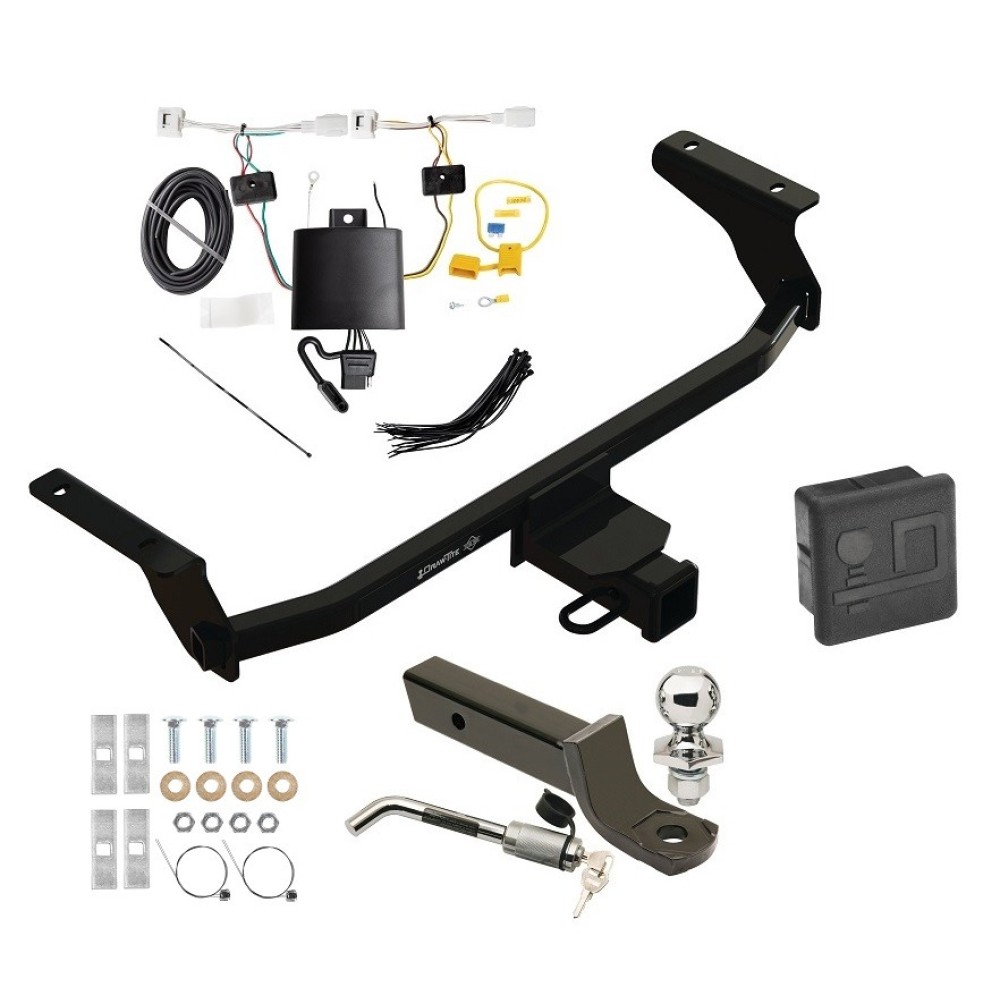

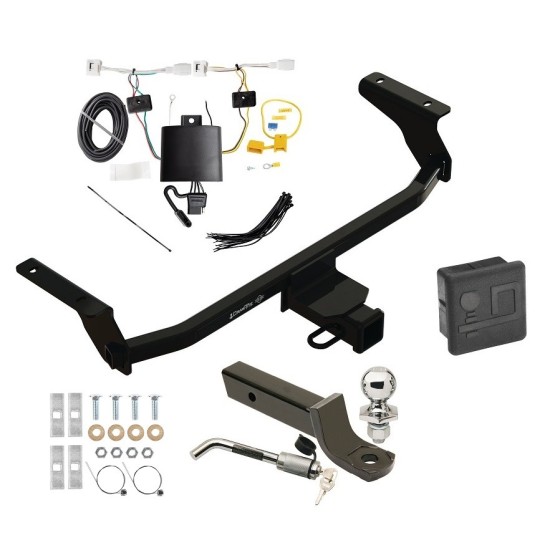

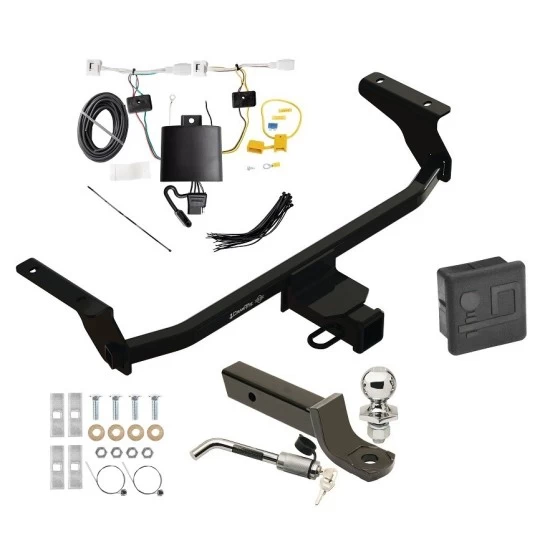

Includes Everything Pictured:

Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Locking Pin/Clip
2" Chrome Ball
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions



Fits The Following Vehicles:

2020 - 2024    Mazda, CX-30, All Styles


Trailer Hitch Specs:
Part Number 76603
Brand Draw-Tite
Finish Black Powdercoat
Class III
Receiver size opening 2"
Max gross trailer weight 2,000 lbs
Max GTW w/ weight distribution 2,000 lbs
Max Tongue Weight 300/300 lbs
Warranty Lifetime
Installation Instructions


 Wiring Kit Specs:

Part Number 118822
Brand Tekonsha
Warranty 1 Year
Installation Instructions


Ball Mount Specs:

Part Number 7005111
Brand

Reese Towpower

Finish Black Powder Coat
Towing Capacity

6000 lbs

Tongue Weight Capacity 600 lbs
Fits 2" Receiver
Drop

2"

Rise

3/4"

Warranty 1 Year

Questions or Comments? Call 702-374-8999

Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive.

Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
Specification
Attachment Location Rear
Color Black
Drawbar Included No
Drilling Required Yes
Gross Towing Weight 2,000 lbs.
Hitch Class III
Material Steel
Maximum Tongue Weight 300 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Round Tube
Wiring Included Yes
