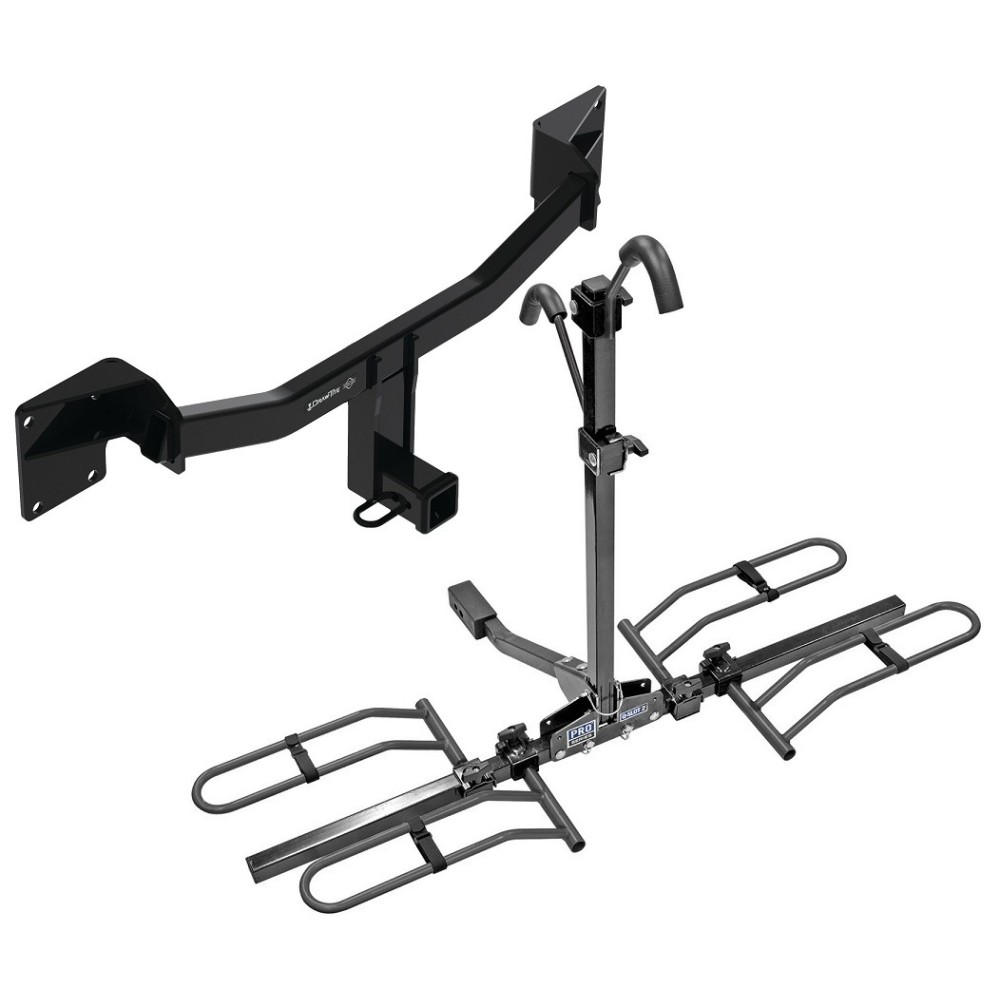

Trailer Tow Hitch For 2021‑2023 Buick Envision 2" Receiver Class 3 Platform Style 2 Bike Rack
Model: 76471 63134Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Installation Hardware
Installation Instructions
2021-2023 Buick, Envision, All Styles
Trailer Hitch Specs:
| Part Number | 76471 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 34.58 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
$413 59 $601.67 31% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$601.67 $413 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $103.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76471 63134
- Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Installation Hardware
Installation Instructions
2021-2023 Buick, Envision, All Styles
Trailer Hitch Specs:
| Part Number | 76471 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 34.58 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
Get Expert Help
Trailer Tow Hitch For 2021-2023 Buick Envision 2" Receiver Class 3 Platform Style 2 Bike Rack Install Notes
Installation Instructions for Buick Envision
Part Numbers:
- 76471
- 84471
- CQT76471
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Flat Head Screwdriver
- Plastic Trim Tools
- T15 and T20 Star Drivers
- Sockets: 7mm, 15mm
- 6” Socket Extension
- Tape Measure
- Marker
- Utility Knife
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 3,500 lbs (1,587 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Weight Distributing:
- Not Applicable
Step-by-Step Instructions:
-
Remove Taillight Covers:
- Open the tailgate. Using a flat head screwdriver, remove (1) push rivet from the trim piece near the driver-side taillight.
- Use plastic trim tools to gently pull off the trim piece and set it aside for reuse. Repeat on the passenger side.
-
Remove Rear Bumper Fascia:
- Bottom Center: Use a T15 star driver to remove (4) screws. Set fasteners aside for reinstallation.
- Top Fascia Area: Use a T20 star driver to remove (2) screws near the trunk weatherstrip.
- Wheel Wells: On the driver side, use a T15 star driver to remove (3) screws from the rear side of the wheel well trim. Repeat on the passenger side.
- Disconnect Lights: Detach the light on the wheel well trim before partially removing the fascia on both sides.
- Hidden Screws: Using a 7mm socket, pull back the wheel well trim and remove (1) screw from both sides.
- Carefully disconnect all wiring harnesses from the fascia and set the fascia aside safely.
-
Remove Bumper Beam:
- Use a 15mm socket with a 6” extension to remove (4) M10 bolts and (4) M10 flange nuts.
- Lower the exhaust hanger bracket gently before fully removing the bumper beam. Return the bumper beam to the vehicle owner and set bolts and nuts aside for reuse.
-
Install Hitch:
- Raise the hitch into position and align the holes with the studs in the end panel.
- Raise the exhaust hanger bracket back into position and loosely reinstall the (4) existing M10 bolts and (4) M10 flange nuts.
- Tighten all M10-1.50 fasteners to 53 lb-ft (72 N·m) using a torque wrench.
-
Trim Fascia:
- Locate the center of the fascia. Use a tape measure, marker, and utility knife to cut a notch in the bottom of the fascia approximately 4.25” wide by 3.5” tall.
- Ensure the area is clear of electrical wiring before trimming.
-
Reinstall Fascia:
- Reconnect all wiring first. Then reinstall the fascia, wheel well trim lights, and taillight covers using the original hardware removed in Steps 1 and 2.
Safety Notes:
- Regularly check all fasteners to ensure the hitch and ball mount are secure.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Wear safety glasses and follow precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class II
- Compliance: This product meets safety specifications as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
