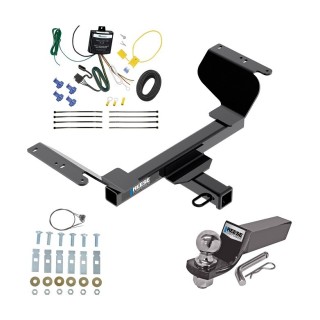

Installation Instructions for 2018-Current Chevrolet Equinox and GMC Terrain

Part Numbers:

• 76419
• 84419
• CQT76419

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 15 mm, 11/16”
• T15 Torx Bit Socket
• 6-inch Socket Extension
• Exhaust Removal Pliers

Step-by-Step Instructions:

1. Lower Muffler:

   • Spray lubricant on the rubber hangers to ease removal.
   • Ensure the exhaust is supported before removing the rubber hangers.
   • Remove the following:
     • (2) screws from the bottom of the rear fascia using a T15 Torx bit.
     • (2) bolts from each rear exhaust hanger bracket using a 15 mm socket.
     • Rubber isolator from the hanger in front of the muffler.
   • Lower the exhaust one side at a time by gently pulling on the rear fascia.
   • If needed, pull the wire harness off the passenger-side frame for additional clearance. Reinstall it after hitch installation.

2. Install Hardware:

   • Feed the coiled end of the pull wire through an attachment hole in the frame and out through the access hole.
   • Attach carriage bolts and spacers to the pull wire and pull them into position (3 per side). Leave the pull wire attached until the hitch is raised.

3. Install Hitch:

   • Carefully raise the hitch into position without pushing the hardware back into the frame.
   • Loosely install conical washers (teeth side toward the hitch) and hex nuts onto the carriage bolts.

4. Reinstall Muffler:

   • Reverse the steps from Step 1 to reinstall the muffler.

5. Torque Fasteners:

   • Tighten all 7/16-14 GR5 fasteners to 50 ft-lbs (68 Nm) using a torque wrench.

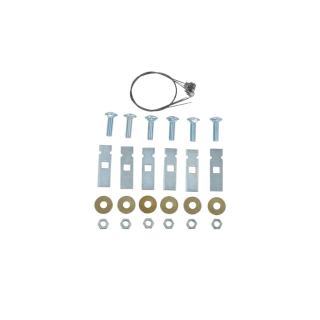

Hardware List:

• (6) Carriage Bolt 7/16”-14 x 1.5” GR5
• (6) Spacer Block 1/4” x 7/8” x 3” (PN: HE-2370-000)
• (6) Conical Washer 7/16” (PN: 01292007)
• (6) Hex Nut 7/16”-14
• (6) Pull Wire 7/16” (PN: 5481)

Safety Notes:

• Always wear safety glasses during installation.
• Check the hitch periodically to ensure all fasteners and the ball are properly tightened.
• Replace any damaged hitch or ball immediately.
• Do not cut or modify the hitch.
• Observe all safety precautions when working under the vehicle.

Specifications:

• Weight Carrying Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg) tongue weight.
• Weight Distributing Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg).
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 35 minutes.
• For step-by-step photo instructions, scan the QR code provided in the manual.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 119191

Wiring Access Location:

• Near the rear of the vehicle, behind the bumper, or as indicated for vehicle-specific configurations.

Tools Required:

• Drill with a 3/32" drill bit.
• Phillips head #2 screwdriver.
• Wire cutters, wire strippers/crimpers.
• Tester or volt meter.
• Socket and ratchet set.
• Double-sided tape (provided).

Step-by-Step Instructions:

Installation of the Module:

1. Determine the mounting location for the module.

   • Use the provided double-sided tape to secure the module.
   • Ensure the epoxy side of the module faces downward to prevent water buildup.

2. Connect the module’s black wire to a 12-gauge (or larger) power wire using a yellow butt connector.

3. Locate a suitable grounding point near the module:

   • Drill a 3/32" hole if necessary and secure the white wire using the provided eyelet and self-tapping screw.
   • Clean the grounding area of dirt and rustproofing.

   Caution: Verify what is behind the surface before drilling to avoid damage or injury.

Routing Power to the Battery:

4. Route the power wire to the vehicle’s positive battery terminal:

   • Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
   • Do not insert the 15-amp fuse yet.

   Caution: Ensure the module is connected to a constant power source. Avoid using power sources that are interrupted when the vehicle is off.

Finalizing Installation:

5. Secure the wiring harness with the provided cable ties to prevent damage or rattling.

   • Avoid areas where wires may be pinched, cut, or melted.

6. Reconnect the vehicle’s negative (-) battery cable.

7. Insert the 15-amp fuse into the fuse holder and close the cap.

8. Test the installation with a test light or trailer to verify functionality.

   • Test each function independently and in combination.

   Specifications:

   • Max. stop/turn light: 2 per side (4.2 amps).
   • Max. tail lights: (7.5 amps).

Hardware List:

• T-Connector adapter.
• 15-amp fuse.
• Fuse holder.
• Eyelet and self-tapping screw.
• Double-sided tape.
• Cable ties.

Safety Notes:

• Handle all components with care to avoid damage.
• Ensure all connections are clean and securely fastened.
• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.

Manufacturer Notes:

• Read and follow all vehicle warnings and installation instructions.
• Use a test light or trailer to confirm proper installation.
• Consult the vehicle owner’s manual for additional details.
