Trailer Tow Hitch For 23-24 Mazda CX-50 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball

Trailer Tow Hitch For 23-24 Mazda CX-50 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 23-24 Mazda CX-50 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 23-24 Mazda CX-50 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 23-24 Mazda CX-50 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 23-24 Mazda CX-50 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 23-24 Mazda CX-50 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 23-24 Mazda CX-50 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 23-24 Mazda CX-50 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 23-24 Mazda CX-50 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 23-24 Mazda CX-50 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 23-24 Mazda CX-50 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 23-24 Mazda CX-50 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 23-24 Mazda CX-50 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
$329.18
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 76624 118871 23 63816

Applies to this product only

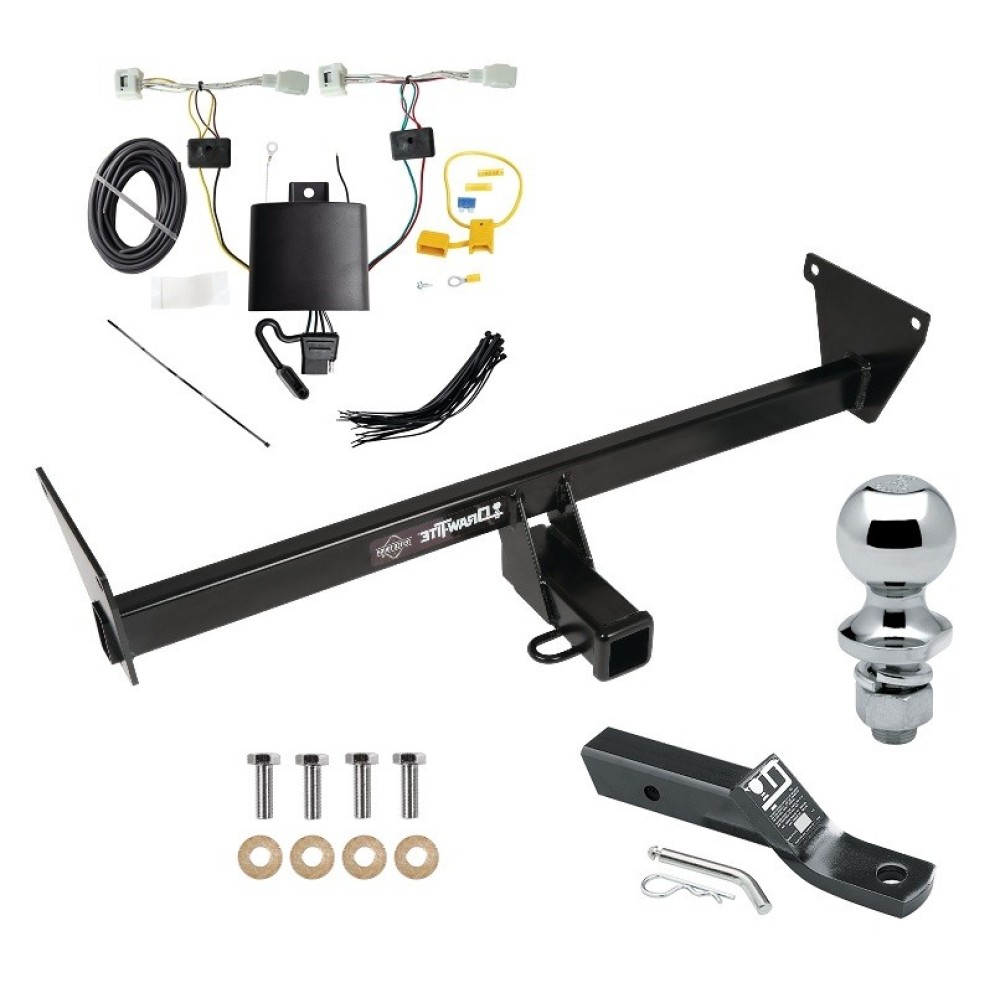

Includes Everything Pictured:

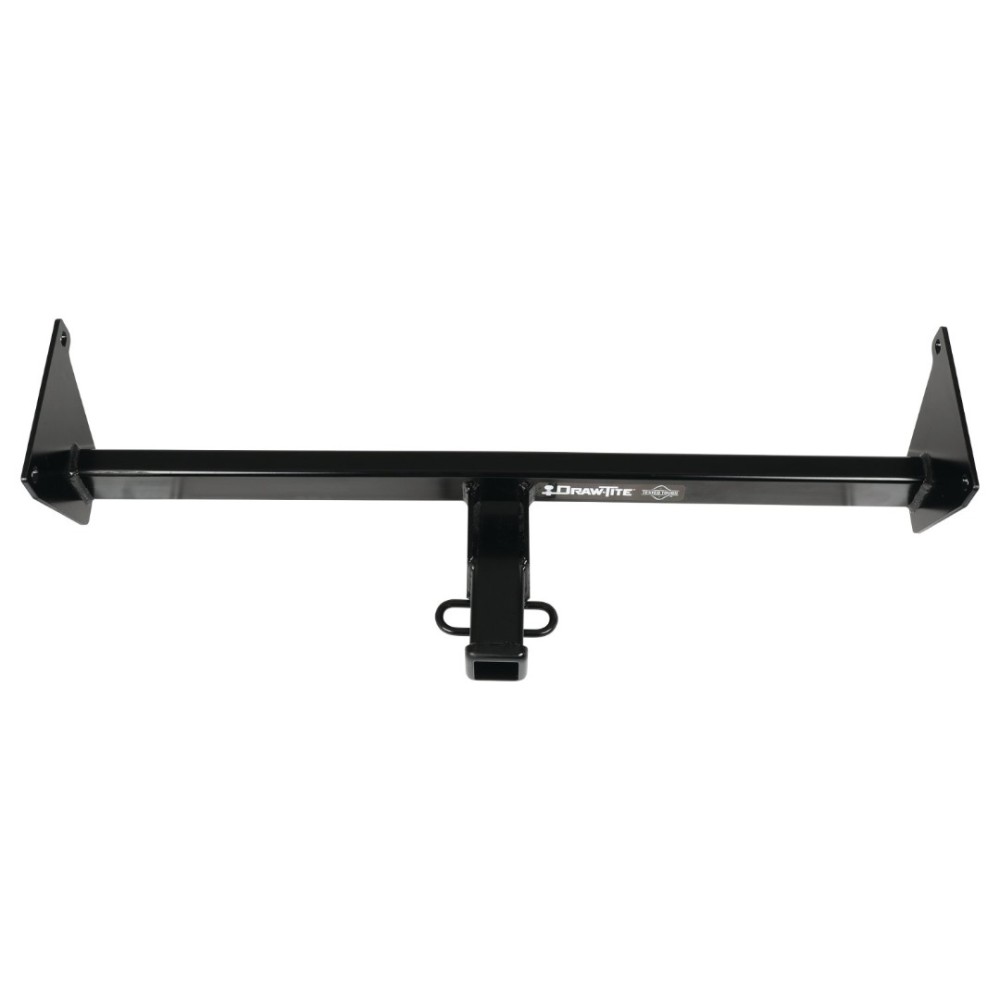

Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball

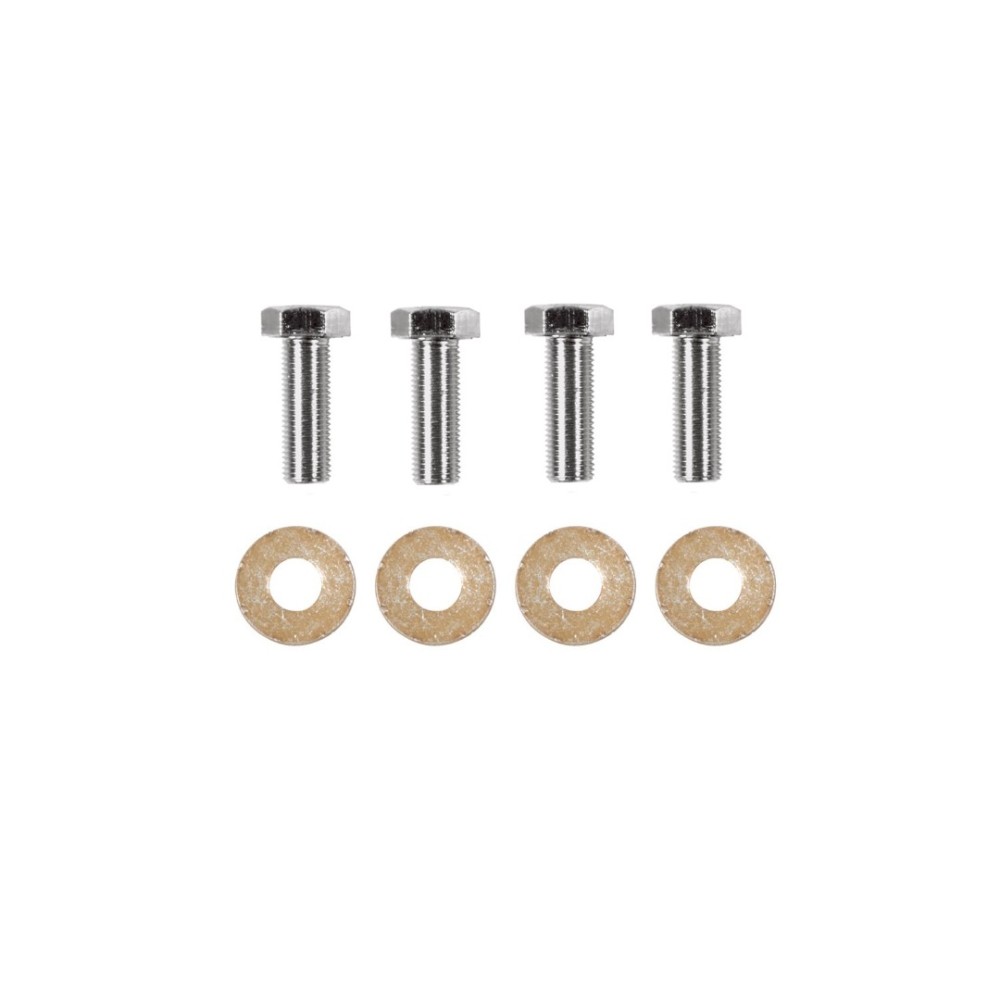

Installation Hardware
Installation Instructions



Fits The Following Vehicles:

2023 - 2024    Mazda, CX-50, All Styles


Trailer Hitch Specs:
Part Number 76624
Brand Draw-Tite
Finish Black Powdercoat
Class III
Receiver size opening 2"
Max gross trailer weight 3,500 lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 525 lbs.
Warranty Lifetime
Installation Instructions


   Wiring Kit Specs:

Part Number 118871
Brand Tekonsha
Warranty 1 Year
Installation Instructions



Ball Mount Specs:

Fits 2" x 2" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity 7,500 lb Gross Towing Weight
750 lb Tongue Weight
Drop 2" From inside top of hitch opening
Rise 3/4" from top of inside of hitch opening
Warranty Lifetime


Hitch Ball Specs:

Part Number 63816
Brand Draw-Tite
Size 1-7/8" x 1" x 2-1/8",  torgue to 160 ft. lbs
Towing Capacity 2,000 lbs. GTW
Material Chrome
Torque torgue to 160 ft. lbs
Ball Hole Diameter 1"
Warranty Lifetime

Questions or Comments? Call 702-374-8999

Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive.

Partial list of fitment years: 23 24 2023 2024
Specification
Attachment Location Rear
Color Black
Drawbar Included No
Drilling Required No
Gross Towing Weight 3,500 lbs.
Hitch Class III
Material Steel
Maximum Tongue Weight 525 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Round Tube
Wiring Included Yes
