Reese Trailer Tow Hitch For 21-24 Acura TLX All Styles Complete Package w/ Wiring Draw Bar and 2" Ball

Reese Trailer Tow Hitch For 21-24 Acura TLX All Styles Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 21-24 Acura TLX All Styles Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 21-24 Acura TLX All Styles Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 21-24 Acura TLX All Styles Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 21-24 Acura TLX All Styles Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 21-24 Acura TLX All Styles Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 21-24 Acura TLX All Styles Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 21-24 Acura TLX All Styles Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 21-24 Acura TLX All Styles Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 21-24 Acura TLX All Styles Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 21-24 Acura TLX All Styles Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 21-24 Acura TLX All Styles Complete Package w/ Wiring Draw Bar and 2" Ball
Reese Trailer Tow Hitch For 21-24 Acura TLX All Styles Complete Package w/ Wiring Draw Bar and 2" Ball
$348.72
  • Stock: In Stock
  • Brand: Reese
  • Model: 78296 3593 118857 63820

Applies to this product only

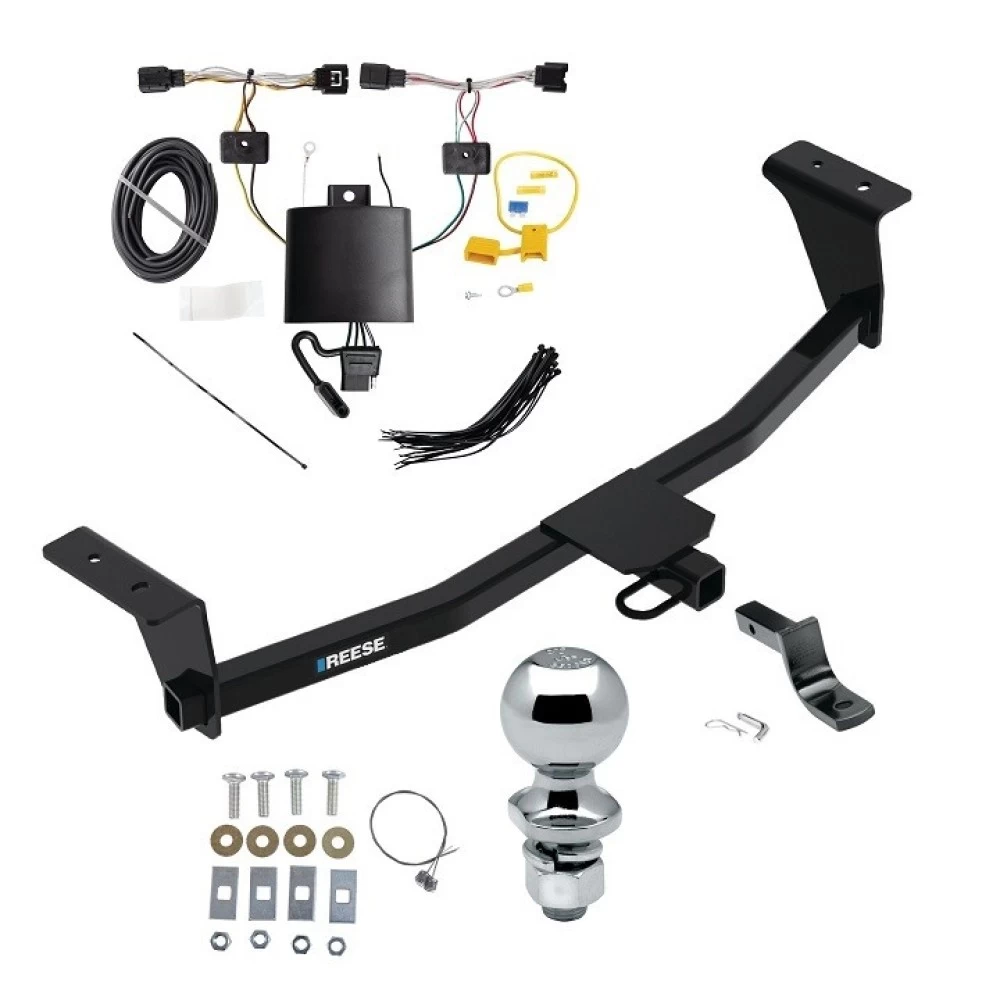

Includes Everything Pictured:

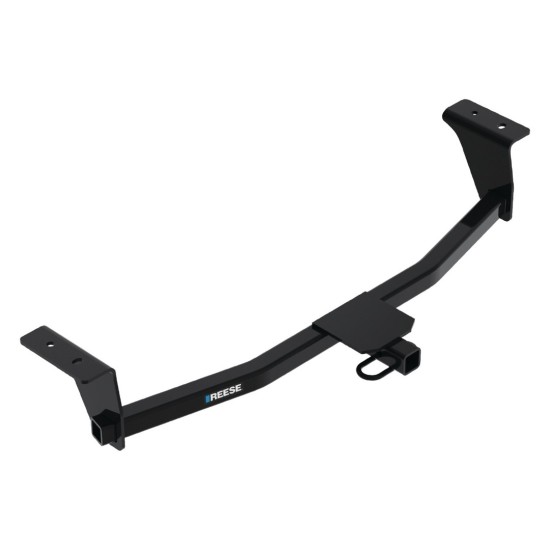

Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
2" Chrome Ball
Installation Hardware
Installation Instructions





Fits The Following Vehicles:


2021 - 2024    Acura, TLX, All Styles


Trailer Hitch Specs:

Part Number 78296
Brand Reese
Finish Black Powdercoat
Class I
Receiver size opening 1-1/4
Max gross trailer weight 2,000 lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 200 lbs
Warranty Lifetime
Installation Instructions



Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (includes pin and clip)


Ball Mount Specifications:

Fits 1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 6-5/8" From Center of Pin Hole to Center of Ball Hole
Rise 2-1/8" From inside top of hitch opening
Towing Capacity in Rise Position 2,000 lb Gross Towing Weight
200 lb Tongue Weight
Drop 2-3/4" From inside top of hitch opening
Towing Capacity in Drop Position 2,000 lb Gross Towing Weight
200 lb Tongue Weight
Ball Hole Diameter 3/4"
Pin hole diameter 1/2"
Warranty Limited Lifetime

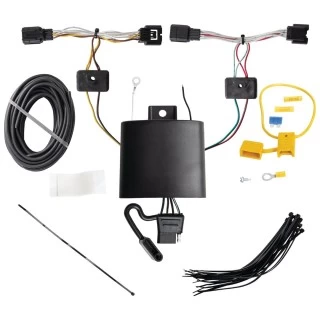

Wiring Kit Specs:

Part Number 118857
Brand Tekonsha
Warranty 1 Year
Installation Instructions


Hitch Ball Specs:

Part Number 63820
Brand Draw-Tite
Size 2" x 3/4" x 1-1/2"
Towing Capacity 3,500 lbs. GTW
Material Chrome
Torque Torque to 160 ft. lbs
Shank Diameter 3/4"
Warranty Lifetime

Questions or Comments? Call 702-374-8999

REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.

Partial list of fitment years: 21 22 23 24 2021 2022 2023 2024
Specification
Attachment Location Rear
Color Black
Drawbar Included Yes
Drilling Required Yes
Gross Towing Weight 2,000 lbs.
Hitch Class I
Material Steel
Maximum Tongue Weight 200 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 1.25in.
Receiver Type Square Tube
