Trailer Tow Hitch For 22-25 Genesis GV70 Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball

Trailer Tow Hitch For 22-25 Genesis GV70 Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 22-25 Genesis GV70 Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 22-25 Genesis GV70 Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 22-25 Genesis GV70 Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 22-25 Genesis GV70 Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 22-25 Genesis GV70 Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 22-25 Genesis GV70 Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 22-25 Genesis GV70 Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 22-25 Genesis GV70 Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 22-25 Genesis GV70 Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 22-25 Genesis GV70 Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 22-25 Genesis GV70 Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 22-25 Genesis GV70 Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
$461.53
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 76577 118851 23 63816

Applies to this product only

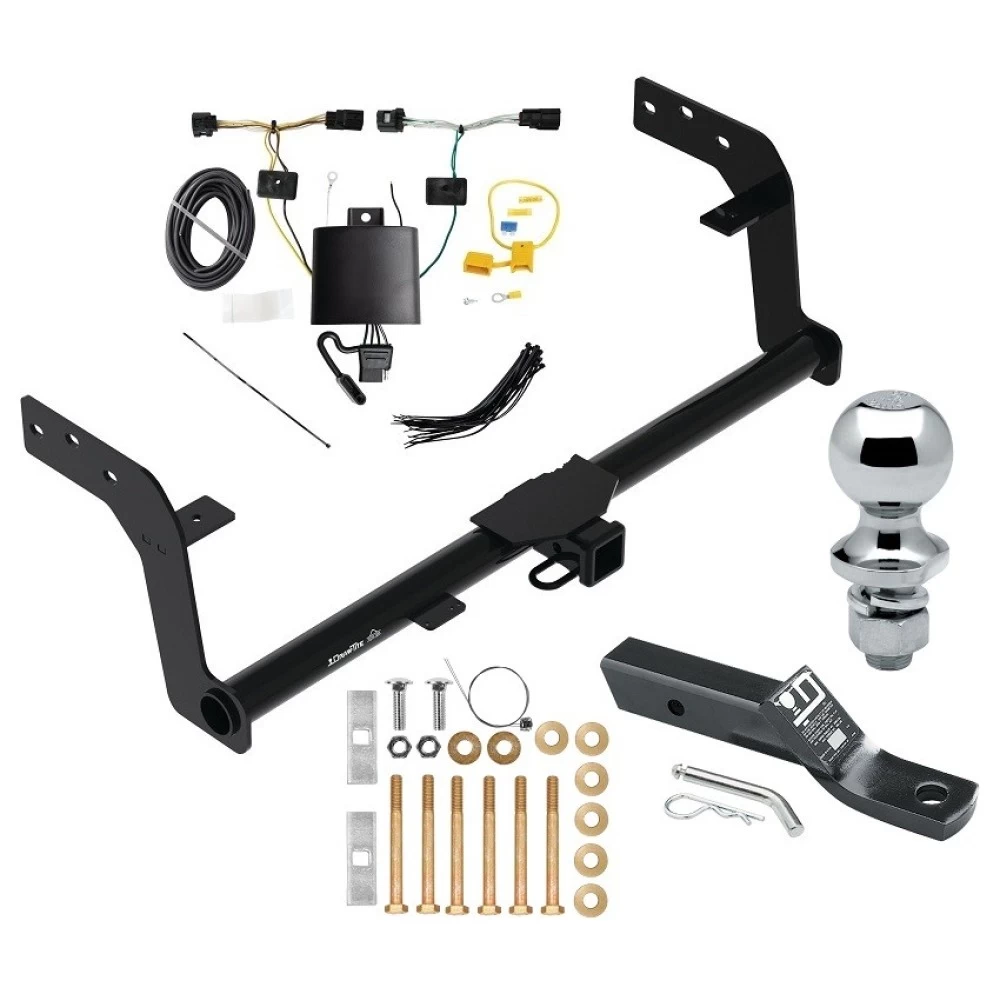

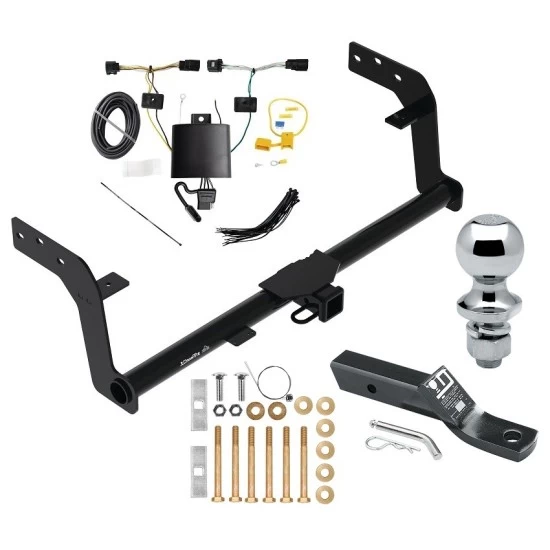

Includes Everything Pictured:

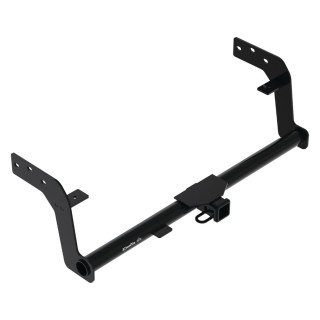

Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions

Fits The Following Vehicles:

2022 - 2025    Genesis, GV70, All Styles



Trailer Hitch Specs:

Part Number 76577
Brand Draw-Tite
Finish Black Powdercoat
Class IV
Receiver size opening 2"
Max gross trailer weight 3,500 lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 525 lbs
Warranty Lifetime
Installation Instructions


   Wiring Kit Specs:

Part Number 118851
Brand Tekonsha
Warranty 1 Year
Installation Instructions


Ball Mount Specs:

Fits 2" x 2" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity 7,500 lb Gross Towing Weight
750 lb Tongue Weight
Drop 2" From inside top of hitch opening
Rise 3/4" from top of inside of hitch opening
Warranty Lifetime


Hitch Ball Specs:

Part Number 63816
Brand Draw-Tite
Size 1-7/8" x 1" x 2-1/8",  torgue to 160 ft. lbs
Towing Capacity 2,000 lbs. GTW
Material Chrome
Torque torgue to 160 ft. lbs
Ball Hole Diameter 1"
Warranty Lifetime

Questions or Comments? Call 702-374-8999

Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive.

Partial list of fitment years: 22 23 24 25 2022 2023 2024 2025
Specification
Attachment Location Rear
Ball Mount Included Yes
Color Black
Drilling Required Yes
Gross Towing Weight 3,500 lbs.
Hitch Class III
Material Steel
Maximum Tongue Weight 525 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Square Tube
