Trailer Tow Hitch For 22-24 Jeep Grand Cherokee 21-24 Grand Cherokee L Class 4 2" Receiver Complete Package w/ Wiring and 1-7/8" Ball
$382.19
- Stock: In Stock
- Brand: Draw-Tite
- Model: 76595 118847 23 63816

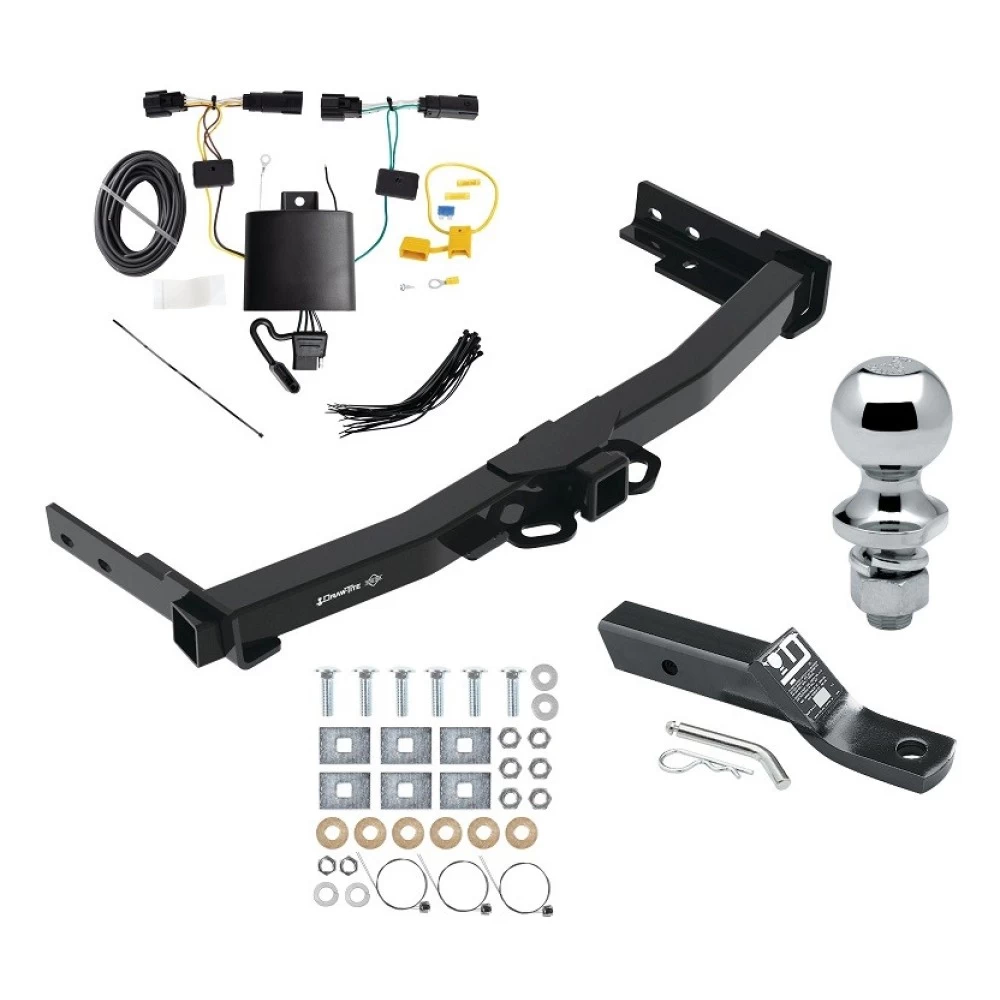

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
2022 - 2024 Jeep, Grand Cherokee, All Styles2021 - 2024 Jeep, Grand Cherokee L, All Styles
Trailer Hitch Specs:
| Part Number | 76595 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | IV |
| Receiver size opening | 2" |
| Max gross trailer weight | 7,500 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 1,125 / 1,125 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118847 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive.
