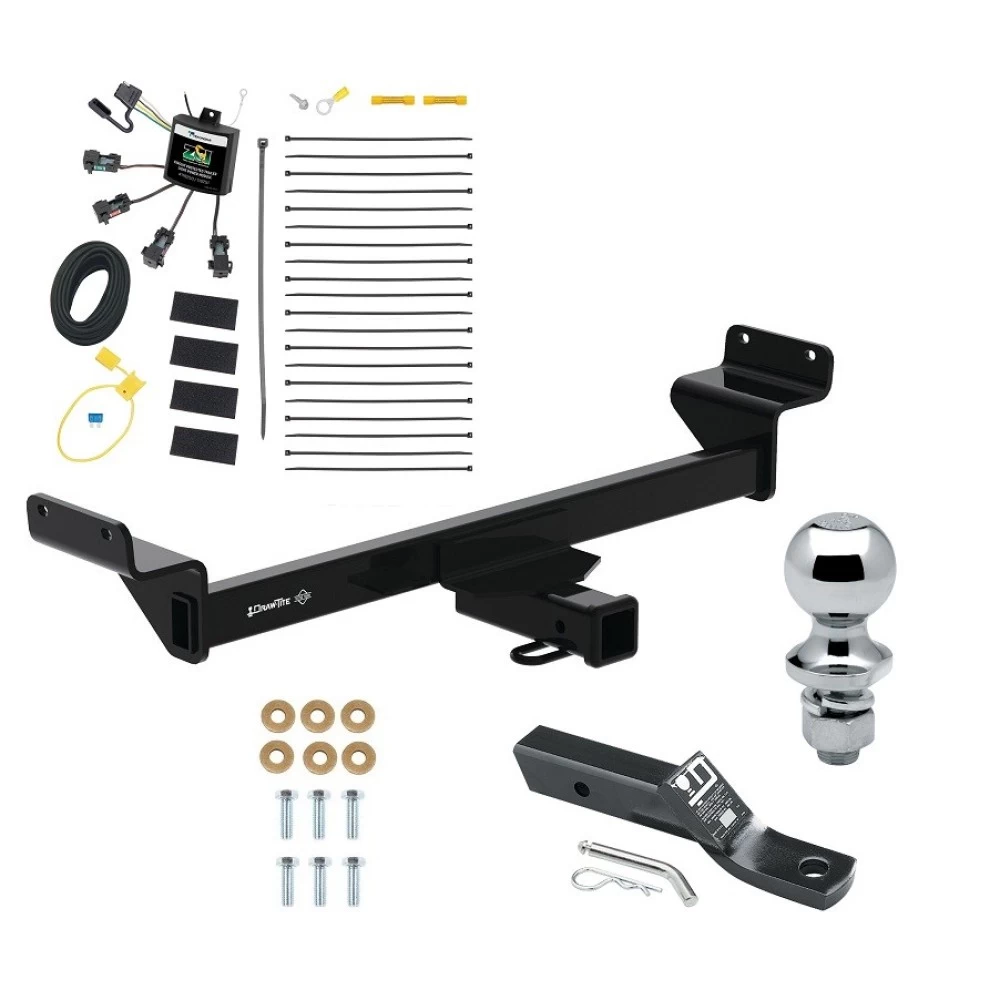

Trailer Tow Hitch For 23-24 KIA Sportage 2" Receiver Class 3 w/ Zero Contact Wiring Harness Kit and 1-7/8" Ball
Model: 76509 119251 23 63816 Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (No Splicing Required)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2023 - 2024 KIA, Sportage, All Styles
Trailer Hitch Specs:
| Part Number | 76509 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 119251 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
ZCI Zero Contact Interface Universal ModuLite& Installation Kit
ZCI sensor technology and direct connection to the tow vehicle battery, eliminates all electrical connection and interference with the tow vehicle electrical system. Vehicles with 12 volt system only.
- NO CUTTING OR SPLICING VEHICLE WIRING!
- Isolates Trailer Light Operation from Tow Vehicle's Electrical System
- Works with 2 or 3 wire systems
- Works with PWM or Multiplexed systems requiring 2 or 3 wire hookup
- Rated for up to 4.2 amps for turn/stop & 7.5 amps for taillight trailer circuits
- Works with low side switched vehicles
- Integrated auto resetting short & overload protection
- Robust design allowsfor interior or exterior mounting
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
