Trailer Tow Hitch For 63-91 Chevy GMC C/K Series Ford F-100 F-250 F-350 International Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Trailer Tow Hitch For 63‑91 Chevy GMC C/K Series Ford F‑100 F‑250 F‑350 International Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Model: 75034 63134 63100

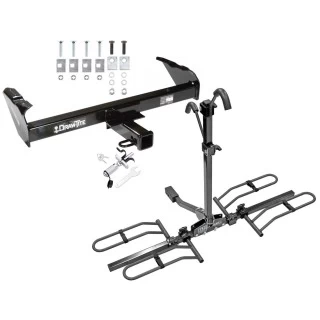

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions

Fits The Following Vehicles

1963 - 1986   Chevrolet, C10, All Styles
1963 - 1986   Chevrolet, C20, All Styles
1963 - 1986   Chevrolet, C30, All Styles
1963 - 1986   Chevrolet, K10, All Styles
1963 - 1986   Chevrolet, K20, All Styles
1963 - 1972   Ford, F-100, All Styles
1963 - 1972   Ford, F-250, All Styles
1963 - 1974   Ford, F-350, All Styles
1963 - 1965   GMC, 1000 Series, All Styles
1963 - 1965   GMC, 1500 Series, All Styles
1963 - 1965   GMC, 2500 Series, All Styles
1963 - 1966   GMC, 3000, All Styles
1963 - 1966   GMC, 3500, All Styles
1967 - 1974   GMC, C15/C1500, All Styles
1967 - 1978   GMC, C25, All Styles
1967 - 1978   GMC, C35, All Styles
1967 - 1974   GMC, K15, All Styles
1967 - 1978   GMC, K25, All Styles
1967 - 1974   GMC, K35, All Styles
1969 - 1970   International, 1000D, All Styles
1969 - 1970   International, 1100D, All Styles
1969 - 1970   International, 1200D, All Styles
1969 - 1970   International, 1300D, All Styles
1969 - 1971   International, 1500D, All Styles
1971 - 1973   International, 1110, All Styles
1971 - 1973   International, 1210, All Styles
1971 - 1973   International, 1310, All Styles
1973 - 1986    Chevrolet, K30, All Styles
1974   International, 100, All Styles
1974 - 1975   International, 150, All Styles
1974 - 1975   International, 200, All Styles
1975 - 1978   GMC, C15, All Styles
1975 - 1978   GMC, K15, All Styles
1977 - 1984   Chevrolet, K30, All Styles
1977 - 1978   GMC, K35, All Styles
1979 - 1984   GMC, C1500, All Styles
1979 - 1984   GMC, C2500, All Styles
1979 - 1984   GMC, C3500, All Styles
1979 - 1984   GMC, K1500, All Styles
1979 - 1984   GMC, K2500, All Styles
1979 - 1984   GMC, K3500, All Styles
1985 - 1986   GMC, C1500, All Styles
1985 - 1986   GMC, C2500, All Styles
1985 - 1986   GMC, C3500All Styles
1985 - 1986   GMC, K1500, All Styles
1985 - 1986   GMC, K2500, All Styles
1985 - 1986   GMC, K3500, All Styles
1988 - 1991   Chevrolet, C2500, Crew Cab
1988 - 1991   Chevrolet, C3500, Crew Cab
1988 - 1991   Chevrolet, K2500, Crew Cab
1988 - 1991   Chevrolet, K3500, Crew Cab
1988 - 1991   GMC, C2500, Crew Cab
1988 - 1991   GMC, C3500, Crew Cab
1988 - 1991   GMC, K3500, Crew Cab

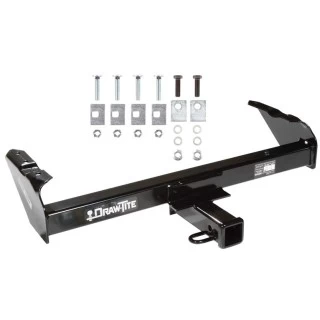

Trailer Hitch Specs:

Part Number	75034
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	8,000 lbs
Max Tongue Weight	500/800 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 1963 1964 1965 1966 1967 1968 1969 1970 1971 1972 1973 1974 1975 1976 1977 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991

See Full Description

$446 ⁴⁸ $716.45 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$716.45 $446 ⁴⁸

Pay in 4 interest-free installments of $111.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $111.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75034 63134 63100
Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	Yes
Gross Towing Weight	5,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	8,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	500 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	800 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	75034
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	8,000 lbs
Max Tongue Weight	500/800 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Tags: 75034 , 63134 , 63100 , Draw-Tite , Trailer , Tow , Hitch , 63-91 , Chevy , GMC , C/K , Seriesd , F-100 , F-250 , F-350 , International , Platform , Style , 2 , Bike , Rack , Anti , Rattle , Hitch , Lock , 63 , 64 , 65 , 66 , 67 , 68 , 69 , 70 , 71 , 72 , 73 , 74 , 75 , 76 , 77 , 78 , 79 , 80 , 81 , 82 , 83 , 84 , 85 , 86 , 87 , 88 , 89 , 90 , 91 , 1963 , 1964 , 1965 , 1966 , 1967 , 1968 , 1969 , 1970 , 1971 , 1972 , 1973 , 1974 , 1975 , 1976 , 1977 , 1978 , 1979 , 1980 , 1981 , 1982 , 1983 , 1984 , 1985 , 1986 , 1987 , 1988 , 1989 , 1990 , 1991

Get Expert Help

Trailer Tow Hitch For 63-91 Chevy GMC C/K Series Ford F-100 F-250 F-350 International Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes

Installation Instructions for Chevrolet & GMC C/K Series, Ford F-Series, and International Pickups

Part Numbers:

75034
44736
87034

Wiring Access Location:

PU1, PU2

Tools Required:

Drill Bits: 1/2"
Wrenches: 3/4", 7/8" (Torque Wrench Required)

Specifications:

Weight Carrying Capacity:
- Max Trailer Weight: 5,000 lbs
- Max Tongue Weight: 500 lbs
Weight Distributing Capacity:
- Max Trailer Weight: 10,000 lbs
- Max Tongue Weight: 1,000 lbs

Step-by-Step Instructions:

Remove Spare Tire:
- Remove the spare tire and carrier from the vehicle.
Remove Exhaust Pipes:
- Disconnect the clamp and drop the exhaust pipes on dual exhaust models.
Prepare Frame Rail:
- Remove undercoating from attachment surfaces.
- Position the receiver on the vehicle and ensure it is centered.
Clear Rivets (For Some Models):
- For some Chevrolet and GMC units with 6’ beds, grind or file the top of the rivet flush to ensure adequate clearance with the hitch.
Drill Holes:
- Use the receiver as a template to drill 1/2" holes into the frame rails.
Install Fasteners:
- Secure the hitch using the provided fasteners, placing blocks between the frame and hitch where necessary. Tighten all bolts to specified torque values.
Reconnect Exhaust Pipes:
- Reconnect the exhaust pipes to the clamp.
Reinstall Spare Tire:
- If retaining under-box tire storage, modify the spare tire carrier as needed to ensure proper fit.

Hardware List:

(6) Carriage Bolt 1/2"-13 x 2-1/4" GR5
(6) Block 1/4" x 1-1/2" x 2"
(6) Lock Washer
(6) Hex Nut

Torque Specifications:

Tighten 1/2"-13 GR5 fasteners to 75 lb-ft.

Safety Notes:

Regularly inspect the hitch and fasteners to ensure secure attachment.
Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Always wear safety glasses when working beneath the vehicle.
Do not cut access or attachment holes with a torch.

Additional Notes:

1981 and Later Chevrolet & GMC with Step Bumpers:
- Remove and retain support brackets for reinstallation if the hitch is removed.
- The step bumper should not be used for towing if the brackets are removed.
Optional J-Pin Locking Stabilizer available for added security (order separately).
