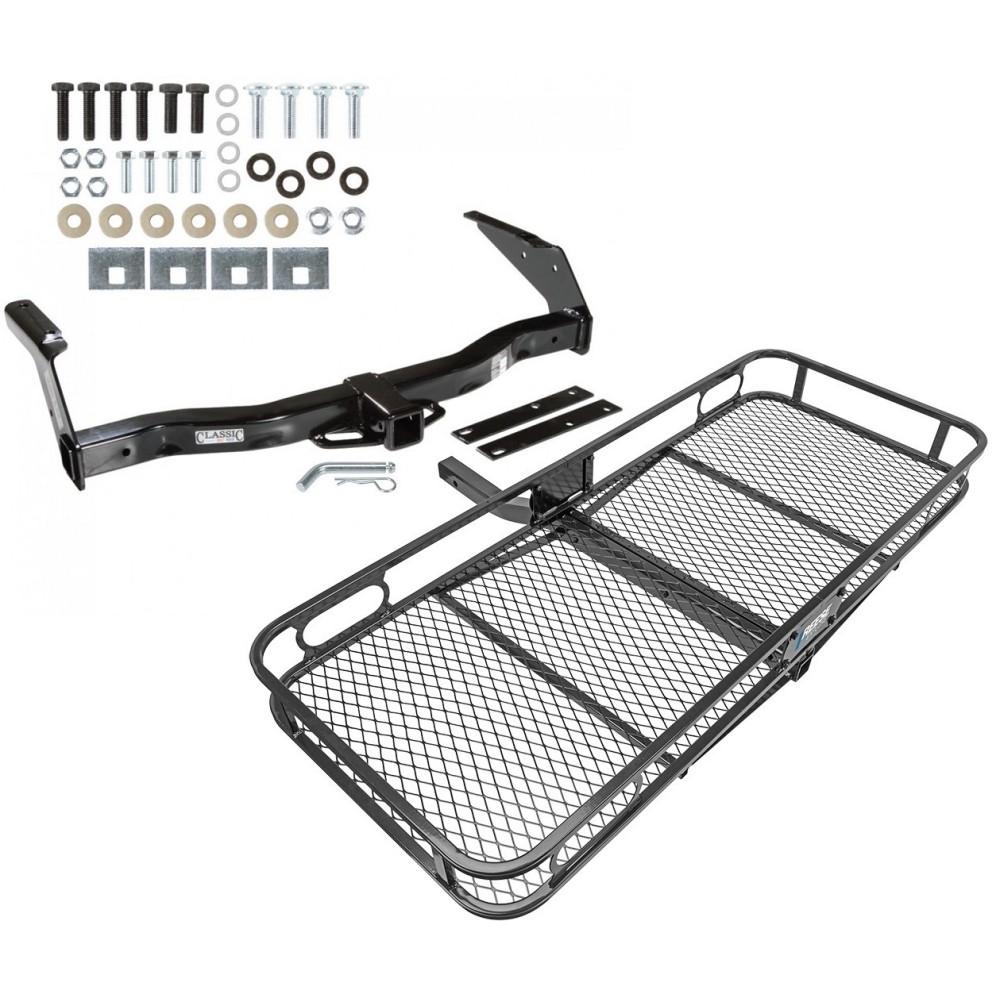

Trailer Tow Hitch For 78‑03 Dodge Ram Van B‑Series Basket Cargo Carrier Platform w/ Hitch Pin
Model: 75140 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1978 - 1980 Dodge, Van, B100, All Styles
1978 - 1980 Dodge, Van, B200, All Styles
1978 - 1980 Dodge, Van, B300, All Styles
1981 - 1994 Dodge, Van, B150, All Styles
1981 - 1994 Dodge, Van, B250, All Styles
1981 - 1994 Dodge, Van, B350, All Styles
1995 - 1998 Dodge, Van, B1500, All Styles
1995 - 1998 Dodge, Van, B2500, All Styles
1995 - 1998 Dodge, Van, B3500, All Styles
1999 - 2003 Dodge, Van, Ram 1500, All Styles
1999 - 2003 Dodge, Van, Ram 2500, All Styles
1999 - 2003 Dodge, Van, Ram 3500, All Styles
Trailer Hitch Specs:
| Part Number | 75140 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 500/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 02 03 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003
$528 19 $846.54 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$846.54 $528 19
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $132.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75140 63153 63240
- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1978 - 1980 Dodge, Van, B100, All Styles
1978 - 1980 Dodge, Van, B200, All Styles
1978 - 1980 Dodge, Van, B300, All Styles
1981 - 1994 Dodge, Van, B150, All Styles
1981 - 1994 Dodge, Van, B250, All Styles
1981 - 1994 Dodge, Van, B350, All Styles
1995 - 1998 Dodge, Van, B1500, All Styles
1995 - 1998 Dodge, Van, B2500, All Styles
1995 - 1998 Dodge, Van, B3500, All Styles
1999 - 2003 Dodge, Van, Ram 1500, All Styles
1999 - 2003 Dodge, Van, Ram 2500, All Styles
1999 - 2003 Dodge, Van, Ram 3500, All Styles
Trailer Hitch Specs:
| Part Number | 75140 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 500/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 02 03 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003
Get Expert Help
Trailer Tow Hitch For 78-03 Dodge Ram Van B-Series Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Dodge Van
Part Numbers:
- 75140
- 87492
Wiring Access Location:
- SUV5
Tools Required:
- Hacksaw
- Pliers
- Wrenches: 5/8", 11/16", 3/4", 7/8"
Specifications:
- Max Gross Trailer Weight:
- Weight Distributing: 10,000 lb. (4,536 kg)
- Weight Carrying: 5,000 lb. (2,268 kg)
- Max Tongue Weight:
- Weight Distributing: 1,000 lb. (454 kg)
- Weight Carrying: 500 lb. (227 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Bumper Bolts:
- Remove two (2) inboard bolts on the bumper mounting bracket (each side). Return the bolts to the vehicle owner.
-
Cut Metal Tabs:
- Use a hacksaw to cut the sheet metal tabs on both sides as indicated. Bend the tabs out of the way to provide clearance for the hitch side brackets.
-
Fishwire Fasteners:
- Use the fishwire method to guide carriage bolts and spacer blocks through the access hole into the frame as shown.
-
Install Hitch:
- Raise the hitch into position between the frame rail and fasteners. Install the remaining fasteners as shown. Ensure the brackets sit flush on the frame.
-
Reinstall Step Bumper:
- Reinstall the step bumper and secure it in its original position.
-
Tighten Fasteners:
- Torque all fasteners to the specified values:
- 1/2"-13 GR5: 75 Lb.-Ft. (102 N*M)
- 1/2"-20 GR5: 55 Lb.-Ft. (75 N*M)
- 7/16"-14 GR5: 50 Lb.-Ft. (68 N*M)
- Torque all fasteners to the specified values:
Hardware List:
- (4) Carriage Bolts: 1/2"-13 x 1-3/4" GR5
- (4) Spacer Blocks: 1/4" x 1-1/2" x 2"
- (4) Hardened Flat Washers
- (4) Lock Washers
- (4) Hex Nuts: 1/2"-13 GR5
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
